84

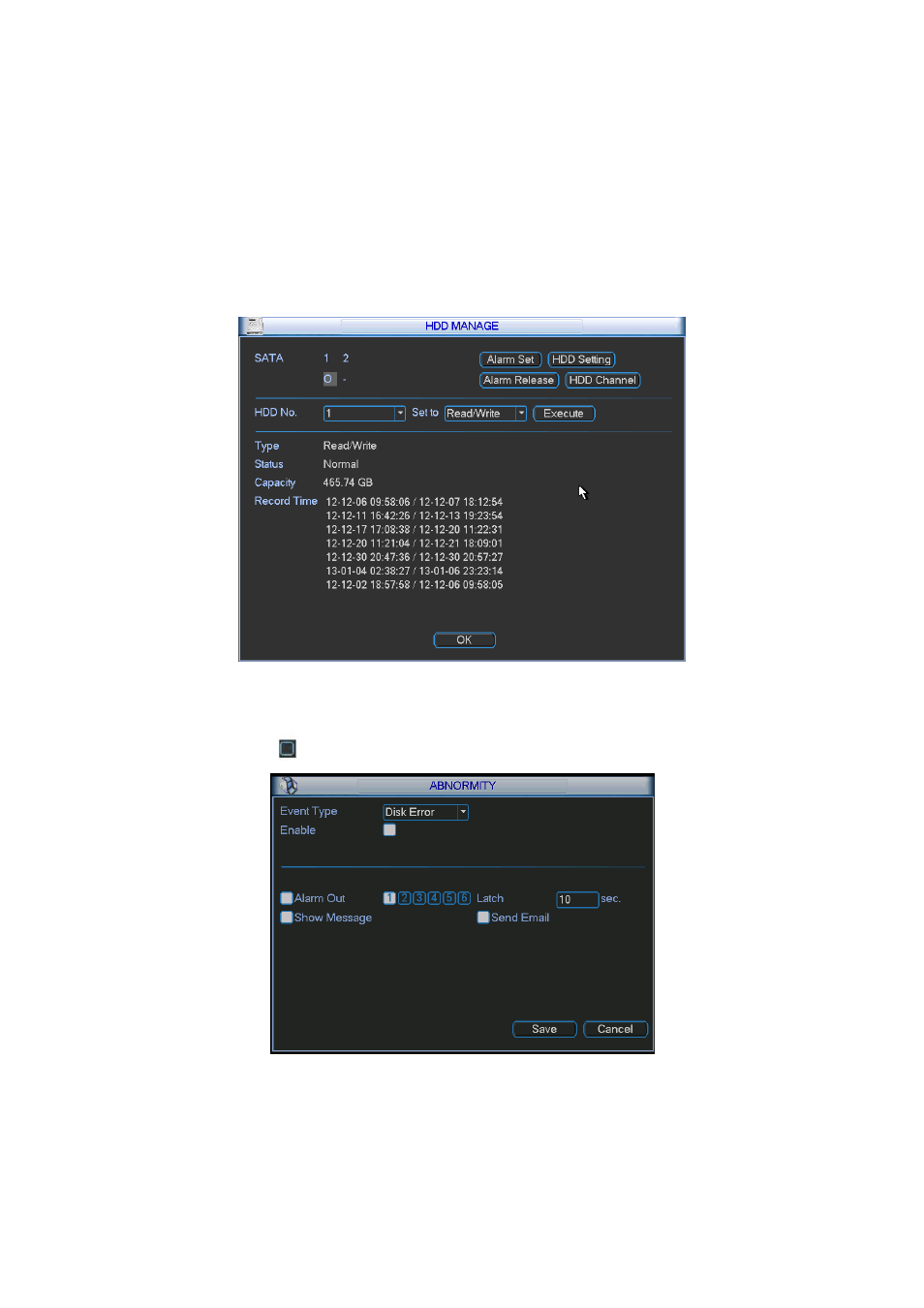

Here is for you to view and implement hard disk management. See Figure 5-45.
You can see current HDD type, status, capacity and record time. When HDD is working properly,
system is shown as O. When HDD error occurred, system is shown as X.
z
Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-46. (This
interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed
information.
z HDD operation: You can select HDD mode from the dropdown list such as read-only or you
can erase all data in the HDD. Please note system needs to reboot to get all the modification
activated.
Figure 5-45
Please highlight icon to select the corresponding function.
Figure 5-46
For the HDD group setup operation, please note:
z
Each channel’s records can be stored into the specified HDD Group.
z Each HDD Group is corresponding to several hard disks, while one hard disk is only
included in one HDD Group.
