50

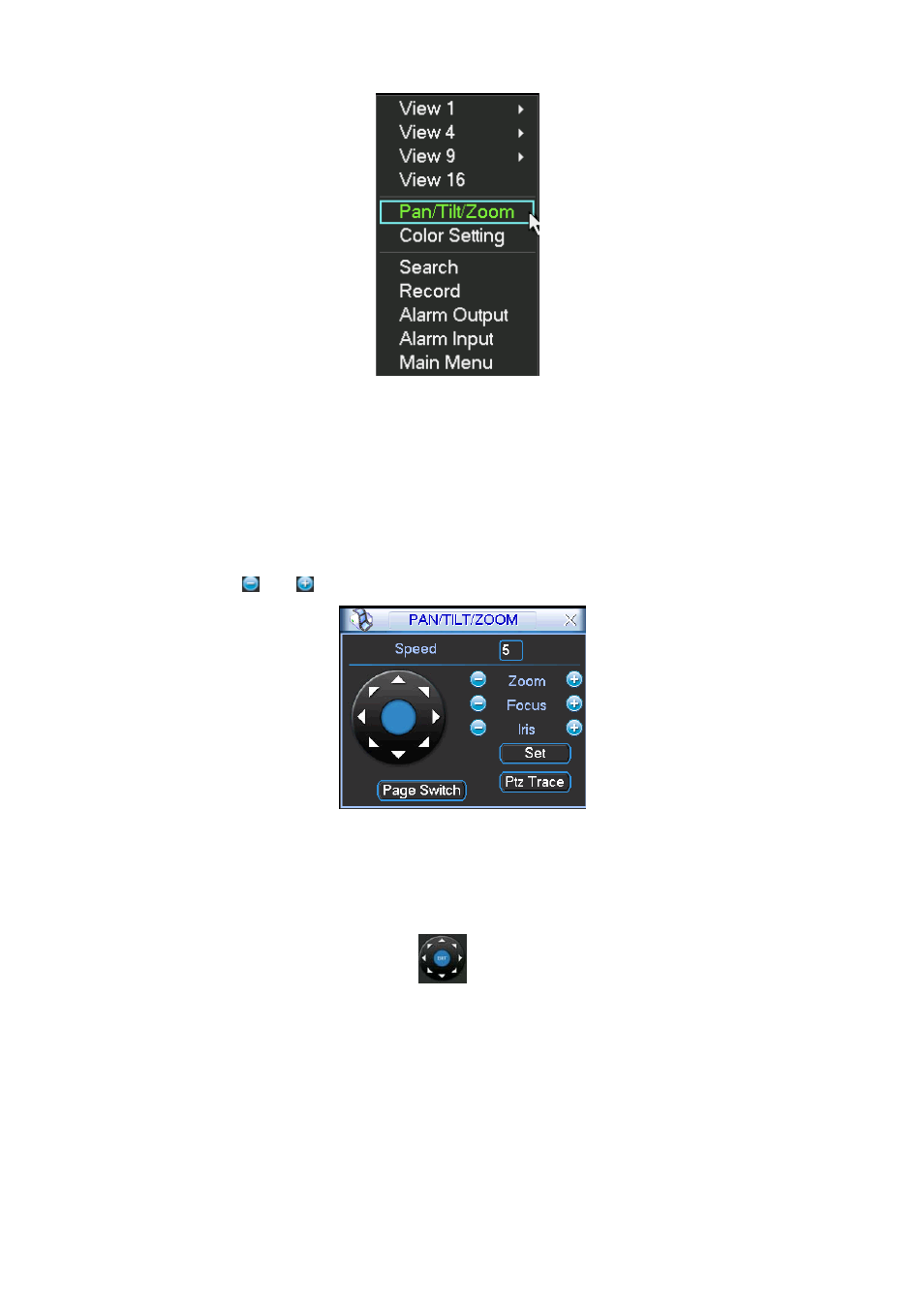

Figure 4-42
Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-43.
Here you can set the following items:
z
Step: value ranges fro 1 to 8.
z Zoom
z Focus
z Iris
Please click icon and to adjust zoom, focus and iris.
Figure 4-43
In Figure 4-43, please click direction arrows (See Figure 4-44) to adjust PTZ position. There are
total 8 direction arrows.
Figure 4-44
4.8.3 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. SeeFigure
4-45.
X
Please make sure your protocol supports this function and you need to use mouse to
control.
