IC Realtime Max Series: 4/8/16 Channel D1 1.5U Standalone DVR User Manual
Page 135
125
Figure 7-28
7.8.2.4.2 Mobile

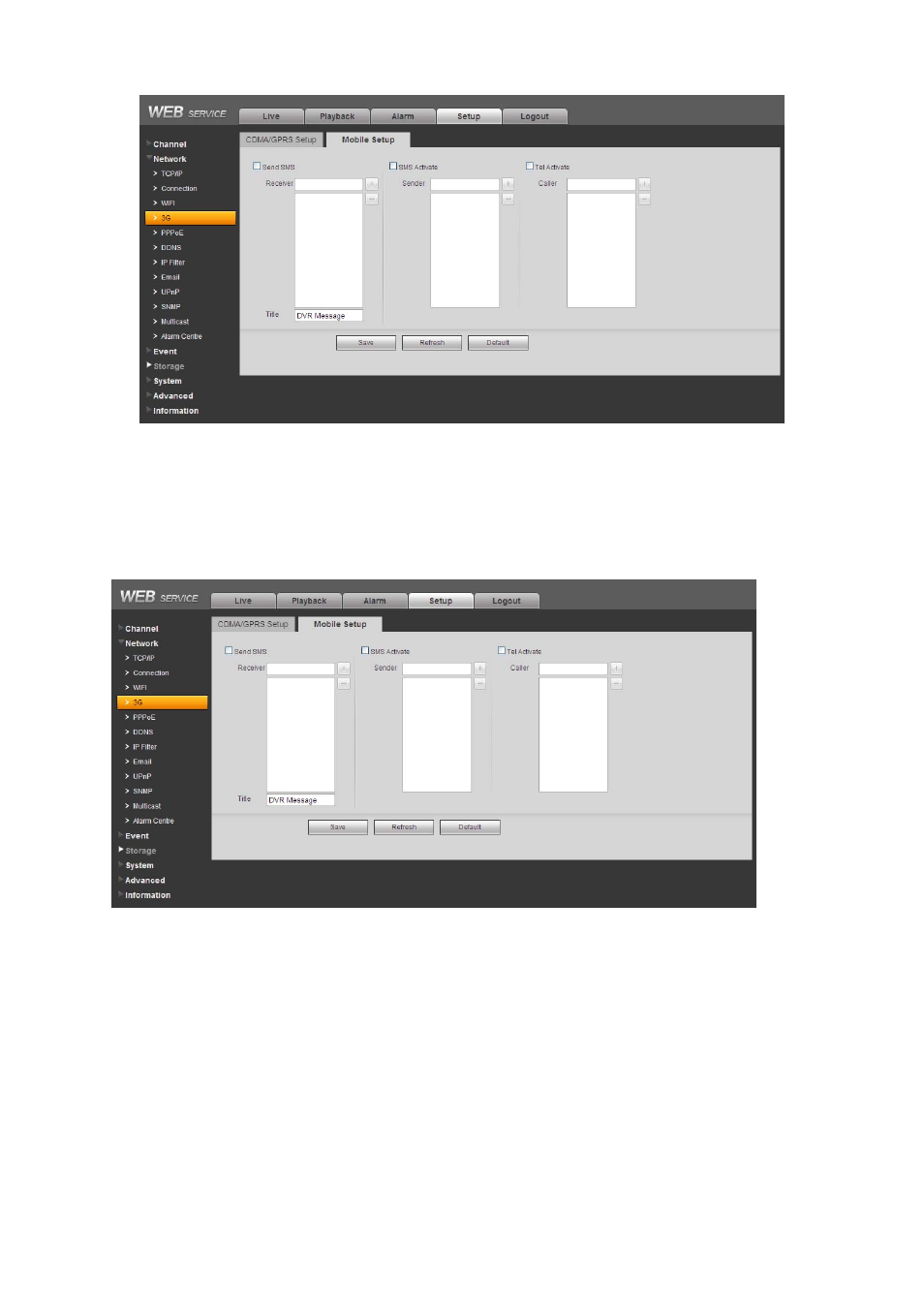

The mobile setup interface is shown as in Figure 7-29.
Here you can activate or turn off the 3G connected phone or mobile phone, or the phone you set
to get alarm message.
Figure 7-29
7.8.2.5 PPPoE
The PPPoE interface is shown as in Figure 7-30.
Input the PPPoE user name and password you get from the IPS (internet service provider) and
enable PPPoE function. Please save current setup and then reboot the device to get the setup
activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN
from the IP address column.
Please note, you need to use previous IP address in the LAN to login the device. Please
go to the IP address item to via the device current device information. You can access the
client-end via this new address.
