IC Realtime Max Series: 4/8/16 Channel D1 1.5U Standalone DVR User Manual
Page 46
36
Playback or search in the redundant disk.
There are two ways for you to playback or search in the redundant disk.
z
Set redundant disk(s) as read-only disk or read-write disk (Main menu->Advanced->HDD
management). See Figure 4-21.System needs to reboot to get setup activated. Now you can
search or playback file in redundant disk.
z
Dismantle the disk and play it in another PC.
4.5.2 Snapshot
4.5.2.1 Schedule Snapshot
In Encode interface, click snapshot button to input snapshot mode, size, quality and
frequency. See the interface on the left of Figure 4-22.
In FTP (Main Menu->Network->Network Setting) interface, please input upload interval. See
the interface in the middle of Figure 4-22.
In Schedule interface, please enable snapshot function. See interface on the right of Figure
4-22.
Please refer to the following figure for detailed information. See Figure 4-22.

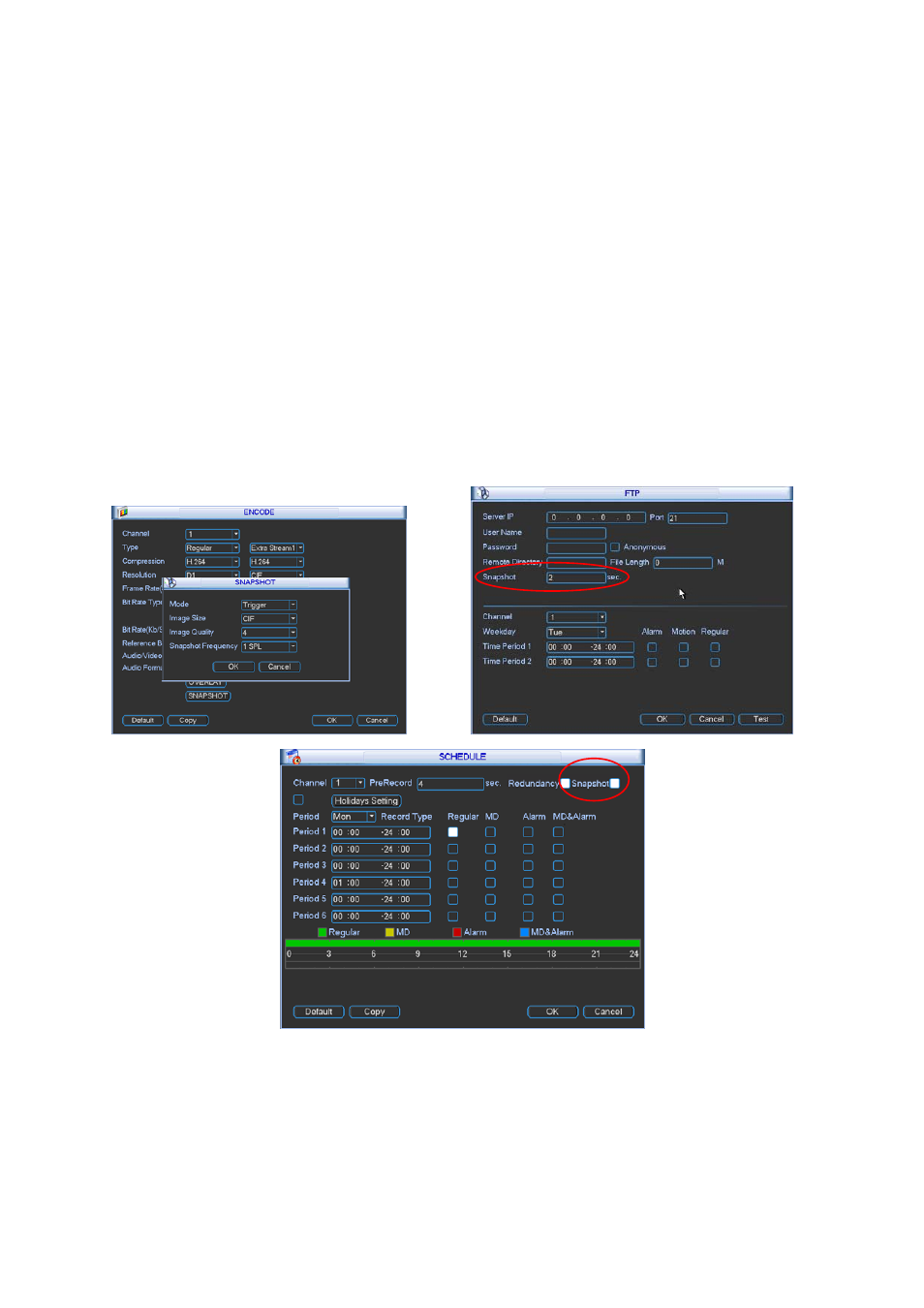

Figure 4-22
4.5.2.2 Activation Snapshot
Please follow the steps listed below to enable the activation snapshot function. After you
enabled this function, system can snapshot when the corresponding alarm occurred.
z
In Encode interface, click snapshot button to input snapshot mode, size, quality and
frequency. See the interface on the left of Figure 4-23.
