IC Realtime Max Series: 4/8/16 Channel D1 1.5U Standalone DVR User Manual
Page 81
71
External
port：Port that has been mapped locally.
z
Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.
z
Add to the list: Click it to add the mapping relationship.
z
Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See Figure 5-24.
Important:
When you are setting the router external port, please use 1024~5000 port. Do not use well-
known port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, please make sure the internal port and external port are the same to
guarantee the proper data transmission.

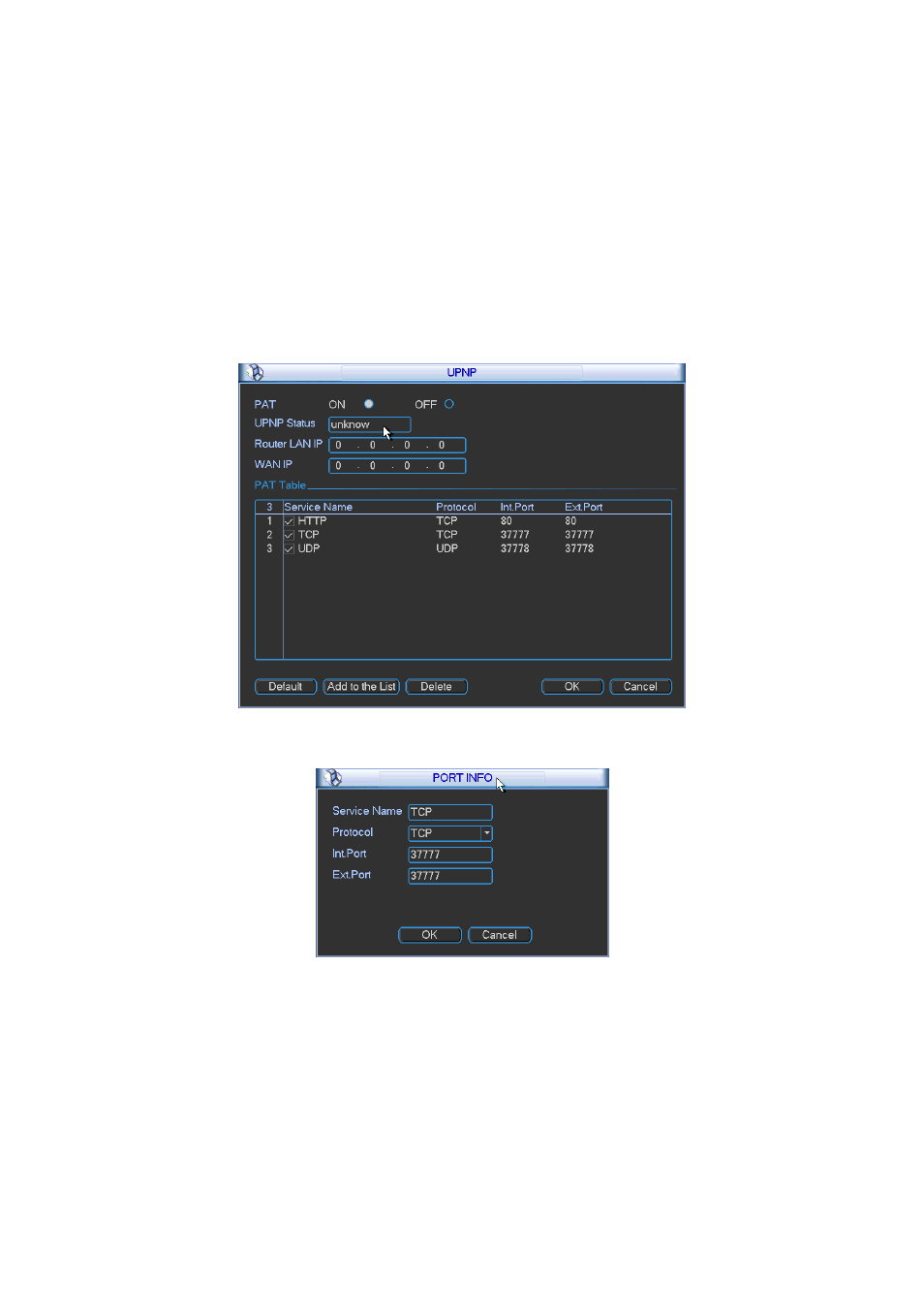

Figure 5-23
Figure 5-24
5.3.5.8 WIFI
You can view the WIFI connection status in the Network Setting interface. See Figure 5-25.
You can view current connection status and IP address if there is a connection.
