IC Realtime Max Series: 4/8/16 Channel D1 1.5U Standalone DVR User Manual
Page 142
132

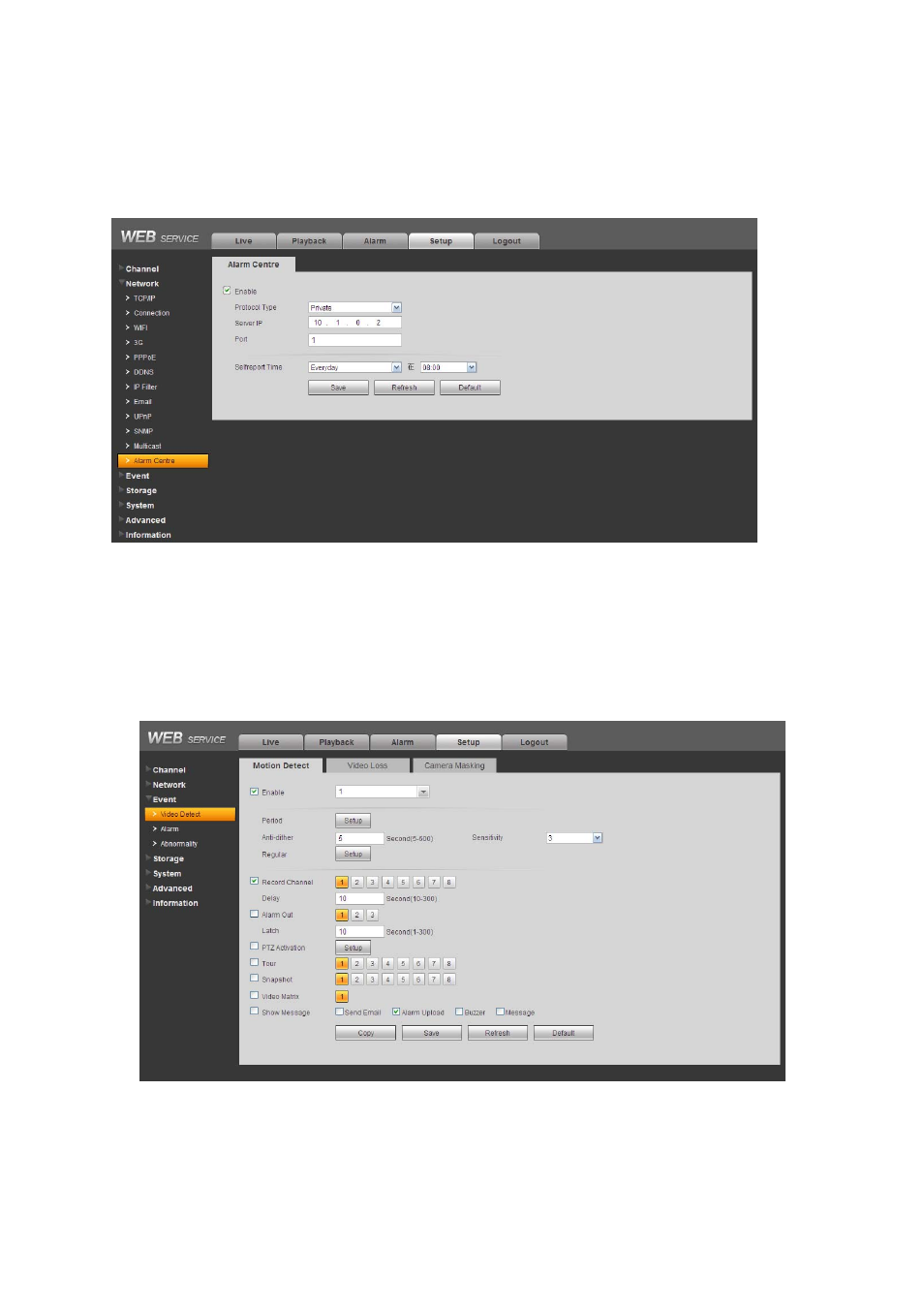

The alarm centre interface is shown as below. See Figure 7-37.
This interface is reserved for you to develop. System can upload alarm signal to the alarm centre
when local alarm occurs.
Before you use alarm centre, please set server IP, port and etc. When an alarm occurs, system
can send out data as the protocol defined, so the client-end can get the data.
Figure 7-37
7.8.3 Event
7.8.3.1 Video detect
7.8.3.1.1 Motion Detect
The motion detect interface is shown as in Figure 7-38.
Figure 7-38
