There are various ways for connecting a computer to the RSS-10 as follows;
To connect directly with a Macintosh computer
Macintosh
SERIAL PORT
Serial Port Switch : MaC \
I RSS-10
RSS-10
MODEM PORT
OR
PRINTER PORT
[ MIDI OUT
1 MIDI IN

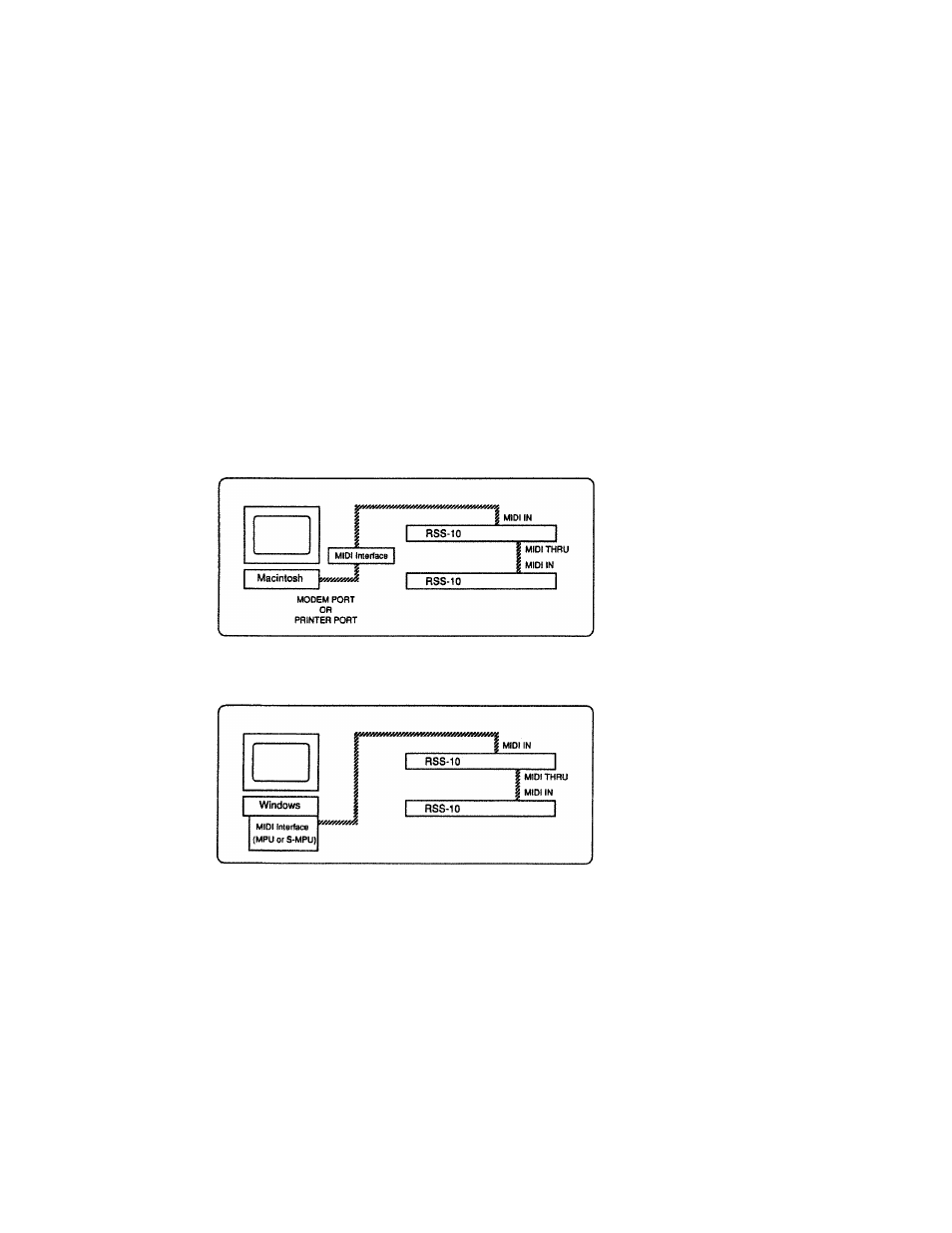

To connect the Macintosh via a MIDI Interface
This type of connection is used for synchronizing to a video device with time code. The MIDI
interface to be used for this connection should support the use of SMPTE time code.
To connect a Windows computer
For this connection, you need a MIDI processing unit of the Roland MPU Series or S-MPU series.
You need the S-MPU for synchronization to a video device with time code.
