HOW TO OPERATE THE RSS-10 USING THE MCR-8

By connecting the Multi Controller MCR-8 (optional) to the RSS-10, the RSS-10 can be controlled using the MCR-8. To use
the MCR-8, read the following explanation carefully.

The RSS-10 comes with a Template that shows how the controller of the MCR-8 correspond to the parameters of the

RSS-10. You can put the Template on the MCR-8.

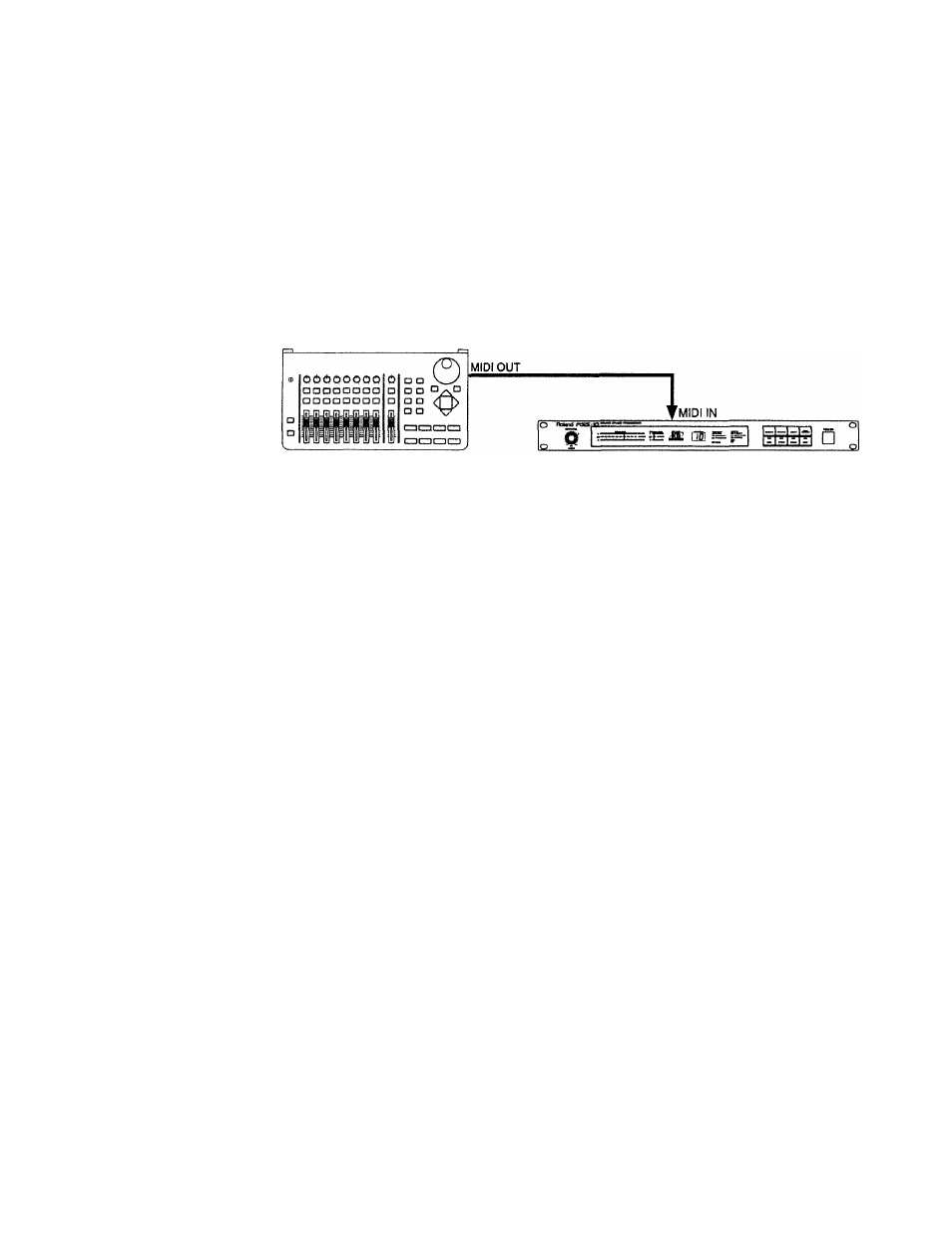

Setting up the MCR-8

To set up the MCR-8 to the RSS-10, do as follows:

Initial Settings

To control the RSS-10 from the MCR-8, set each device as follows:

Initial Settings for the RSS-10

Function Mode Setting

Set the Function Mode on the RSS-10 to "MCR-8 Mode."

* You do not need to change the Serial Port Switch and Baud Rate.

Initial Settings for the MCR-8

Setting the Computer Switch

Set the Computer Switch on the MCR-8 to "MIDI."

Setting the Mode Switch

Set the Mode Switch on the MCR-8 to "MODE 4."
