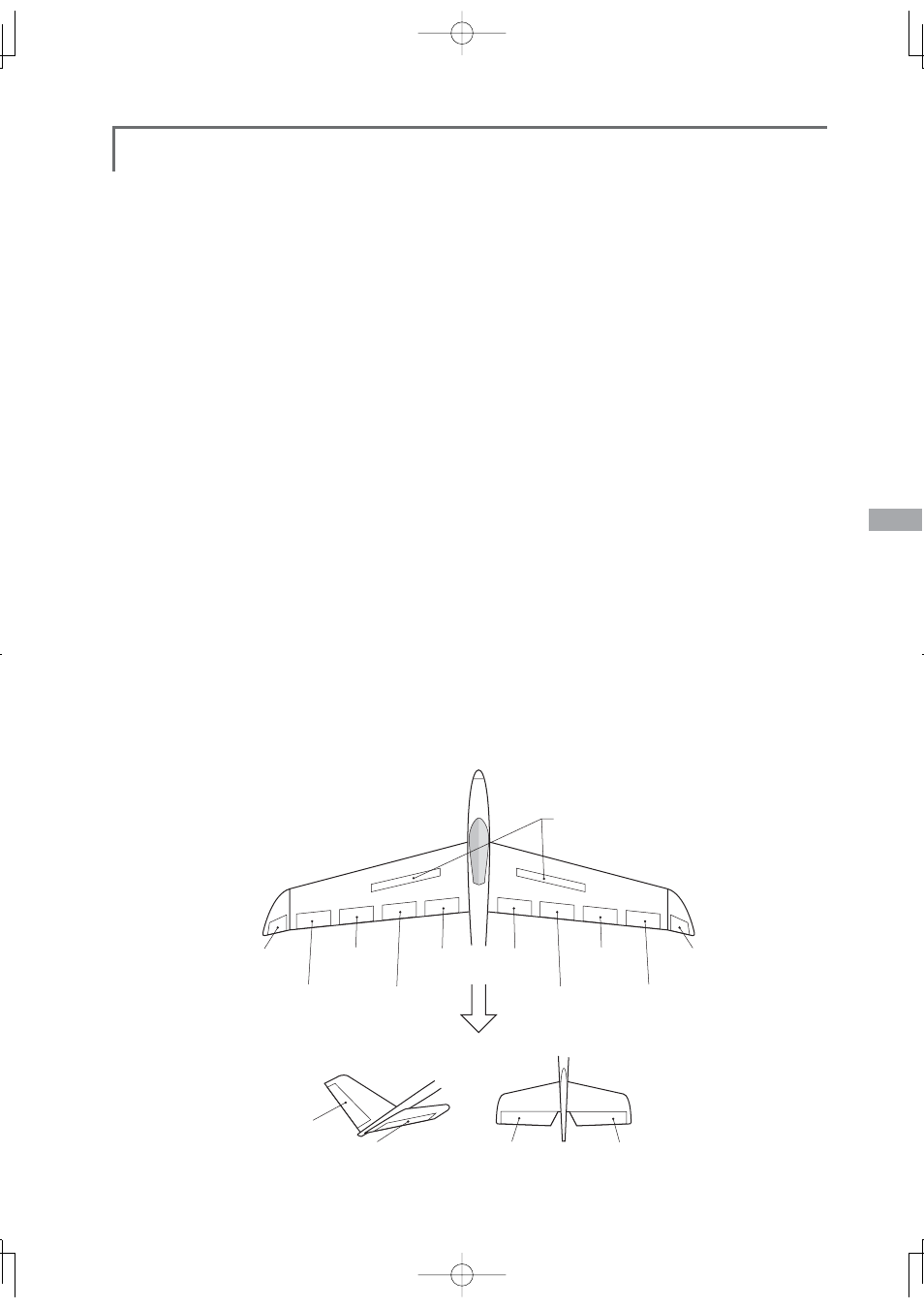

AIR BRAKE
AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
ELEVATOR
(ELEVATOR 2)
V-TAIL AILVATOR
FLP 3
(Brake Flap)
FLP 4
(Brake Flap)
RUDDER 2
Winglet
RUDDER 1
RUDDER
(RUDDER 2)
Winglet
at Flying wing at Flying wing
( ) ( )
ELEVATOR ELEVATOR 2
(AILERON 5) (AILERON 6)
RUD to AIL
This mix is used to correct roll maneuvers,
knife edge, etc. of stunt planes. [Airplane/glider,
general]
CAMBER Mix
This mix adjusts the camber and corrects the
elevators. [Airplane/glider, 2 ailerons or more]
ELE to CAMBER
This mix is used when you want to the mix camber
ÁDSVZLWKHOHYDWRURSHUDWLRQ/LIWLQJIRUFHFDQ
be increased at elevators up. [Airplane/glider, 2
ailerons or more]
CAMBERFLP to ELE
This mix is used to correct for attitude changes when
WKHFDPEHUÁDSVDUHEHLQJXVHG>$LUSODQHJOLGHU
DLOHURQVÁDSRUPRUH@
BUTTERFLY (Crow)
This function is used when powerful brake operation
is necessary. [Glider, 2 ailerons or more]
TRIM MIX 1/2
7KHDLOHURQVHOHYDWRUVDQGÁDSVWULPRIIVHWUDWHFDQ
be called by switch or condition selection. [Glider, 2
ailerons or more]
AIRBRAKE
This function is used when airbrakes are necessary
ZKHQODQGLQJRUZKHQGLYLQJHWFGXULQJÁLJKW
(Airplane, general)
GYRO
7KLVLVDGHGLFDWHGPL[ZKHQD*<$6HULHVJ\URLV
used. [Airplane/glider, general]
V-TAIL
This function adjusts the elevators and rudder of
9WDLOPRGHOV>$LUSODQHJOLGHU9WDLOVSHFLÀFDWLRQV@
AILEVATOR
This function adjusts the elevators and ailerons of
PRGHOVZLWKHOHYDWRUVSHFLÀFDWLRQV>$LUSODQH
JOLGHUHOHYDWRUVSHFLÀFDWLRQV@
WINGLET
This function adjusts the left and right rudders
of winglet models. [Airplane/glider, winglet
VSHFLÀFDWLRQV@
MOTOR
The operation speed when the motor of F5B and
other EP gliders is started by switch can be set. [EP
glider, general]
RUD to ELE
This function is used to correct roll maneuvers, knife
edge, etc. of stunt planes. [Airplane, general]
SNAP ROLL
This function selects the snap roll switch and adjusts
WKHVWHHULQJDQJOHRIHDFKUXGGHU6HUYRVSHHGFDQ
also be adjusted. [Airplane general]
MULTI ENGINE
This function adjusts the throttles independently
when using a multi engine model. (Maximum 4
engines) [Airplane, general]
