15

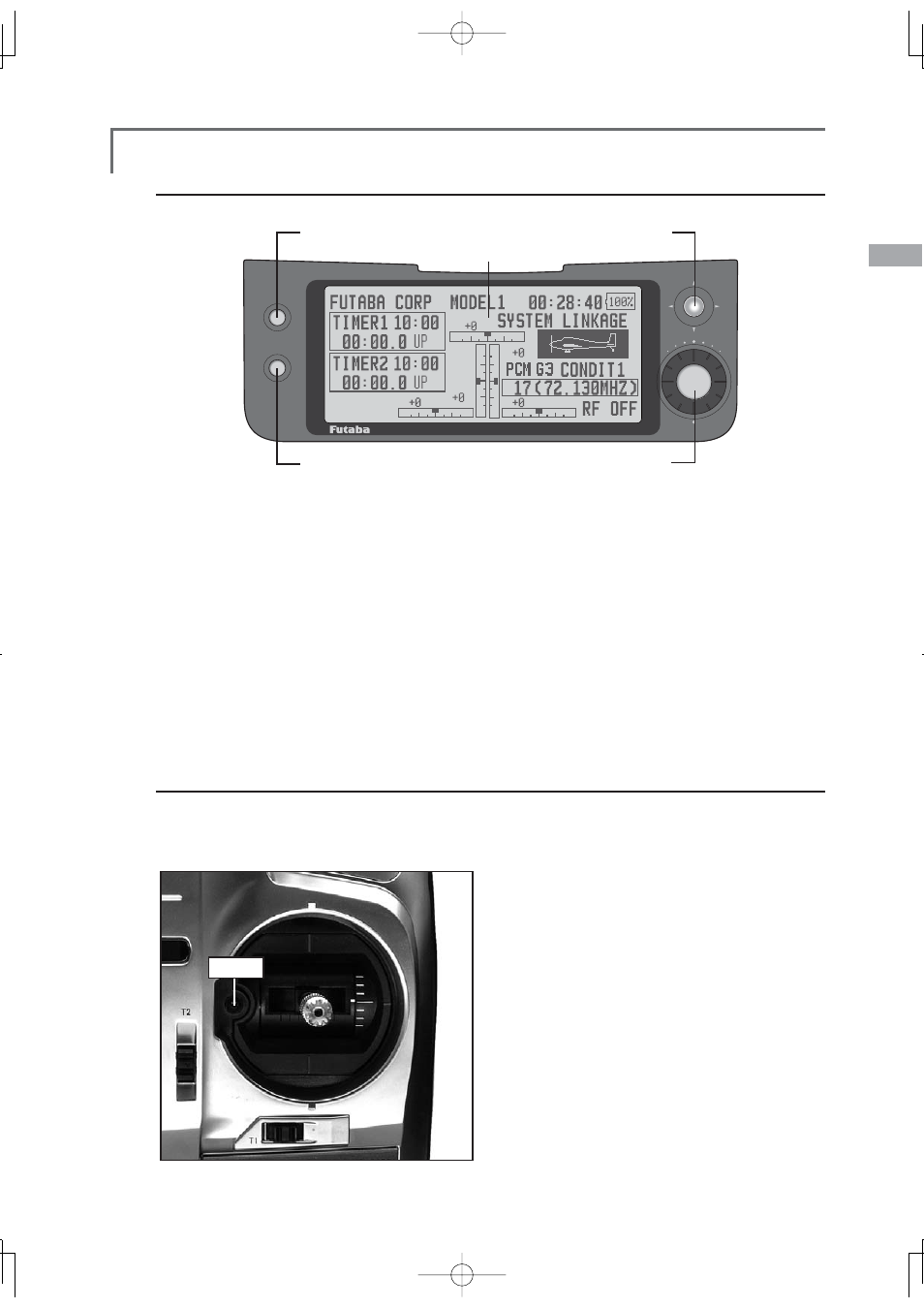

LCD screen:
7KH /&' VFUHHQ FRQWUDVW FDQ EH DGMXVWHG E\
system menu screen setting [DISPLAY].
Return key:
Push the return key (HOME) when you want
to return directly to the home screen and push the
return key (RETURN) when you want to return to
the preceding screen.
Cursor lever:
The cursor lever controls movement of the cursor
on menu screens and movement of the cursor
among setting items on setup screens. Up, down,
left, and right movements are possible.
Push the cursor lever when you want to go
directly to the next page (if there is next page.)
Data input dial/enter button
This dial/button is used during data input. Value
input, mode selection, and similar operations can be
performed by turning the dial to the left and right.
This dial/button can also be used as the enter
button when a confirmation message is displayed
on the screen, etc.
Edit Key
Data input operation is performed using the cursor lever, data input dial/enter button, and return key.
HOME
CURSOR
DATA
RETURN
DIGITAL PROPORTIONAL RADIO CONTROL SYSTEM
PUSH
Ɣ5HWXUQNH\+20( Ɣ&XUVRU&85625
Ɣ'DWDLQSXWGLDO(QWHUEXWWRQ
'$7$
Ɣ/&'VFUHHQ
Ɣ5HWXUQNH\5(7851
Stick Adjustment
Use the attached 1.5mm hexagonal wrench
WR WXUQ WKH VFUHZ FORFNZLVH WR DGMXVW WKH VWLFN
outwards, or counter-clockwise to tilt it inward.
Note: The screw will fall out if you turn the screw counter-
clockwise too far.
Adjustment of the stick lever angle
stick lever outwards from the initial position.
Ɣ6FUHZ
