23
How to turn ON/OFF the power of the
transmitter
For safety reasons, the radio will be emmiting
only after confirming when turning on the power.
Please follow the instructions for turning on/off the
transmitter.
When turning on the power of the transmitter
1. Turn on the power switch of the transmitter.

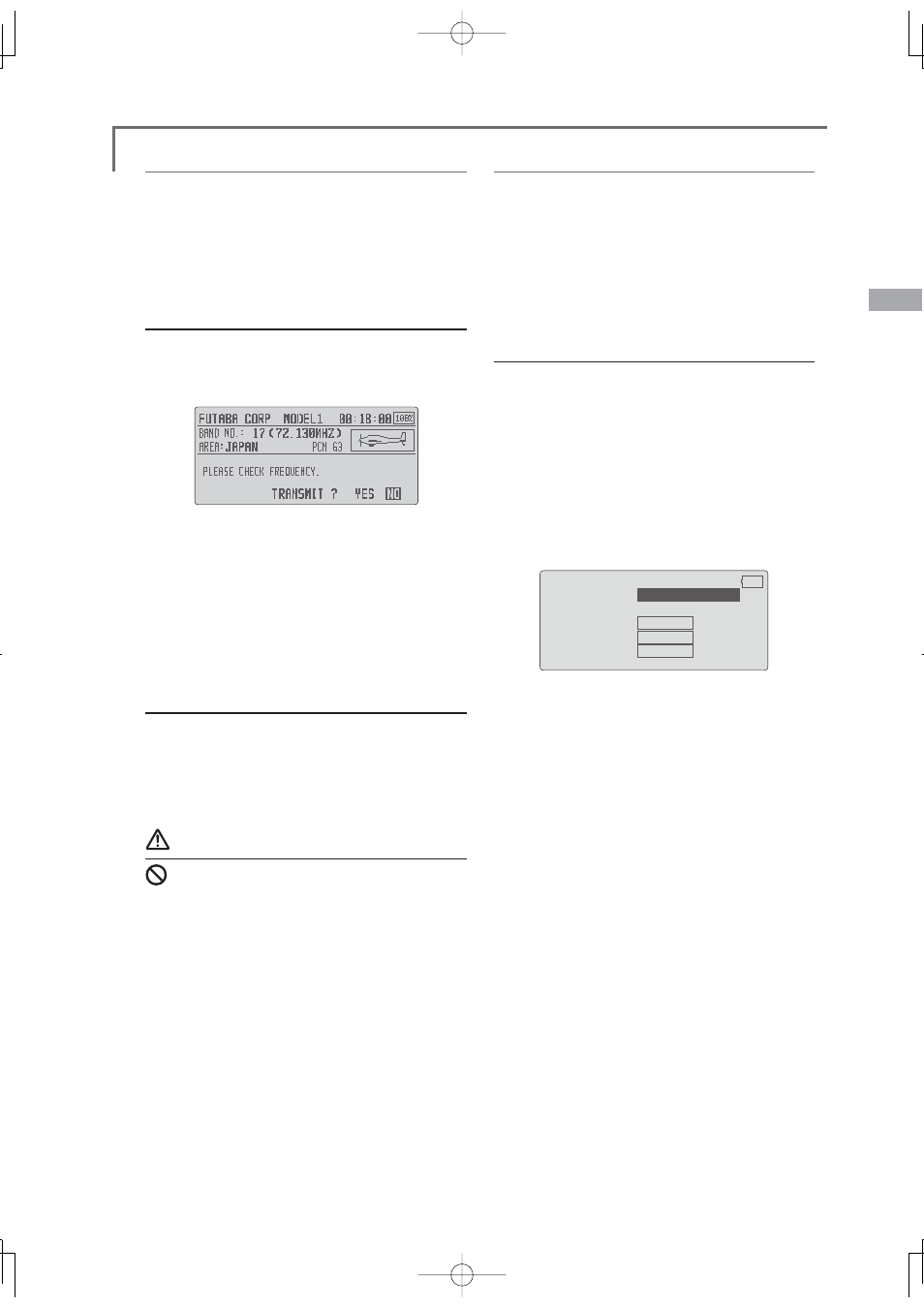

*After initialization of the transmitter is over, the frequency
confirmation screen pops up, and LED monitor turns on
pink.
2. Check the frequency shown on the screen. If
it is OK, then select [YES] and push the enter
button.
*LED monitor turns to green and the transmitter begins to
emit radio waves.
*To not transmit, select [NO] and push enter button.
Then, you will see the home screen and you
will be able to set conditions.
How to stop the transmitter
Turn off the power switch of the transmitter. The
internal circuit of the transmitter starts the shut
down process including saving the set-up data. The
LED will blink yellow while the transmitter is in
the shutdown process.
Warning
Once you turn off the power, never operate the
power switch until the power shutdown process
is fully completed. If you turn on the power
switch again while the transmitter is still in the
process of power shutdown, the transmitter
power does not start.
How to change the frequency/How to set ID
The T12Z system has employed the frequency
synthesizer scheme. The T12Z transmitter will set
the frequency of the R5014DPS (PCMG3 receiver)
by the wireless data transmission. When you are
using a new PCMG3 receiver and changing the
frequency, set ID or frequency using the following
instructions.
In case of using PCMG3 receivers
*Make sure that PCM-G3 is set as a modulation scheme.
Then change the frequency by the following instruction.
How to change the frequency
7XUQRQWKHWUDQVPLWWHUSRZHU$FRQÀUPDWLRQ
message ("TRANSMIT?") is displayed. Since
you do not want to transmit, select [NO] and
then push the enter button.
2. Select the area that displays the frequency
on the home screen or in the linkage menu
and push the enter button.
*The frequency setup screen appears.
﷈ﶰ﷊ﶲﶪ﷊ﶸ﷎ﶢ ﴶﴸﴸﳜ
﷐﷒ﶸ﷌ ﵺ ﶸﶶﵾﶈ﷈ﶰ﷊ﶲﵾ﷎ﷄﶆﶞ ﻚ ｄＸ ﻚ ﻨＸｂﻞｄ｀ｆ：Ｄ＀ﻦ
Ｘｂ：Ｄ＀
ﶺﶶ﷌ﶪﶼ﷒ﶬﷂﶶﶸ ﵺﵺﵺﵺﵺﵺﵺ ﶞ
ﶰ﷊﷎﷊ﷂﶨ﷊ﶰ ﵺ ﷂ﷌ ﵺﵺﵺﵺﵺﵺ ﶞ
﷈ﶰ﷊ﶲﵾ﷐﷒ﶸ﷌ﶞﵼ ﵺ ﷒ﶰ﷊﷒ ﵺ ﶞ
﷢ﶸ﷌ ﵺ ﶰ﷊﷎﷊ﷂﶨ﷊ﶰ ﵺ ﷂ﷌ ﵺﵺ ﶞ
＠Ｒ４Ｒ８
４Ｎ： ﻚ Ｆ｀
ｆｆｆｆｄｆｆｄ
８６
ﻚ ＊．Ｊ
ﶺﶶ﷌﷊ﶼ﷤ ﷎ﶶﶸ﷌ﷂﶬ﷤ ﴶﴸﳰﴶﴸﳰﴸﴸ
3. Select [RECEIVER ID] and push the enter
button.
*The receiver ID code input screen appears.
4. Input the 8-digit ID code stuck to the receiver
case. If the inputted ID code is correct, select
[ENTER] and then push the enter button.
6HOHFWWKH¿JXUHZLWKWKHFXUVRUNH\DQGSXVKWKHHQWHUNH\
for each digit.
*Use [BACK SPACE] to move back digit by digit for
correction if you made a mistake. When you want to stop
ID code change, push the return key to return to the original
screen.
*Once the receiver ID code is set, it does not have to be reset
as long as the receiver is not changed.
*When you use two receivers with a large aircraft, input the
ID of each receiver.
5. When switching the frequency, select [BAND
NO.] and push the enter button.
*The frequencies which can be selected appear on the screen.
6. Select the frequency you want to use and
push the enter button.
$FRQ¿UPDWLRQPHVVDJHDSSHDUV
*When changing the frequency band, change the module
before turning on the power.
7. If the frequency is correct, push the enter
button.
*A screen which shows that frequency data is being sent
