FloAire STAGED ELECTRIC HEAT MODULE - Manual (Page 7)

7

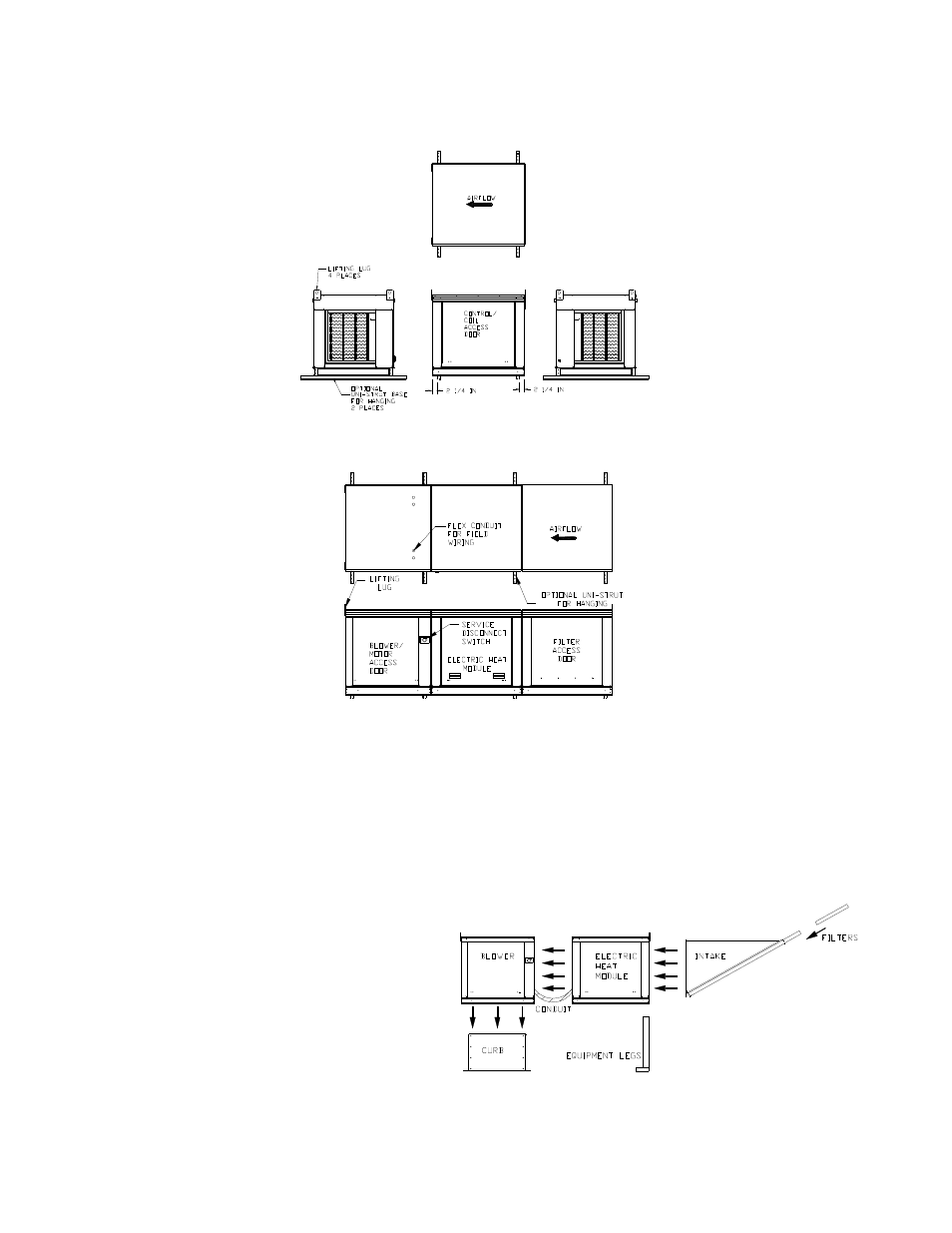

Duct Mount Installation
Indoor (INLINE) Installation
Heat Module Add-On Installation
Modular heat units shipped to add heat onto existing blower only applications require field mechanical
and wiring installation.
1. Remove existing filter intake and lifting lugs from blower section intake side.
2. Attach heat module to blower intake using the provided sheet metal screws and bolts. Tighten
screws and bolts securely to compress the gasket between the heat module and the blower
module.
3. Support and level the end of the heat
module (end opposite the blower) with
the provided equipment legs/rails.
4. Attach the filter hood to the intake side
of the heater module.
5. Drill a hole in the discharge of the
blower large enough to insert the
discharge
control thermostat (if
provided). Install the sensor in the
drilled hole.
6. Wire the sensor and coil as indicated
on the supplied wiring schematic. Run
all wiring within metal conduit.
