INSTALLATION

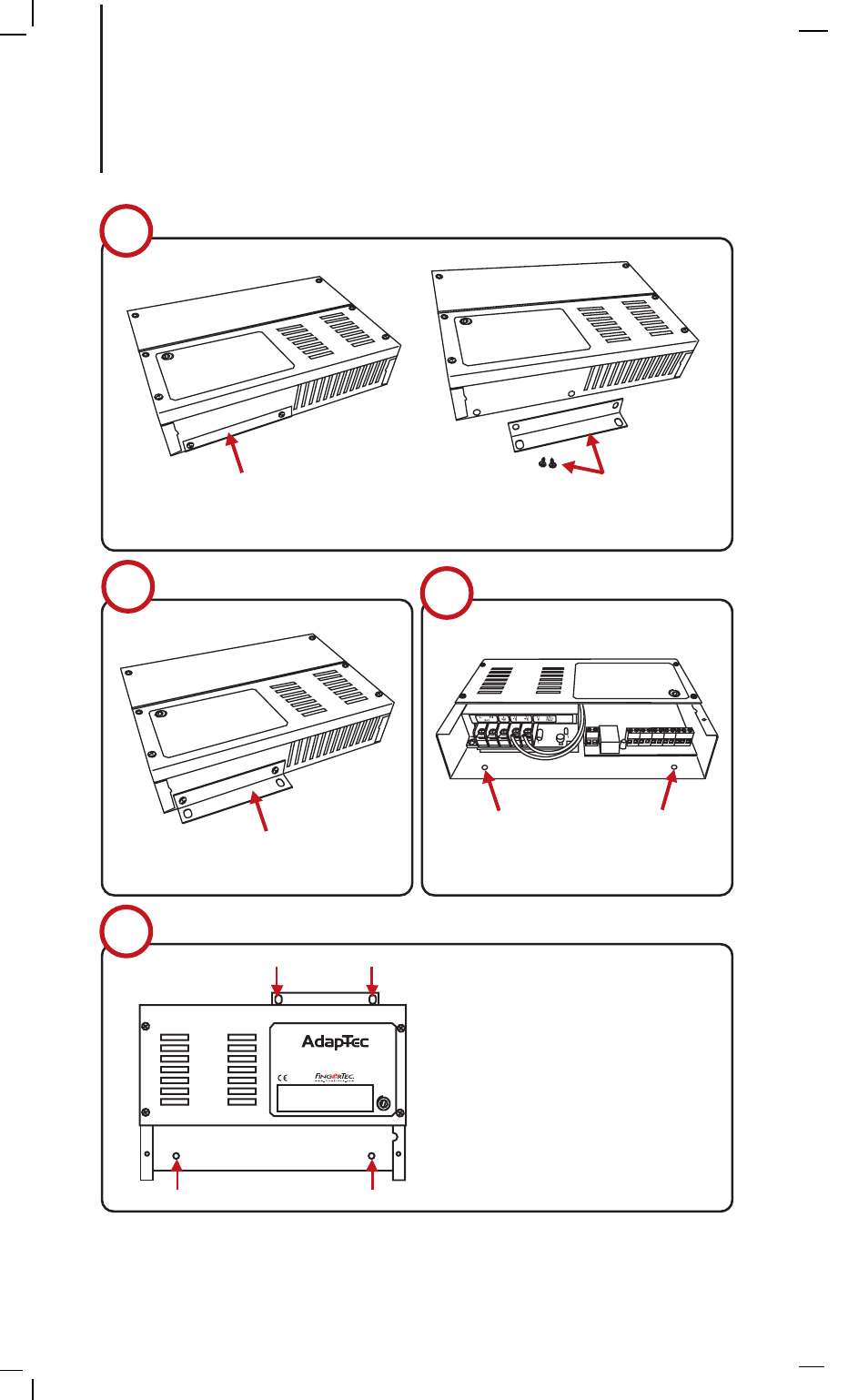

How to mount an AdapTec AC onto a wall
1
2
4
INPUT : AC 110 ~ 240V
OUTPUT : DC 12V 3A
After removing the piece, you will have
one L-shape piece and 2 screws.
3
Identify a location to mount the
AdapTec AC on a wall.
Fix the AdapTec AC onto the wall
by tightening the screws into the 4
holes.
Remove the L-shape piece from the AdapTec AC
Find an L-shape piece at the top right of an
AdapTec AC. This piece is attached to the
AdapTec AC by 2 screws.
Attach the L-shape to the AdapTec AC as
shown and tighten the screws. Open the cap, look for the part shown in
the diagram and you will see 2 holes.
