13
Emergency
Break Glass
Push Button
CEILING
ABOVE CEILING
Hub / Switch
PC
OUTDOOR INDOOR NETWORKING
FingerTec®
Series
AdapTec AC
ON-OFF
Keyswitch
To FingerTec® Series
AC110/240V
Power
Input
12V Rechargeable
battery
CEILING
ABOVE CEILING
BELOW
CEILING
Computer/
Network Hub/
Network Switch
2
To FingerTec®Series
3
AC110/240V
Power
Input
1 1
2
3
4 feet / 1.2 meter
(recommended)
CEILING
INDOOR
Emergency
Break Glass
Push Button
4
5
6
1 12V 3A DC Power Out-
put
2 AdapTec AC
Note: Refer to AdapTec user
guide for wiring diagrams.
3
12V Rechargeable Bat-
tery
Note: It is recommended to
place 1 , 2 and 3 out of
sight, either above a ceiling or
wall-mounted.
Emergency Break Glass
and Push Button should be
installed indoor. These two
items are for user to open
the door from inside.
Note: Please conceal the wir-
ing.

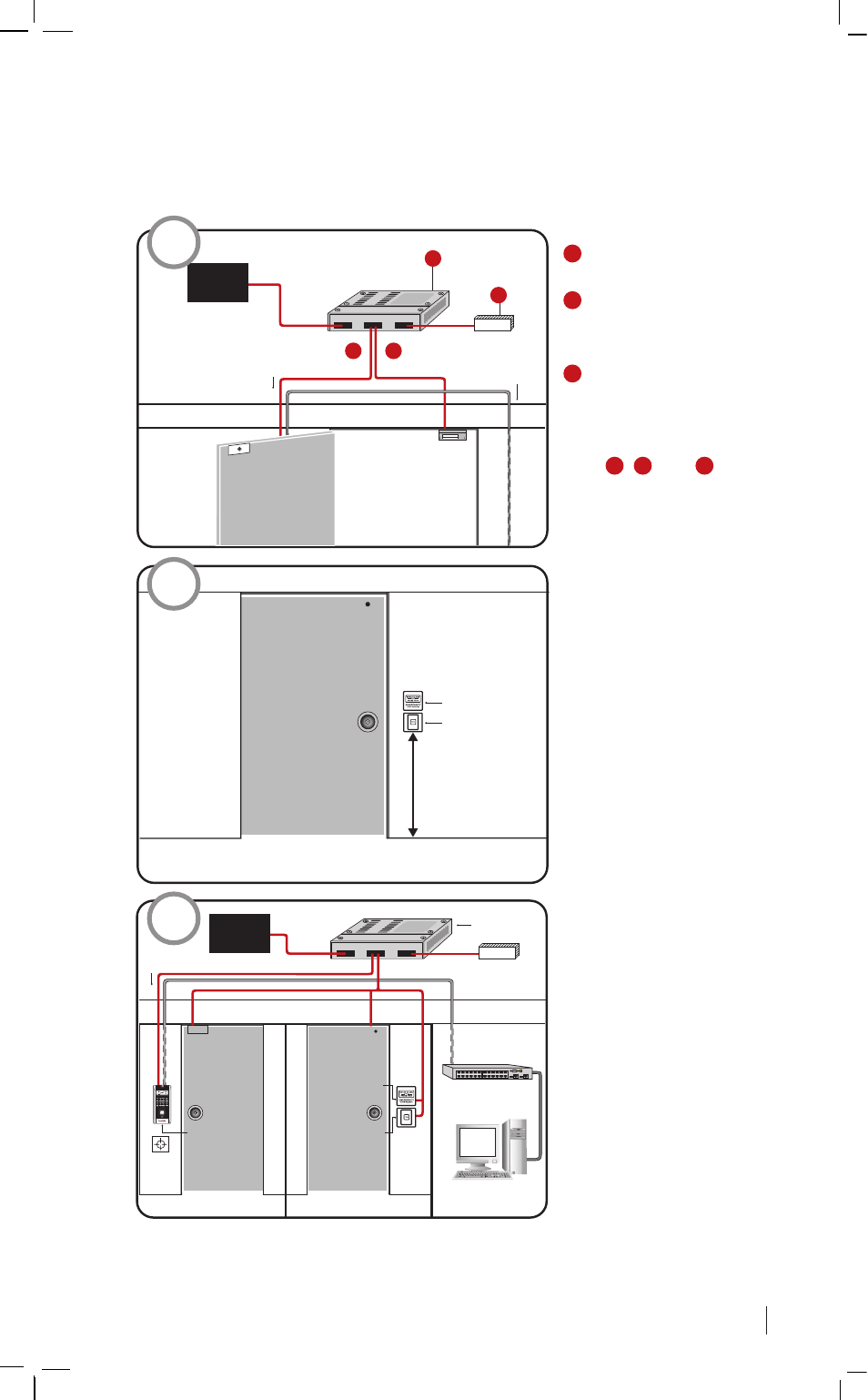

OVERVIEW OF THE
WHOLE SYSTEM
INSTALLATION
