CEILING
CEILING
INDOOR
Screws
Magnet
Doorframe
Aluminum
Plate
Allen
Key
Screws
1
2
3
GLASS DOOR
WALL WALL
OUTDOOR
4 feet / 1.2 meter
(recommended)
Screws
Back Steel
Plate
1
2
3
OUTDOOR
U-Bracket
Philip Screw
Steel
Bar
Allen Key
Screws
Allen Key
Screws
Glass Doorframe
1
1
2
1
2
3

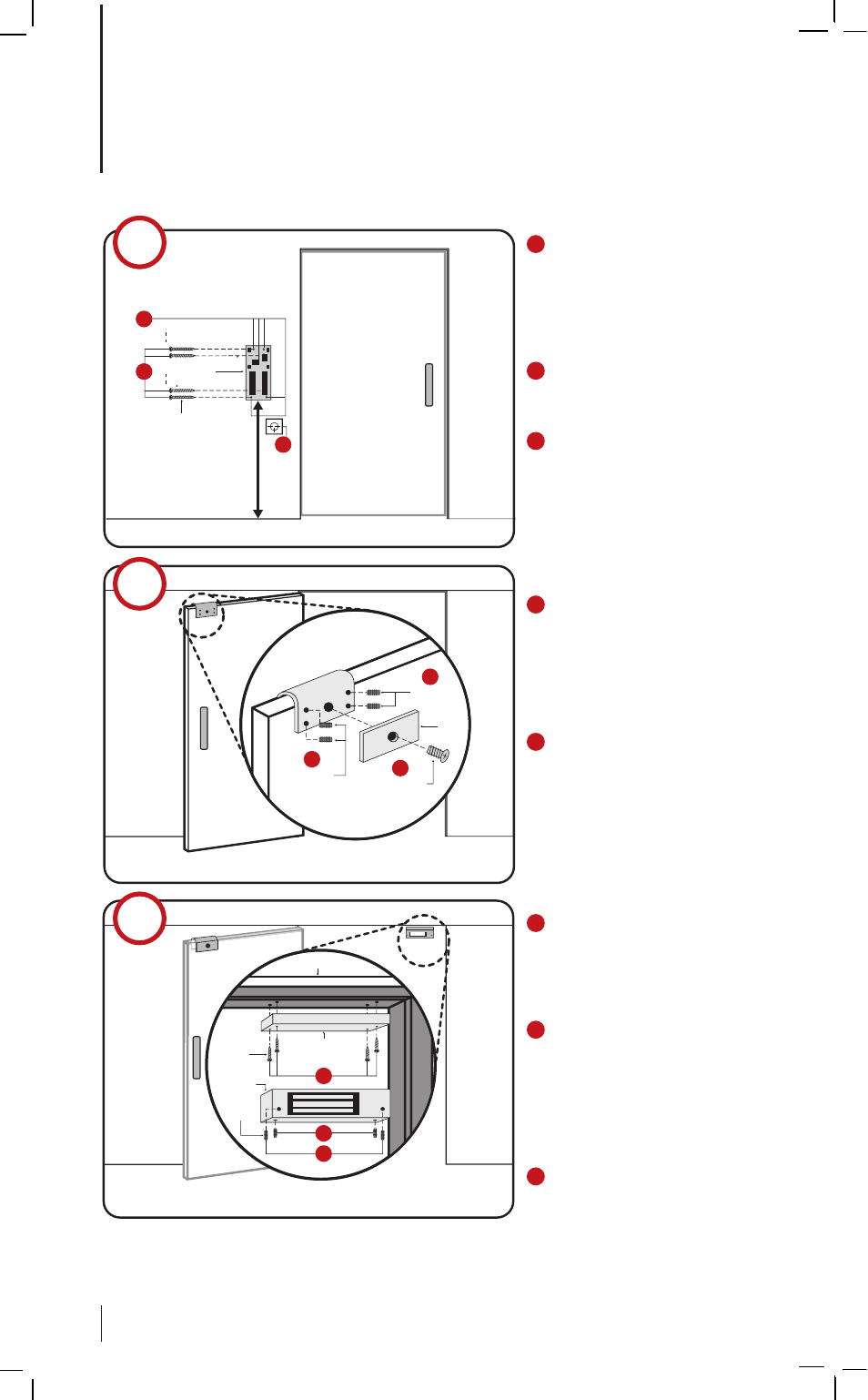

INSTALLATION •
Glass Door
1
To install FingerTec®
model on the wall, drill
5 holes as shown. 4 small
holes are for the screws
and the bigger hole is
for the network cable.
2
Tighten the 4 screws to
fix the Back Plate o n the
wall.
3
Install the keyswitch as
per instructions given in
the box. The keyswitch
is an override key in
case of system failure or
breakdown.
1
Lodge the
U-Bracket
into the upper edge of
the glass doorframe.
Tighten the 4
Allen
Screws to hold the U-
Bracket into position.
2
Place the Steel Bar on
the side of the U-Brack-
et . Tighten the Philip
Screw to lock the Steel
Bar onto position.
1
Drill 4 holes on the door-
frame. Tighten the 4
screws to fix the
Alumi-
num Plate properly on
the doorframe.
2
Use Allen Key to tighten
the 2 screws at the bot-
tom of the Magnet. The
Magnet will stick to the
Aluminum Plate when
the screws are tight-
ened.
3
Use Allen Key to tighten
the other 2 screws on
the sides of the Magnet.
