FingerTec AdapTec AC - Manual (Page 12)

12
WALL WALL
WOODEN DOOR
OUTDOOR
4 feet / 1.2 meter
(recommended)
1
Screws
Back Steel
Plate
2
CEILING
INDOOR
Silver
Nut
Steel
Bar
Allen Key
Screw
Wooden Doorframe
CEILING
INDOOR
Screws
Magnet
Doorframe
Aluminum
Plate
Allen
Key
Screws
3
1
2
2
1
2
3
1
2
3

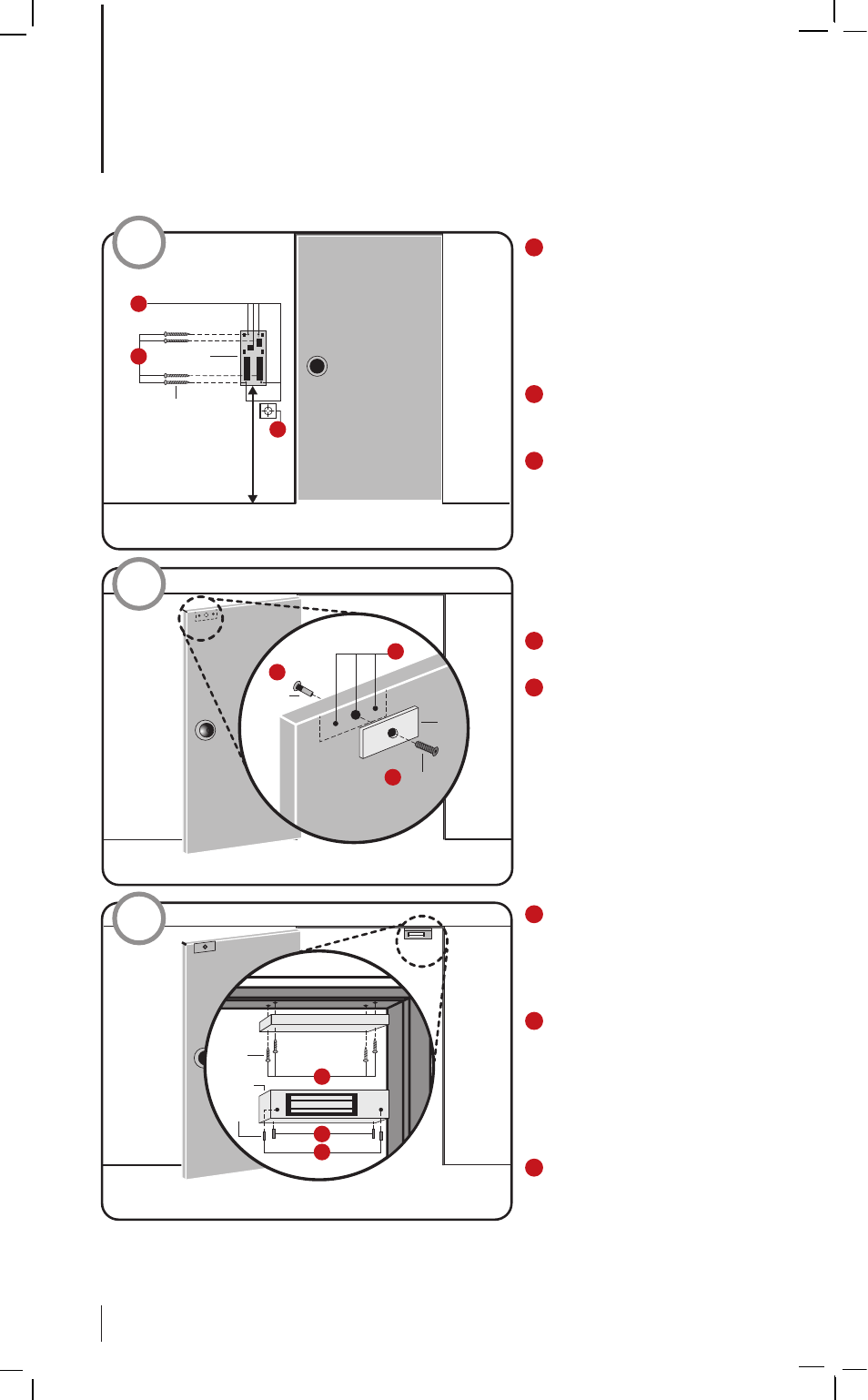

INSTALLATION •
Wooden Door
1
To install FingerTec®
AC900/M2/R2 on a wall,
drill 5 holes as shown. 4
small holes are for the
screws and the bigger
hole is for the network
cable.
2
Tighten the 4 screws to
fix the Back Plate on the
wall.
3
Install the keyswitch as
per instructions given in
the box. The keyswitch is
an override key in case of
system failure or break-
down.
1
Drill 3 holes on the
wooden door.
2
Place
Steel Bar on the
door. Insert the Silver
Nut on one side and
Al-
len Key Screw on the
other side. Tighten the
screw to lock the
Steel
Bar onto its position.
1
Drill 4 holes on the
wooden frame. Tighten
the 4 screws to fix the
Aluminum Plate prop-
erly on the doorframe.
2
Use Allen Key to tighten
the 2 screws at the bot-
tom of the
Magnet . The
Magnet will stick to the
Aluminum Plate when
the screws are tight-
ened .
3
Use Allen Key to tighten
the other 2 screws on
the sides of the
Magnet.
