FingerTec AdapTec AC - Manual (Page 11)

11
Siren EM Siren Output Output Tamper EXT. Door To
Accept 12V MAX 0.6A Voltage Switch Input I/P Exit Battery
0 0 0 12 0 12V C NC 12V 0 -- +
Access Control/Power Output Module
GND
PWR
COM
NO
NC
GND
AL+
AL-
BUT
GND
B+
B-
Push button
+ -
Alarm Siren
GND
RX
TX
GND
485A
485B
GND
D0
D1
+5V
SEN
GND
Access Control/Power Output Module
Siren Tamper
Siren Relay 12V EM Accept Output Switch EXT. Door To Battery
Accept OK 12V MAX 0.5A Voltage Input I/P Exit
0 0 0 12V 0 12V C NC 12V 0 - +
NO 2
COM 2
NC 2 SEN GND BUT NO 1
COM 1
NC 1 485- 485+ GND TXD RXD WD 0 WD 1 SGND GND +12V
Push Button Alarm Siren

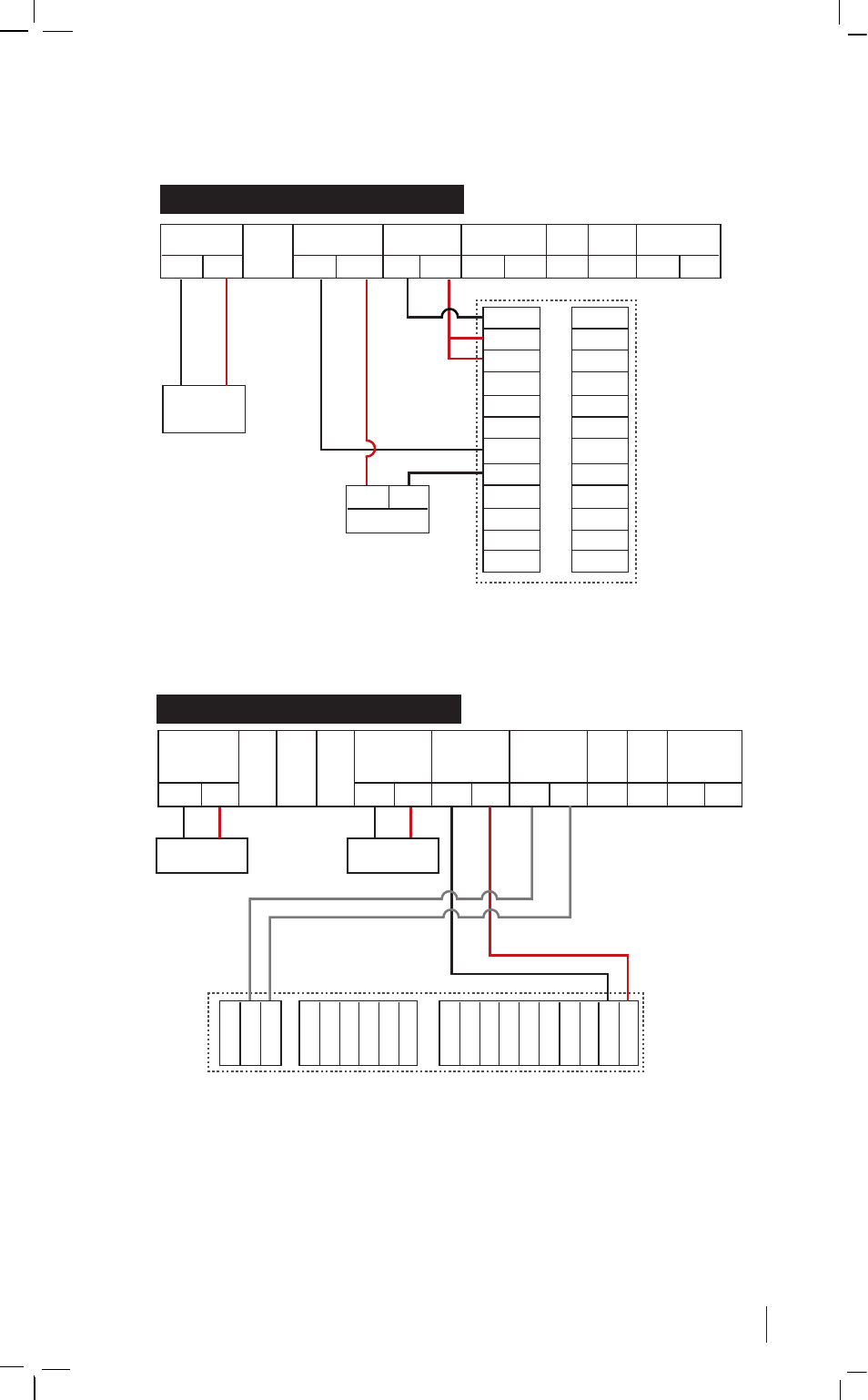

FUNCTION • AC900
For AC900, you will need to connect AC900, alarm siren and AdapTec AC
as below.
FUNCTION • Face ID 2
For Face ID 2, you will need to connect to alarm siren and AdapTec AC as
below.
Reminder to deactivate alarm siren:
1. You can deactivate the alarm siren by pressing push button that is connected to Siren
Accept in AdapTec AC. This action will turn off the alarm siren function in AdapTec AC.
However, you must restart AdapTec AC to turn on alarm siren function again. The alarm
siren will not take effect in the future if you do not restart the AdapTec AC.
2. You can do it from the terminal via Menu > Turn Off Alarm to turn off the alarm siren. You
do not need to restart the AdapTec AC. The alarm siren will return to standby mode after
you do the steps at the reader. (Recommended)
