FingerTec FTDP (FingerTec Data Processor) - Manual (Page 5)

6

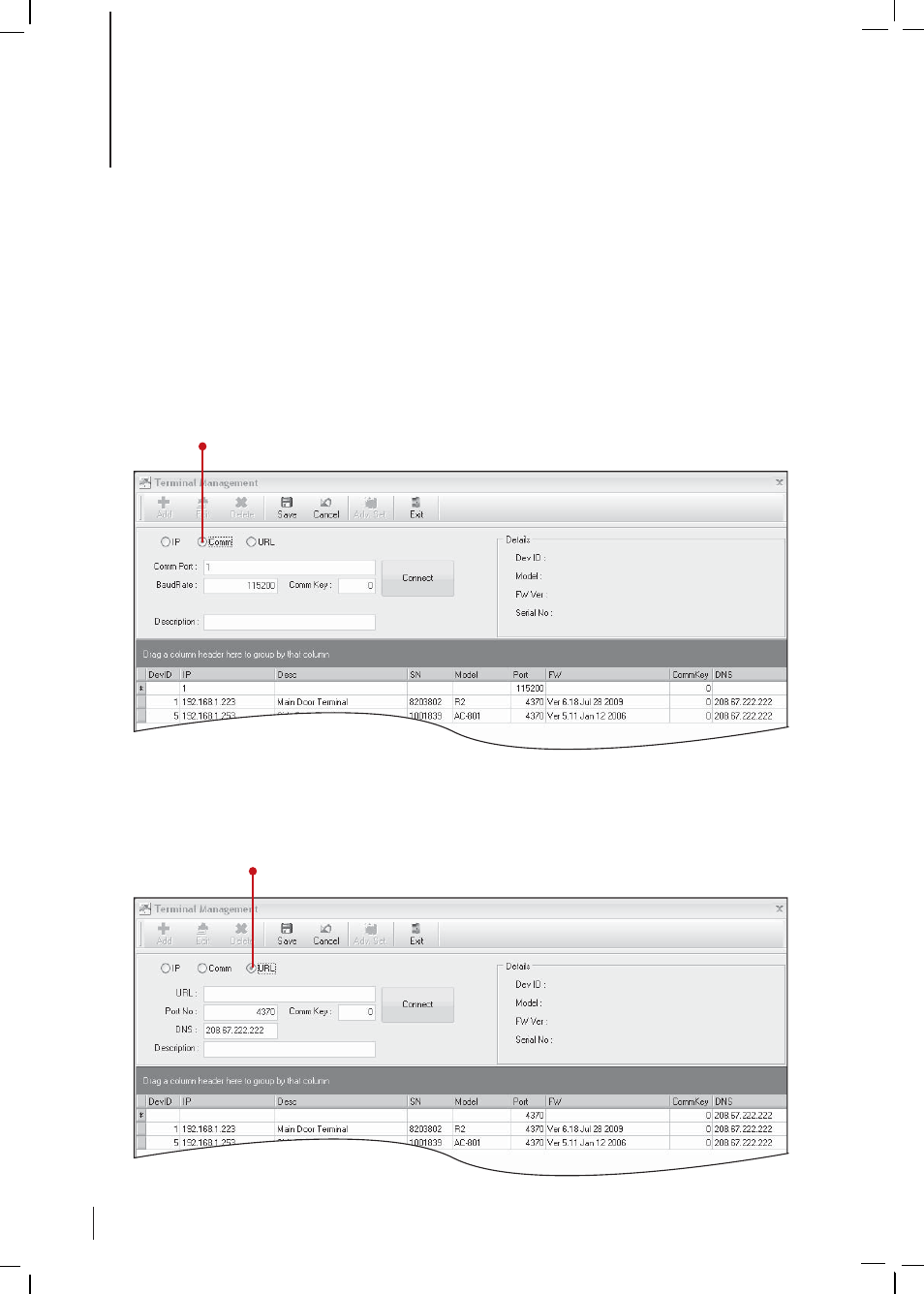

Connection by serial port: RS232/RS485
Click on the Comm check box if you are connecting to a terminal via the RS232 or RS485 wires.
Connection by URL
You can click on URL if you are connecting to the terminal via the Internet.
3 • TERMINAL MANAGEMENT
To enter the terminal management page, click on Terminal . You can add, edit, and delete
terminals from this page.
Adding FingerTec Terminals
VIA TCP/IP CONNECTION
To Add: Click Add > Insert the terminal’s IP address > Check that “Port No.” value is 4370
> Check that “COMM Key” value is 0 > Assign a name to the terminal > Click Connect to
start connection.
VIA RS232/RS485 CONNECTION
To Add: Define the Comm Port > Define the Baud Rate > Check that “COMM Key” value
is 0 > Assign a name to the terminal > Click Connect to start connection.
