MOUNTING
- With U-bracket .
The panel thickness will be
between 1 and 5 mm.
ELECTRICAL CONNECTIONS
Example of typical application

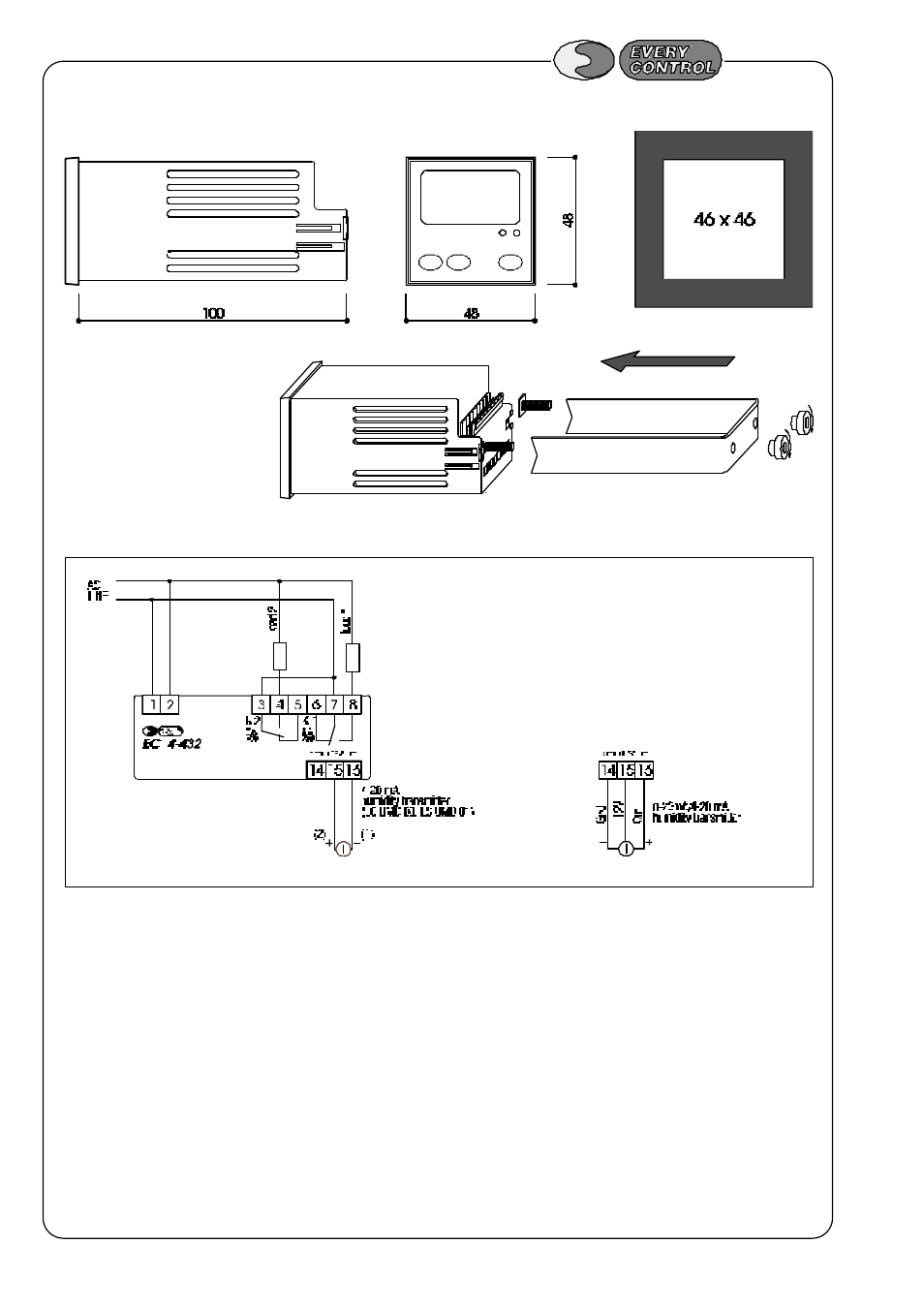

SIZE AND PIERCING TEMPLATE
ELECTRO-MECHANICAL CHARACTERISTICS
Box:
Self-extinguishing plastic (PPO) according to UL94
V-0.
Size:
48 x 48 x 100 mm.
Mounting :
Panel-mounting through U-bracket.
Environment temperature:
from 0 to + 60°C.
Humidity :
10...90% not condensing.
Connections :
extractable screw connectors.
Insulation-class :
II (only with ac power-supply).
Power-supply :
230 Vac (standard); on request 115 Vac
50/60 Hz 2VA; 12-24Vac/dc 1,5 W.
Inputs for measure:
1 configurable for transducers with
current output (4-20 mA or 0-20 mA).
Input resistance:
56 ohm.
Transducer power-supply :
available at terminal 15
(voltage 12V +30%, -20%).
Range of measure:
from zero to 100% of relative
humidity.
Resolution:
0.1%rH.
Setpoint adjustement:
possible in the entire range
of measure.
Display:
3 digits display, outputs-status indicator.
Outputs:
2 SPDT 8A/250V (K1 and K2) relays.
