CODE PARAMETER DESCRIPTION MIN MAX U.M. STANDARD
/ PROBE
/0 kind of probe 30 = 4-20 mA ; 31 = 0-20 mA 30 31 ---- 30
/1 calibration -9.0 +10 %rH 0
/2 digital filter(speed response) 0=0s; 1=0.4s; 2=1.2s; 3=3.0s; 4=8.0s; 5=19.8s; 6=48.0s 0 6 —— 3
/4 without leading zeros 0=NO; 1=SI 0 1 —— 1
/5 with decimal point 0=NO; 1=SI 0 1 ---- 0
/6 start of scale for input 0-20 mA or 4-20 mA corrispondent to input's minimum value -99 999 %rH 0
/7 end of scale for input 0-20 mA or 4-20 mA corrispondent to input's maximum value -99 999 %rH 100
L NETWORK CONNECTION
L1 instrument address 1 15 —— 1
L2 instrument group 0 7 ---- 0
CONFIGURATION PARAMETERS
HOW TO ENTER THE CONFIGURATION KEY

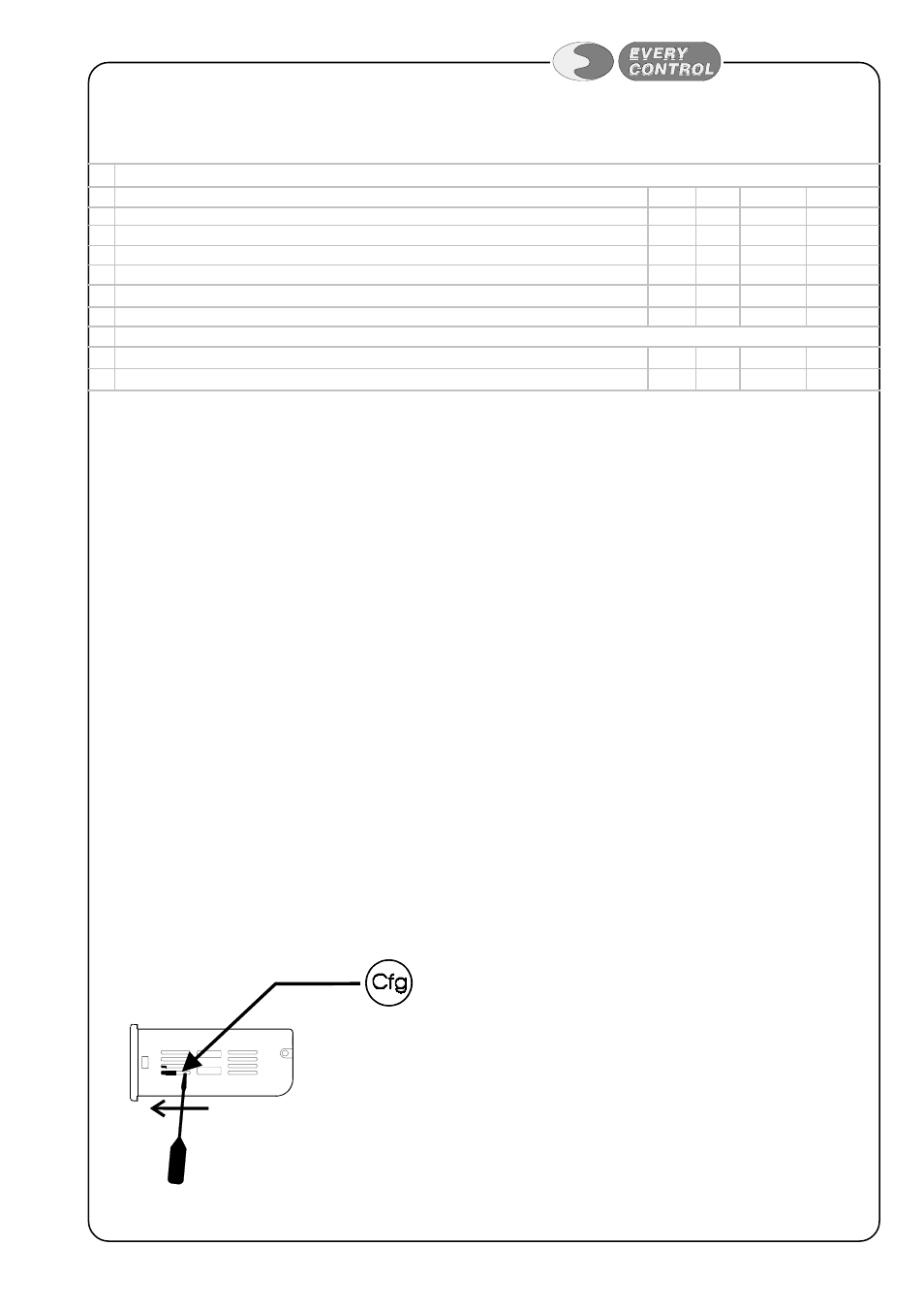

Use a suitable tool (for instance, a small top screw-driver) to operate on the key through the side openings.
