6
Operating instructions - Version 1.00 of April the sixteenth 2002 - File ec3102e_v1.00.pdf - PT
EVERY CONTROL S.r.l. HEADQUARTERS: Via Mezzaterra 6 32036 Sedico BELLUNO ITALY
PHONE: +39 437 852468 (4 a.r. lines) FAX: +39 437 83648 INTERNET ADDRESSES: e-mail: [email protected] http://www.everycontrol.it

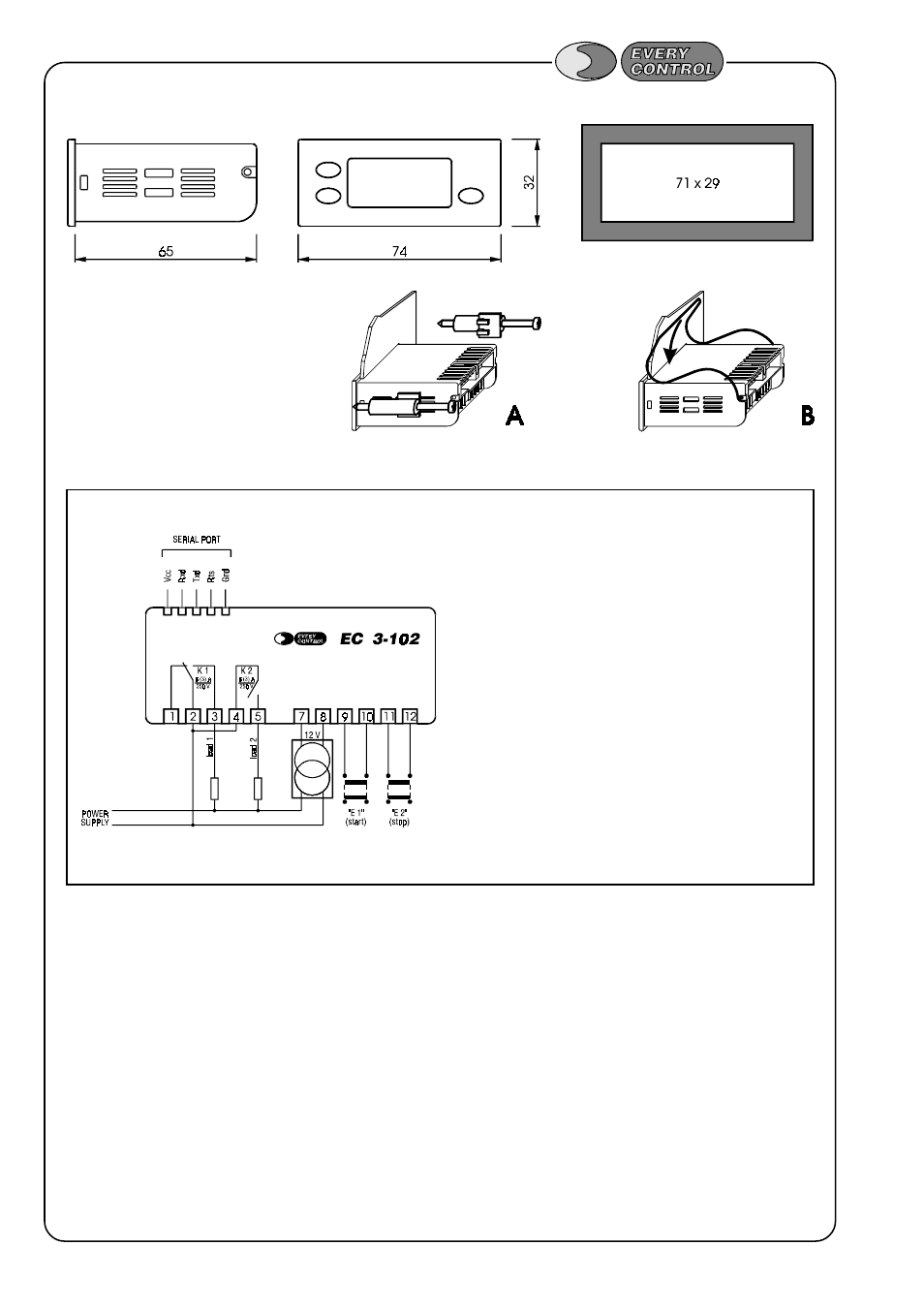

OPTIONS OF MOUNTING
With:
screw brackets (A) or
spring bracket (B).
The panel thickness will be between
1 and 5 mm.
ELECTRICAL CONNECTIONS
ELECTROMECHANICAL CHARACTERISTICS
Box: plastic (PC-ABS) black, self-extinguish according to
UL94 V-0.
Size: 74 x 32 x 65 mm.
Mounting: panel mounting with screw or spring brackets.
Environment
temperature: from 0 to +60 °C.
Humidity: 10 ... 90% not condensing.
Connections: through screw connector.
Power supply: 12 Vac/dc (standard) or 12-24 Vac/dc (on request)
50-60 Hz 1,5 VA.
Insulation class: II (with transformer according to EN 60742).
Remote inputs: 2 (5 V, 1 mA), with configurable switching mode, for
to start (E 1) and to stop (E 2) a cycle of counting.
Range of measure: from 1/10 sec. to 99 h. 59 min.
Range of timer
setting: from 0 to 99 h. 59 min.
Display: 4 digits display, K 1 output status indicator.
Resolution: 1/10 sec. with seconds:tenths time base
1 sec. with minutes:seconds time base
1 min. with hours:minutes time base.
Signalling buzzer: included.
Outputs: one SPDT 6 A at 250 Vac relay (K 1),
one SPST 6 A at 250 Vac relay (K 2).
Serial port for data
exchange: TTL with EVCOBUS protocol (standard).
Measures in mm.
Example of typical application.
SIZE AND PIERCING TEMPLATE
