1 Summary of Features
• Onboard Xilinx Virtex-5 FPGA
◦ Model: FX30T
▪ PowerPC and MicroBlaze cores
▪ Hard Ethernet MAC
• Programmable Clock Generator Chip
◦ Model: IDT 5V9885
▪ 8 outputs with available frequencies from
0.0049 – 550 MHz
▪ Output types: LVPECL, LVTTL, and LVDS
▪ 12-bit Multiplier
▪ 8-bit pre and 12-bit post Divider
• Onboard Xilinx Platform Flash
◦ XCF132P 32 Mb PROM
• Memory Banks
◦ 2 × 128 MB DDR2 Banks
• Ethernet
◦ Ethernet port with 10/100 Ethernet PHY
• Secure Digital File System
◦ Includes a 2 GB SD card configured with Linux
image that runs on the PowerPC core
• External Connectors
◦ JTAG port
◦ Dual RS232 ports
◦ 4 dual Pmod headers
◦ 2×20 general purpose I/O header
◦ Secure Digital file system
◦ 8-lane PCI express edge connector
◦ Reset button
• Standard Power Supply
◦ Powered by a single 6-pin PCIe power connector
• Standard Dimensions
◦ Card measures 4.3” × 6.9”

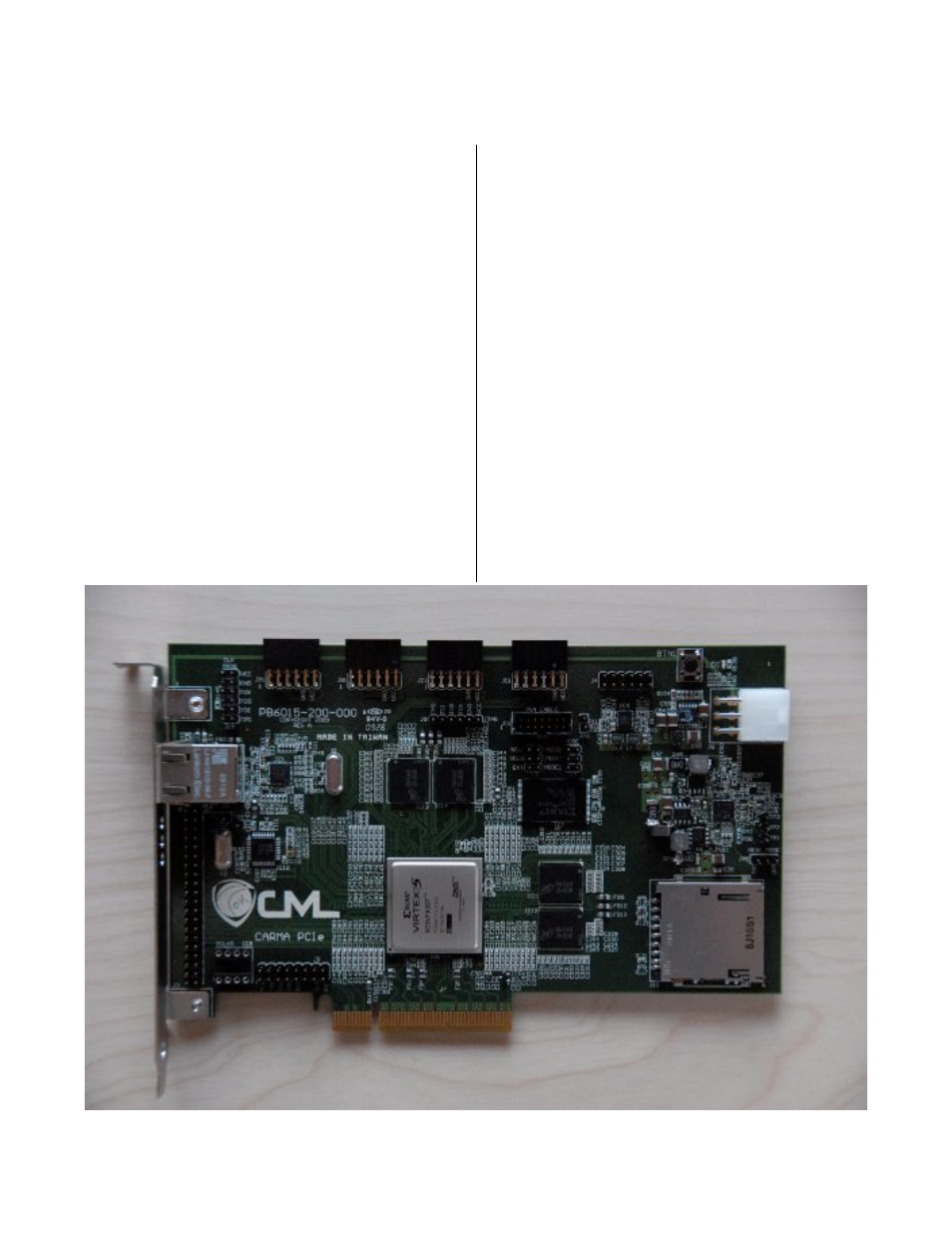

Figure 1-1: Opus Card
