Digilent 240-050P-GROUP User Manual
Page 9

MRK+Line Reference Manual
www.digilentinc.com
page 9 of 11
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.

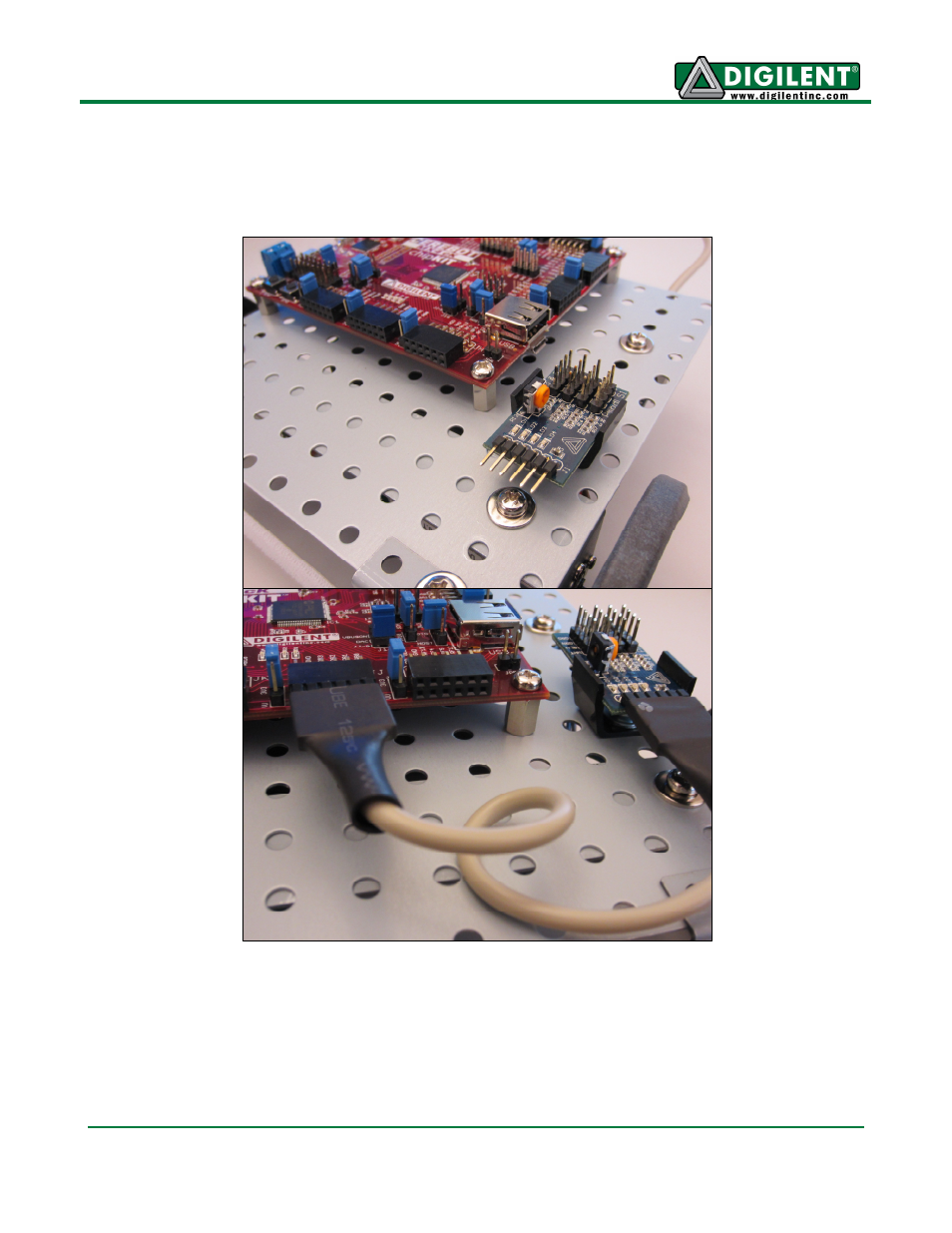

15. Attach the PmodLS1 to the Pmod clip, and then connect the PmodLS1 to the top row of the
Pmod header JJ using the 6-pin cable. Take care that the pins are connected correctly. The
flower-like symbol should only be viewable on one end of the cable. Please see the pictures
below.
