Digilent 240-050P-GROUP User Manual
Page 5

MRK+Line Reference Manual
www.digilentinc.com
page 5 of 11
Copyright Digilent, Inc. All rights reserved. Other product and company names mentioned may be trademarks of their respective owners.

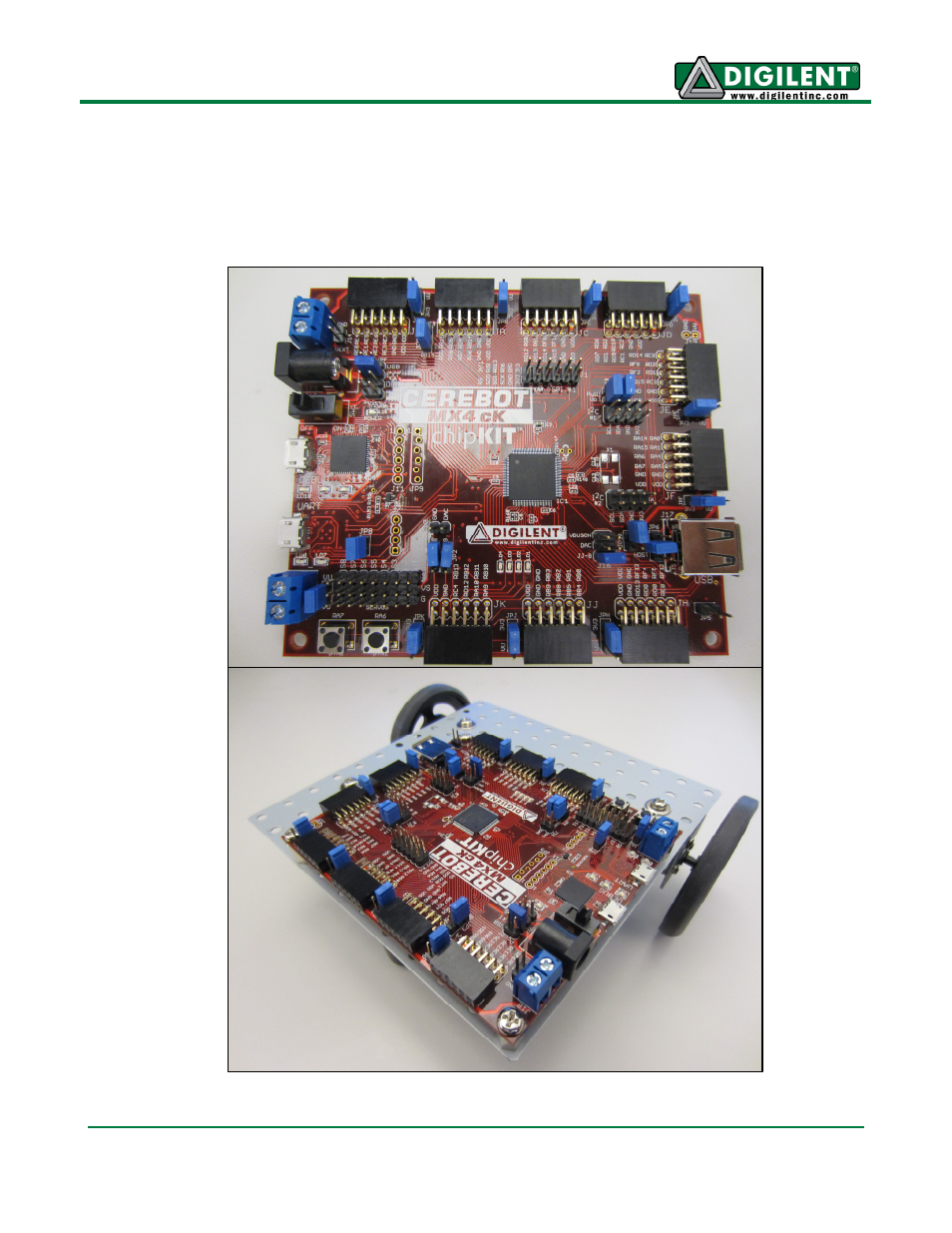

8. Compare your Cerebot MX4cK board to the picture below. Note that the blue shorts are
attached to each jumper as shown. Remove the rubber feet from the bottom of the corners of
the Cerebot MX4cK. Attach the standoffs to the board using the mounting screws. Mount the
Cerebot MX4cK board to the top side of the platform. Be careful not to cross thread the
screws while mounting the Cerebot MX4cK board.
