Basys2 Reference Manual
Digilent
www.digilentinc.com
Keyboard
The keyboard uses open-collector drivers so the
keyboard or an attached host device can drive the
two-wire bus (if the host device will not send data to
the keyboard, then the host can use input-only ports).
PS2-style keyboards use scan codes to
communicate key press data. Each key is assigned a
code that is sent whenever the key is pressed; if the
key is held down, the scan code will be sent
repeatedly about once every 100ms. When a key is
released, a “F0” key-up code is sent, followed by the
scan code of the released key. If a key can be “shifted” to produce a new character (like a capital
letter), then a shift character is sent in addition to the scan code, and the host must determine which
ASCII character to use. Some keys, called extended keys, send an “E0” ahead of the scan code (and
they may send more than one scan code). When an extended key is released, an “E0 F0” key-up
code is sent, followed by the scan code. Scan codes for most keys are shown in the figure. A host
device can also send data to the keyboard. Below is a short list of some common commands a host
might send.
ED
Set Num Lock, Caps Lock, and Scroll Lock LEDs. Keyboard returns “FA” after receiving “ED”,
then host sends a byte to set LED status: Bit 0 sets Scroll Lock; bit 1 sets Num Lock; and Bit 2
sets Caps lock. Bits 3 to 7 are ignored.
EE Echo (test). Keyboard returns “EE” after receiving “EE”.
F3 Set scan code repeat rate. Keyboard returns “F3” on receiving “FA”, then host sends second
byte to set the repeat rate.
FE Resend. “FE” directs keyboard to re-send most recent scan code.
FF Reset. Resets the keyboard.
The keyboard can send data to the host only when both the data and clock lines are high (or idle).
Since the host is the “bus master”, the keyboard must check to see whether the host is sending data
before driving the bus. To facilitate this, the clock line is used as a “clear to send” signal. If the host
pulls the clock line low, the keyboard must not send any data until the clock is released.
T
CK
T
SU
Clock time
Data-to-clock setup time 30us
5us
50us
25us
Symbol Parameter Min Max
T
HLD
Clock-to-data hold time 5us 25us
Edge 0
‘0’ start bit ‘1’ stop bit
Edge 10
Tsu
T hld
Tck Tck

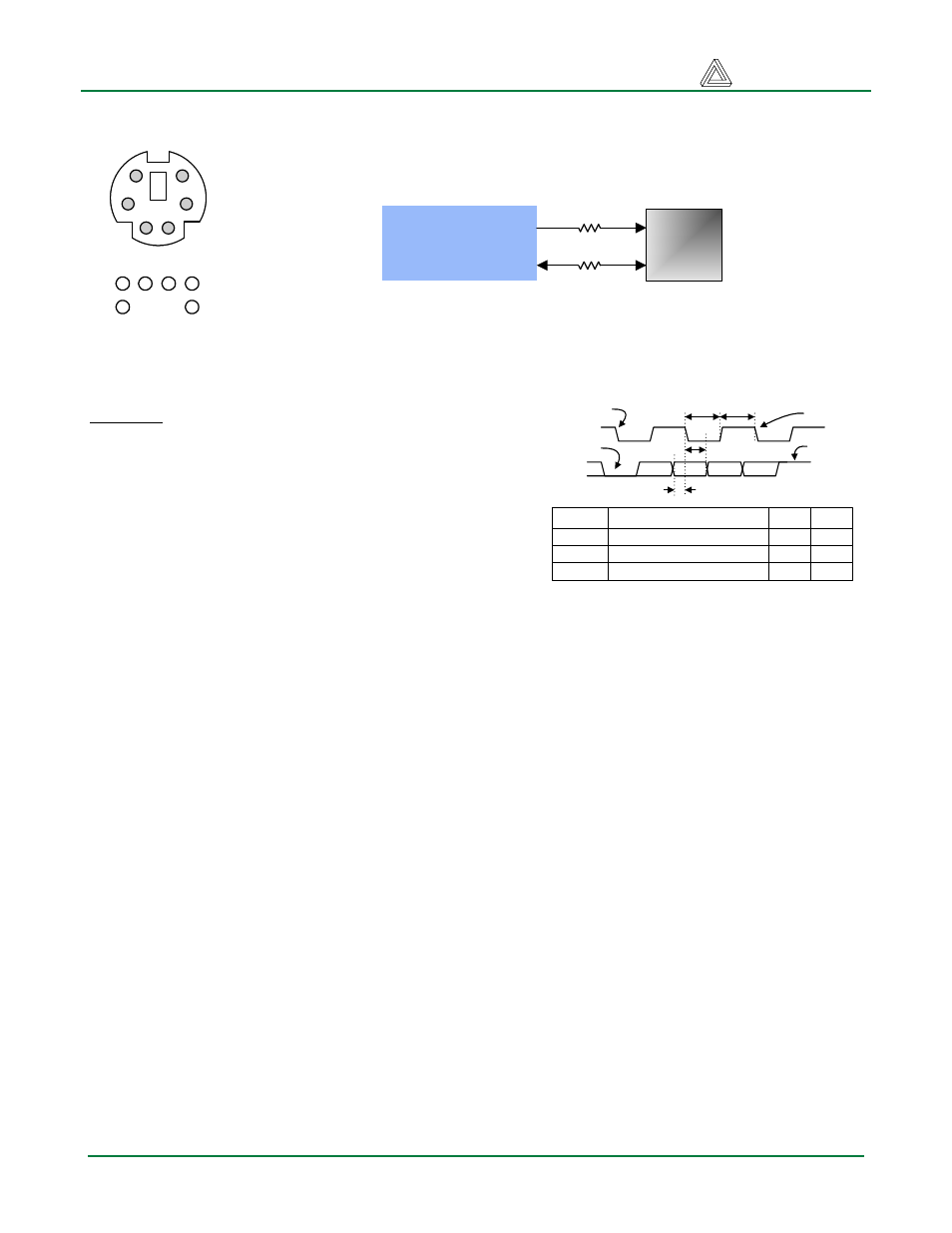

Figure 10. PS/2 signal timing
Pin1: Data
Pin2: Data
Pin3: GND
Pin5: Vdd
Pin6: Clock
Pin8: Clock
2 1 3 5
8 6
1
3
6
2
5
8
(bottom up)
B1
Spartan 3E
FPGA
CLK
DATA
6-pin
mini-DIN
C3
200 Ω
200
Ω
Figure 9. PS/2 connector and Basys2 PS/2 circuit
Doc: 502-138 page 6 of 12
