For each of the four digits to appear
bright and continuously illuminated, all
four digits should be driven once every 1
to 16ms (for a refresh frequency of
1KHz to 60Hz). For example, in a 60Hz
refresh scheme, the entire display would
be refreshed once every 16ms, and
each digit would be illuminated for ¼ of
the refresh cycle, or 4ms. The controller
must assure that the correct cathode
pattern is present when the
corresponding anode signal is driven.
To illustrate the process, if AN1 is
asserted while CB and CC are asserted, then a “1” will be displayed in digit position 1. Then, if AN2 is
asserted while CA, CB and CC are asserted, then a “7” will be displayed in digit position 2. If A1 and
CB, CC are driven for 4ms, and then A2 and CA, CB, CC are driven for 4ms in an endless
succession, the display will show “17” in the first two digits. Figure 8 shows an example timing
diagram for a four-digit seven-segment controller.


PS/2 Port

The 6-pin mini-DIN connector can accommodate a PS/2 mouse or keyboard. The PS/2 connector is
supplied with 5VDC.

Both the mouse and keyboard use a two-wire serial bus (clock and data) to communicate with a host
device. Both use 11-bit words that include a start, stop and odd parity bit, but the data packets are
organized differently, and the keyboard interface allows bi-directional data transfers (so the host
device can illuminate state LEDs on the keyboard). Bus timings are shown in the figure.
The clock and data signals are only driven when data transfers occur, and otherwise they are held in
the “idle” state at logic ‘1’. The timings define signal requirements for mouse-to-host communications
and bi-directional keyboard communications. A PS/2 interface circuit can be implemented in the
FPGA to create a keyboard or mouse interface.

AN0

AN1

AN2

AN3

Cathodes

Digit 0

Refresh period = 1ms to 16ms

Digit period = Refresh / 4

Digit 1

Digit 2

Digit 3

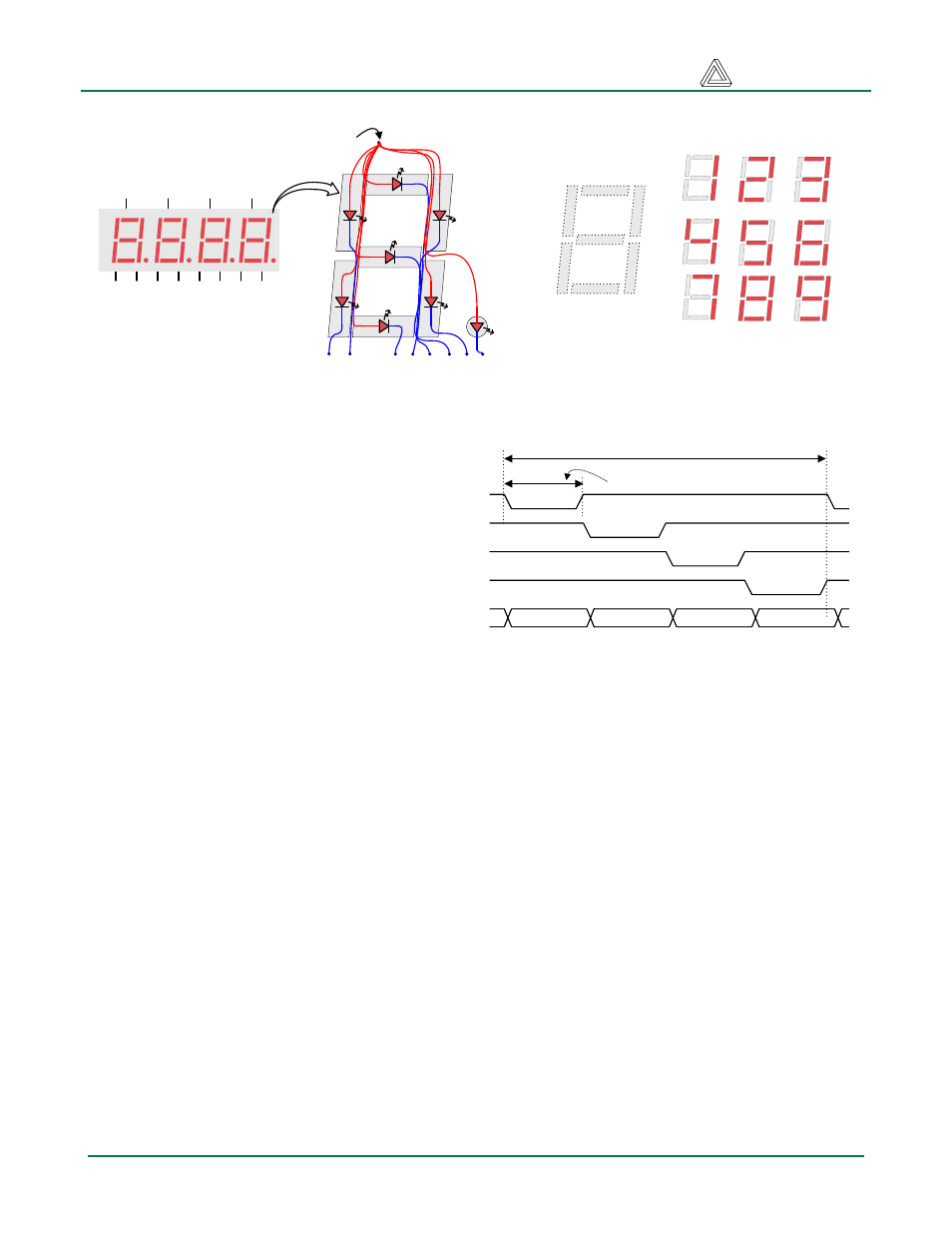

Figure 8. Multiplexed 7seg display timing

A

F

E

D

C

B

G

Common anode

Individual cathodes

DP

AN1

AN2

AN3

AN4

CA CB CC CD CE CF CG DP

Four-digit Seven

Segment Display

An un-illuminated seven-segment display, and nine
illumination patterns corresponding to decimal digits

Figure 7. Seven-segment display
