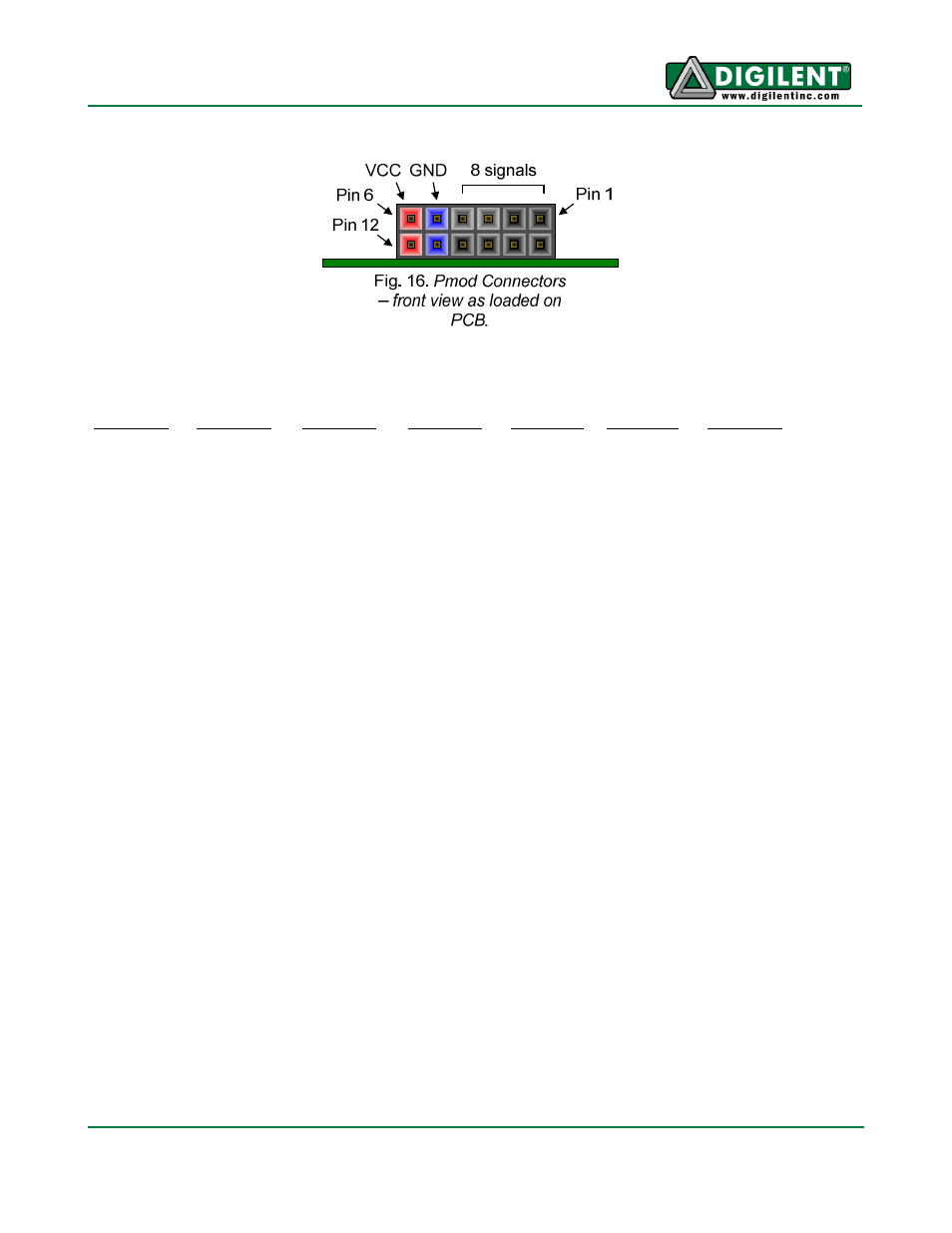

The 40-pin expansion connector has 32 I/O signals that are shared with Pmods JD, JE, JF and JG. It
also provides GND, VCC3V3, and VCC5V0 connections.
Pmod JA Pmod JB Pmod JC Pmod JD Pmod JE Pmod JF Pmod JG
JA1: AA18 JB1: Y16 JC1: Y10 JD1: AB13 JE1: U10 JF1: V7 JG1: V20
JA2: AA16 JB2: AB14 JC2: AB12 JD2: Y12 JE2: V9 JF2: W6 JG2: T18
JA3: Y15 JB3: Y14 JC3: AB11 JD3: T11 JE3: Y8 JF3: Y7 JG3: D17
JA4: V15 JB4: U14 JC4: AB10 JD4: W10 JE4: AA8 JF4: AA6 JG4: B18
JA7: AB18 JB7: AA14 JC7: AA12 JD7: W12 JE7: U9 JF7: W8 JG7: T17
JA8: AB16 JB8: W14 JC8: Y11 JD8: R11 JE8: W9 JF8: Y6 JG8: A17
JA9: AB15 JB9: T14 JC9: AA10 JD9: V11 JE9: Y9 JF9: AB7 JG9: C16
JA10: W15 JB10: W11 JC10: Y13 JD10: T10 JE10: AB8 JF10: AB6 JG10: A18
Table 2. Pmod pinout.
