To Install Locking Clip with Infant
Restraint:
1. Tighten the buckled belt by
pushing down hard on the infant
restraint and pulling hard on the
shoulder belt.
2. While pushing down on infant
restraint, pinch the two straps
together behind the buckle
tongue. Unbuckle the belt
without allowing it to slip.

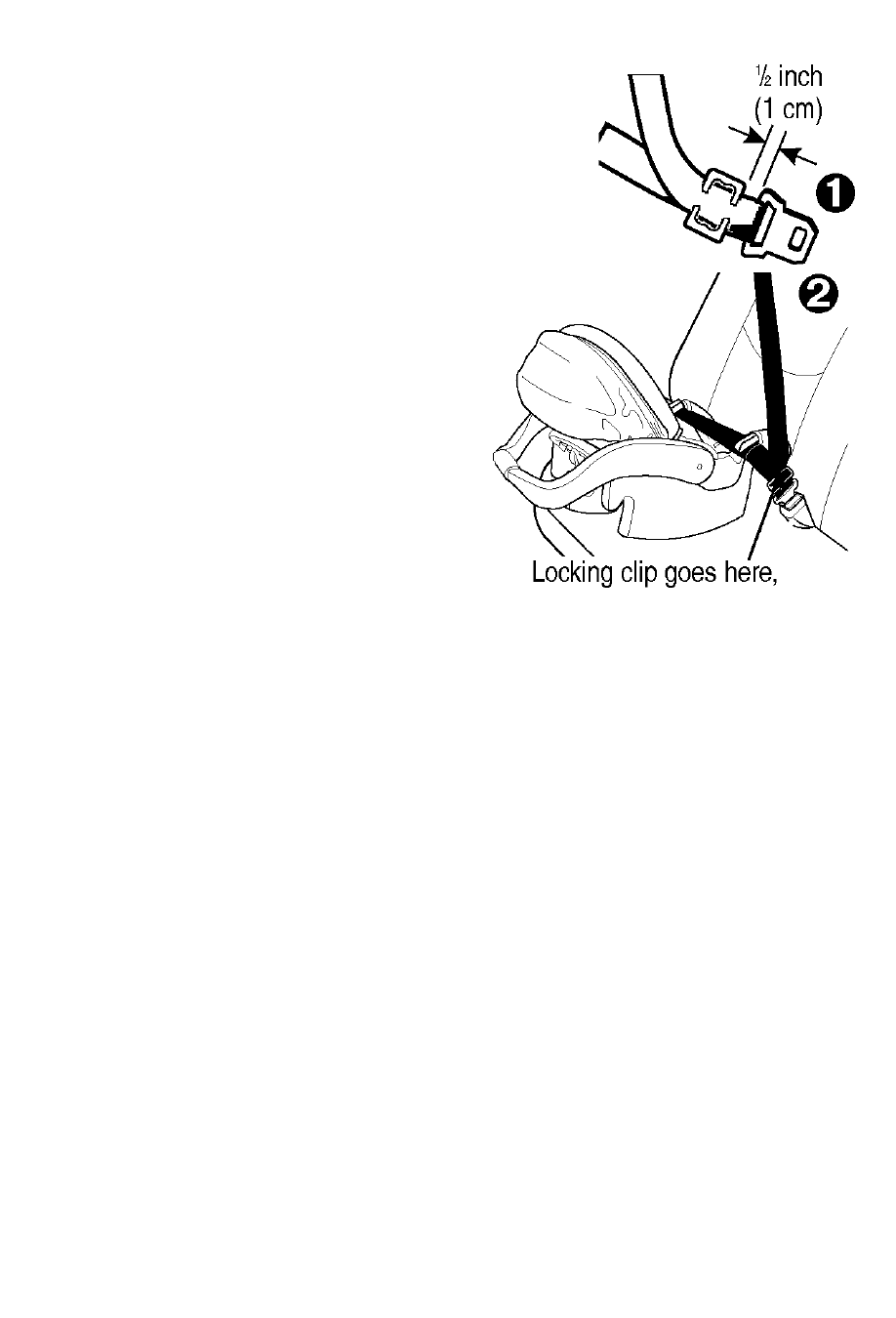

3. Connect lap and shoulder belts
with locking clip as shown O
and ©.
4. Rebuckle belt. Check that lap belt
does not move by pulling and
pushing hard on infant restraint.
If belt loosens or lengthens,
repeat procedure.
'k
inch (1 cm) from the buckle
32
