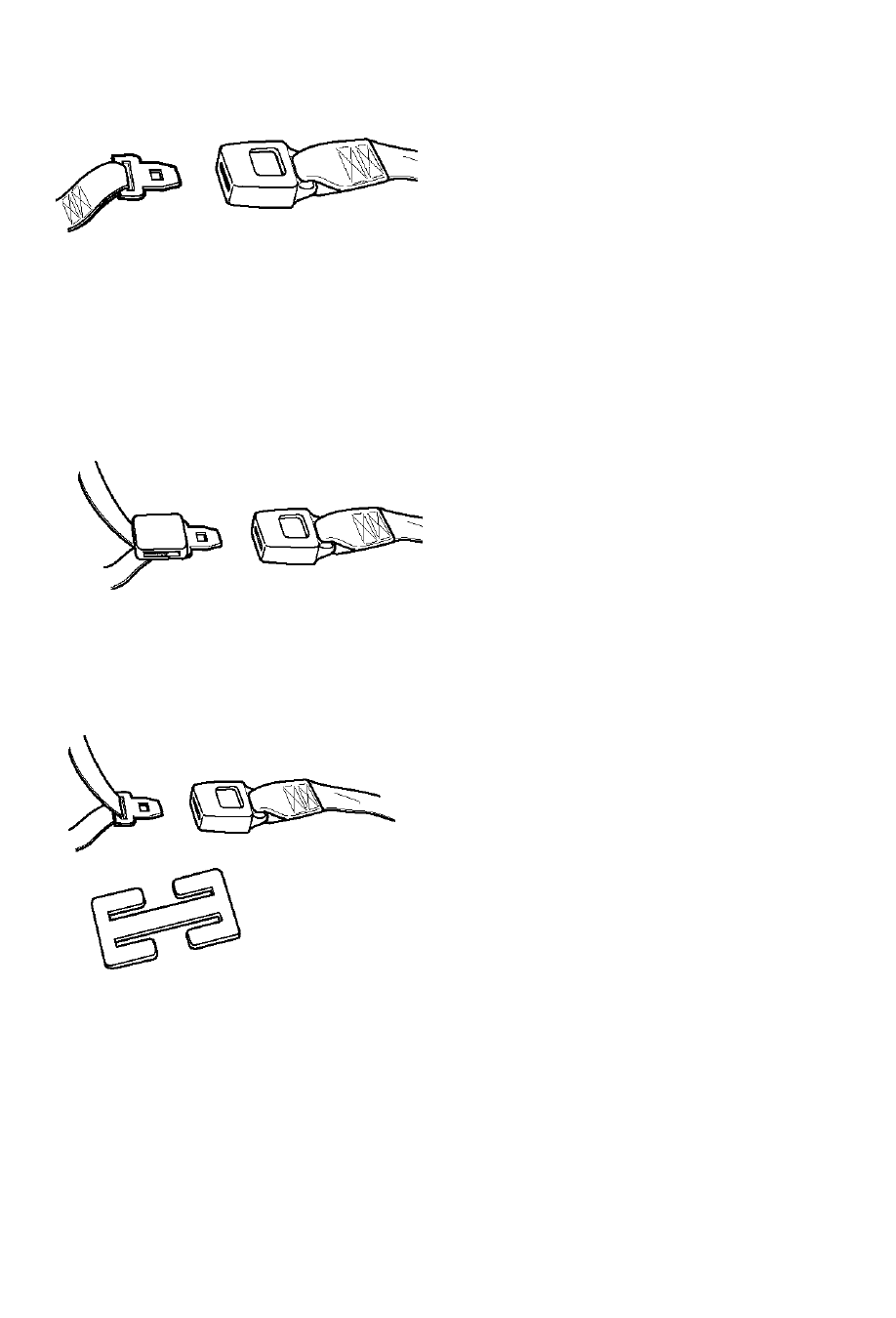

Lap Belts with Automatic
Locking Retractor (ALR)
The automatic locking retractor
will not permit the lap belt to
lengthen once it is buckled.
Tighten the belt by feeding
the belt back into the retractor
while pushing down hard on the
infant restraint.
Combination Lap/Shoulder Belt
with Locking Latch Plate
Combination Lap/Shoulder
Belt with Sliding Latch
Plate
Once it is buckled, this type of
belt has a latch plate that will not
allow the lap portion of the belt to
loosen. Belt is tightened by pulling
hard on the shoulder portion of the
vehicle belt while pushing down
hard on the infant restraint.
This belt has a latch plate that slides
freely along the belt.
This belt MUST be converted to prevent
movement of the lap portion of the belt.
You must use a locking clip (provided
with the infant restraint) when using the
infant restraint without the base unless
your vehicle's seat belt can be
converted in another way as described
in your vehicle owner's manual.
Locking clip
