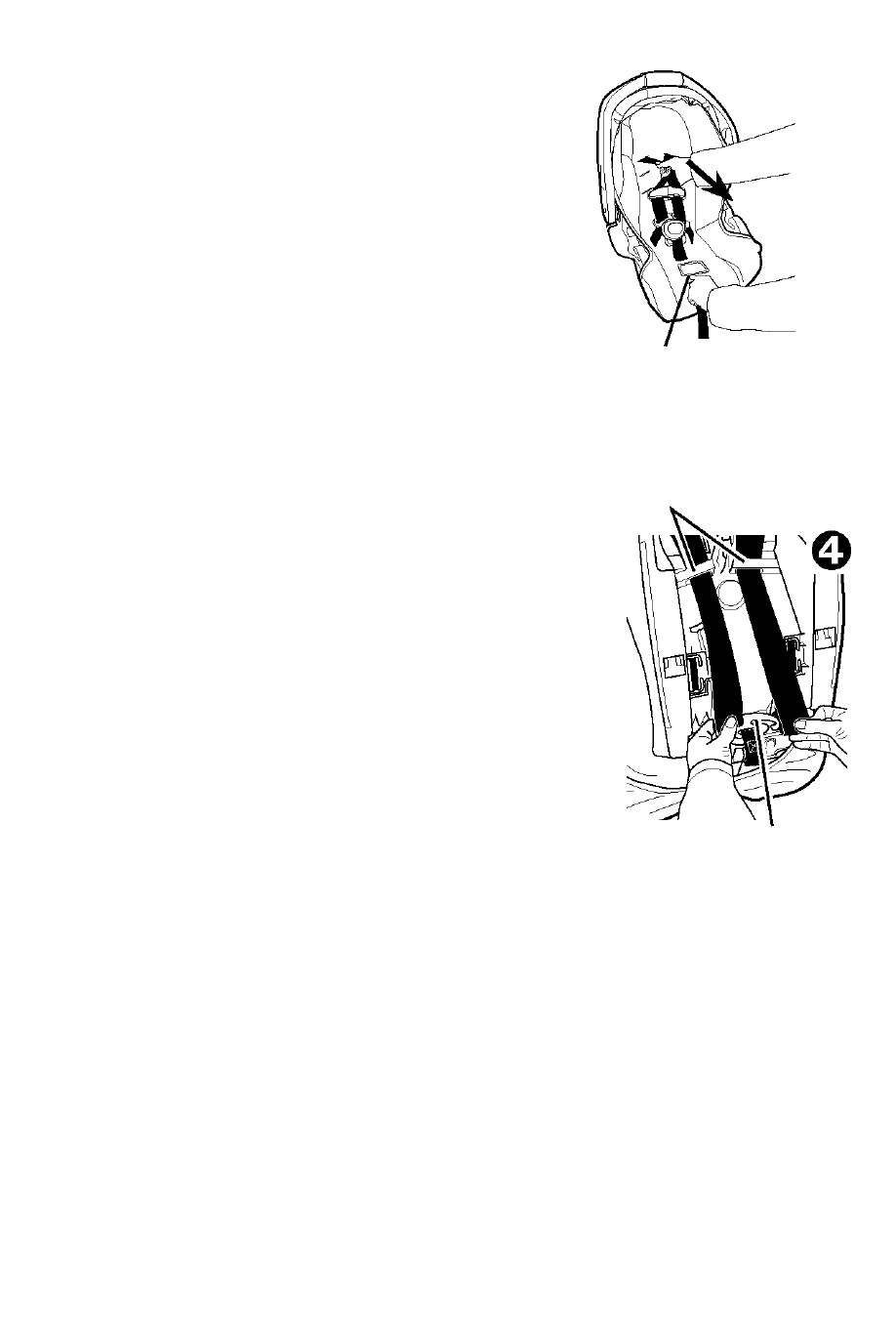

A. Push the harness adjustment button
under the seat flap. Pull the shoulder
straps out to loosen the harness ©.
B. From behind seat, remove the ends
of the two shoulder straps from the
metal junction plate O.
C. From front, pull straps through the
harness slots and then reinsert them
through the appropriate slots. Both
harness straps must be through the
same set of slots In the seat and pad.
D. From behind seat, push both shoulder
straps UNDER ribs and out the bottom O.
E. Depending on the size of your child, you
may need to adjust the harness straps,
crotch strap buckle or waist straps as
shown on pages 22-24 to get a snug fit for
your child. MAKE SURE that you use
the same sets of slots so that they are even.
Reassemble the strap ends onto the metal
junction plate O.
5. SAFETY CHECK:
a) CHECK that straps are not twisted In front
or back;
b) CHECK that straps are secure by pulling on
harness straps from the front of the seat.
©
Harness adjustment
button
Ribs
Metal junction
plate
21
