Ц Ц NOTE: Use a large piece of cardboard or a ground
cloth to protect the painted finish on the grill.
Ц Ц NOTE: The base pieces are assembled up-side-
down in this step.
Step
1
1-A
Center Base
Right Base
Left Base
(TN)
M6 x 15mm Screw
(8) Qty.
Hardware shown actual size
1-B
1-B. Fasten Casters tight against the Caster Brackets.
Front
TN
Non-
Locking
Casters
Locking
Casters
TN (x8)
Grill Label

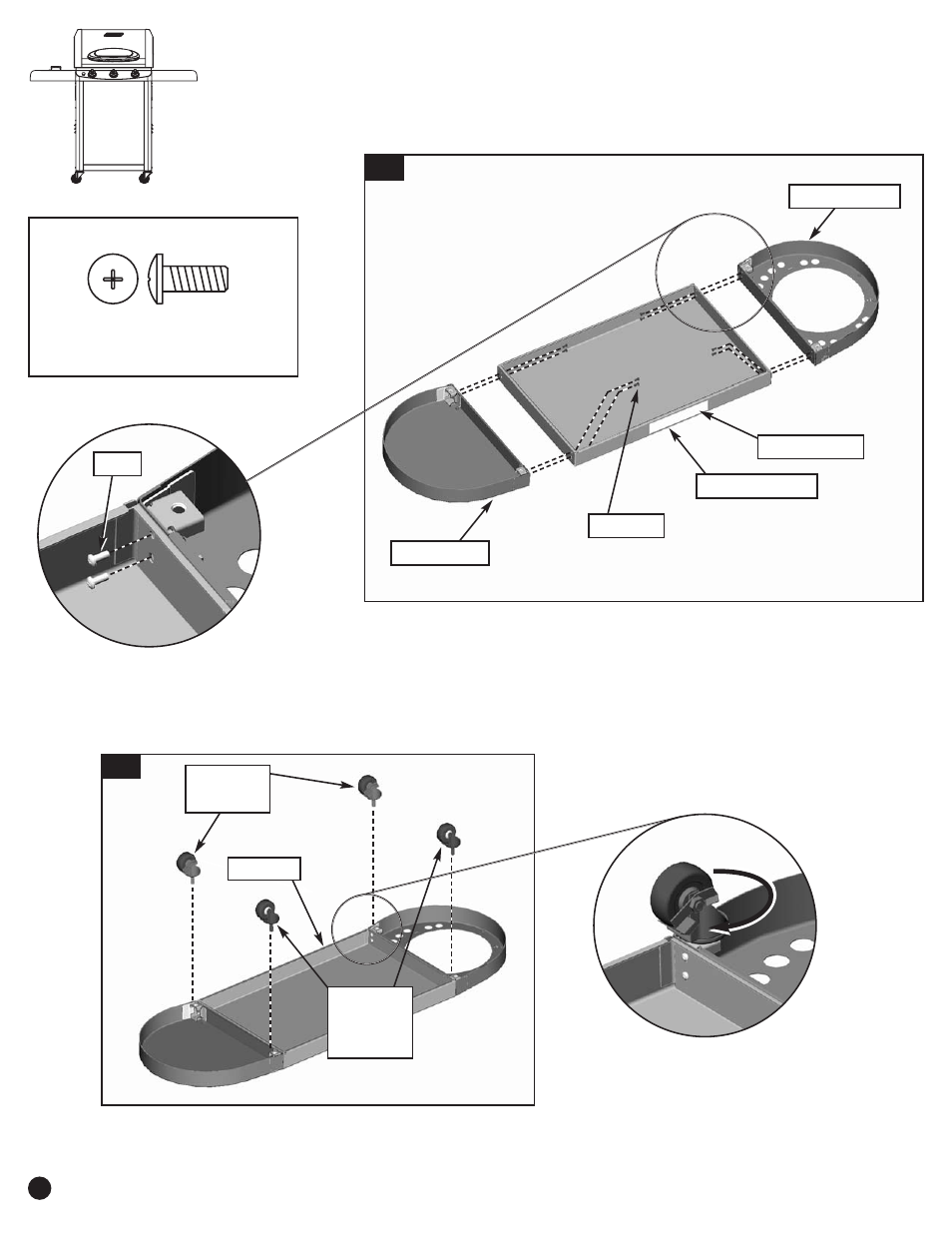

1-A. Arrange the three base pieces on the ground as shown.
Ц Ц Assemble the Right Base and the Left Base to the Center Base using two
screws (TN) in each corner.
Ц Ц Note: Arrange the Center Base so the Grill Label is positioned as shown.
Front
