Coleman 7700 LP Gas Series - Manual (Page 20)

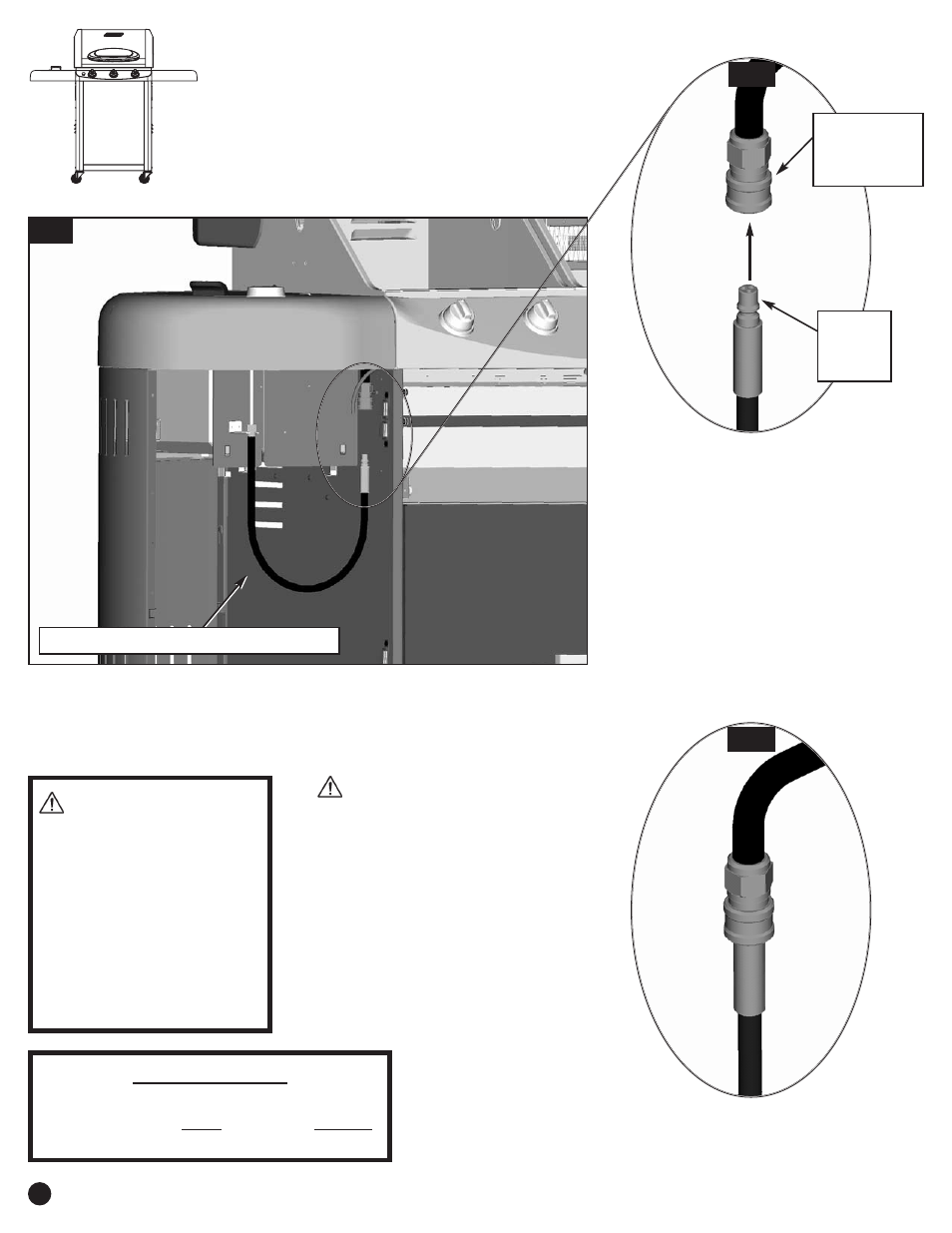

Ц Ц Assemble the Fuel Hose
Fitting from the Grill to the
Fryer Assembly.
Step
18
18-A
Fuel Hose from Fryer Assembly
18-A. Assemble the Fuel Hose Fitting from the Grill to the Fryer Assembly.
18-B. Retract the Collar on the
Quick Coupler before insert-
ing the Male Hose Fitting.
Ц Ц Fully insert the Male Hose
Fitting into the Quick
Coupler.
Ц Ц Release the Collar to lock
the connection.
Caution: For leak-check
procedure, read and follow
the steps identified on page
36. All connections made
by the consumer or installer
must be checked for leaks
after the grill is fully assem-
bled and before the grill is
used for the first time.
WARNING:
During assembly of grill
and when attaching or
replacing the L.P. gas
cylinder, insure that the
gas supply hose is free
of kinks and/or damage
and is at least 3” away
from hot surfaces such
as the grill casting.
18-C. Illustration of the Fuel Hose
Fittings properly attached.
18-B
Collar on
the Quick
Coupler
Male
Hose
Fitting
18-C
20
IMPORTANT!
T
O ENSURE PROPER GAS FLOW
,
BURNER
CONTROL VALVES MUST BE
“OFF”
BEFORE
OPENING THE GAS CYLINDER VALVE
.
