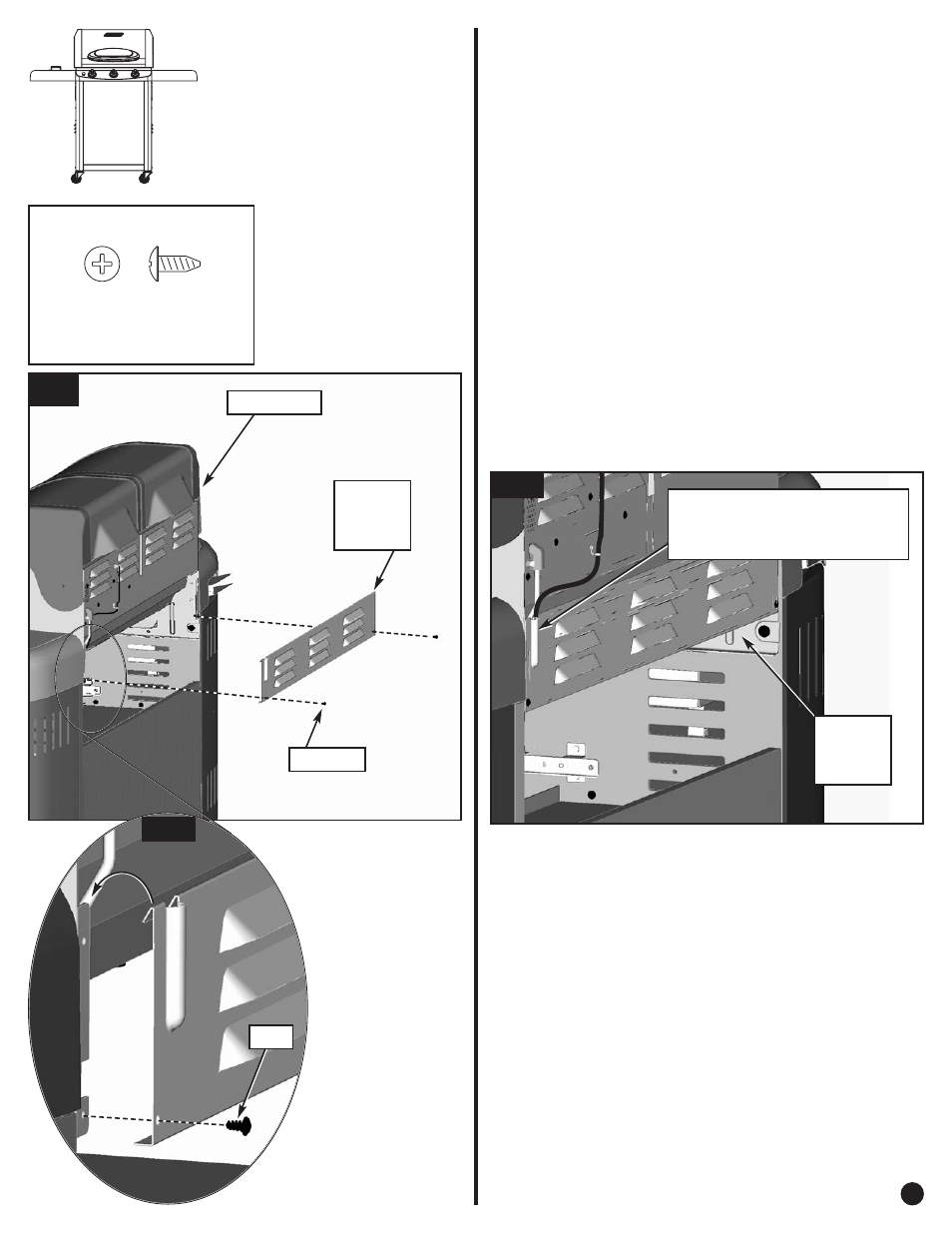

Ц Ц Fasten the Rear Trim Plate
to the Grill Cart.
Ц Ц NOTE: On some models,
the Rear Trim Plate is pre-
installed by the factory.
(VP)
Self Tapping Screw
(2) Qty.
Hardware shown actual size
23-A
23-A. Fasten the
Rear Trim
Plate to the
Firebox with
two Screws
(VP).
Ц Ц NOTE: Route
Electrode
Wire through
notch. Do not
pinch wire.
Ц Ц Tighten all
fasteners.
FIREBOX
VP (x2)
REAR
TRIM
PLATE
VP
Step
23
23-C
23-C. View showing Rear Trim Plate properly installed.
REAR
TRIM
PLATE
ROUTE ELECTRODE
WIRE THROUGH NOTCH
-DO NOT PINCH-
23-B
