Ц Ц Assemble one Rectangle
Spacer to the Grill Cart.
Ц Ц Assemble two small door
magnets to the Cart Base.
Step
4

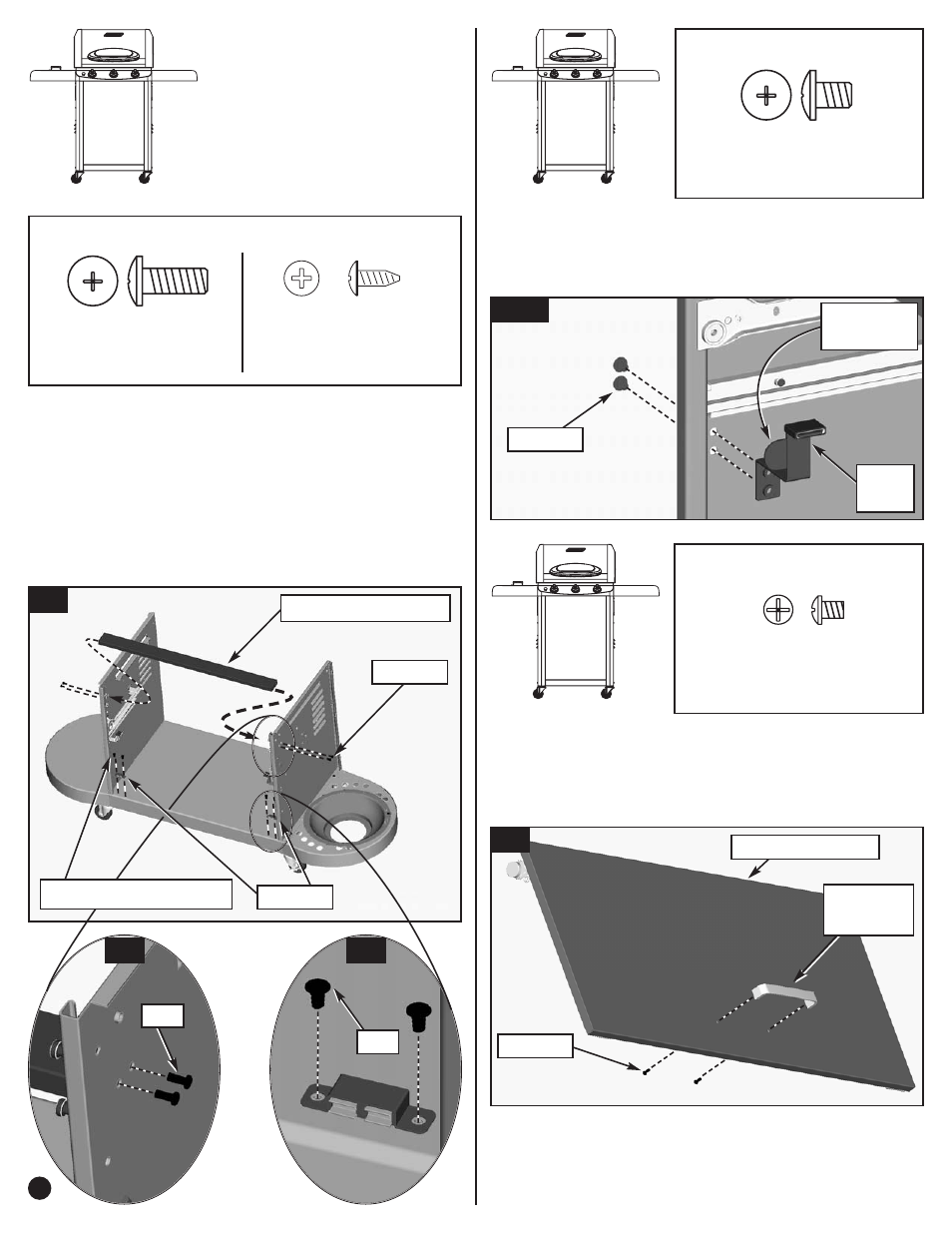

4-A. Assemble one Rectangle Spacer between the Left and
Right Panels using four Screws (TN). Assemble with the
flange pointing down.
Ц Ц Assemble two magnets to the Cart Base using two
Screws (VP) in each magnet.
Ц Ц Tighten all fasteners.
Hardware shown actual size
(TN)
M6 x 15mm Screw
(4) Qty.
4-A
Front
Rectangle Spacer
4-C 4-B
TN (x4)
VP (x2 each magnet)
TN
Step
6
Ц Ц Fasten one Door Handle to the Sliding Door.
Ц Ц NOTE: M4 x 5mm Screws are factory installed into the
Handle.
Hardware shown actual size
(EZ)
M4 X 5mm Screw
(2) Qty.
6-A. Fasten one Door Handle to the Sliding Door with two
Screws (EZ).
Ц Ц Tighten all fasteners.
6-A
DOOR
HANDLE
SLIDING DOOR
(VP)
Self Tapping Screw
(4) Qty.
VP
Magnet
EZ (x2)
Step
5
5-A. Fasten one Front Door Stop to the Left Panel and one
Front Door Stop to the Right Panel using two Screws
(JD) in each Door Stop.
5-A
Hardware shown actual size
(JD)
M6 x 8mm Screw
(4) Qty.
JD (x2)
Door
Stop
Note Tab
Location
