31-C
TN (x2)

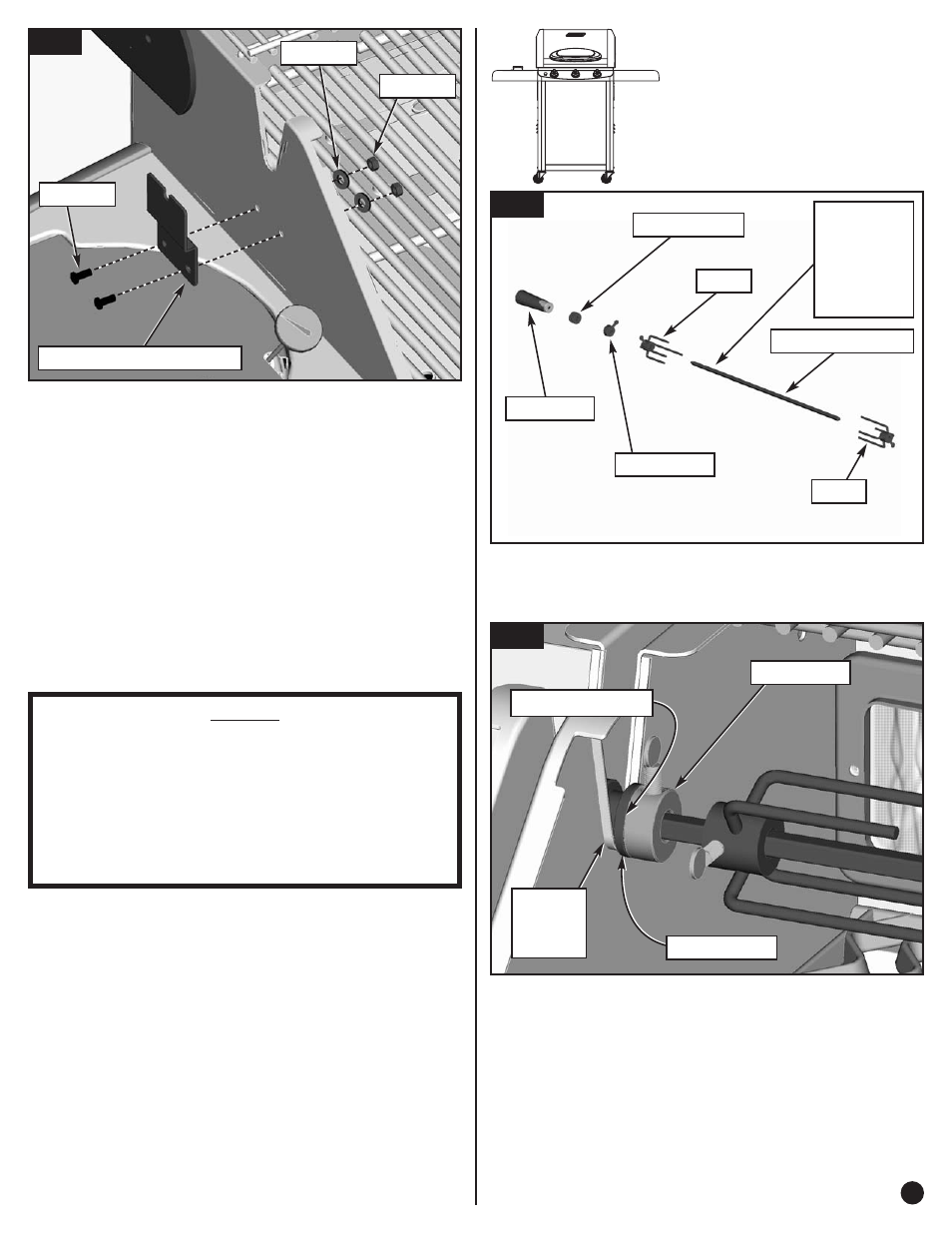

31-C. Attach the Left Support Bracket to the metal side panel
using two Screws (TN), two Flat Washers (DY) and two
Hex Nuts (UO).
Left Mount Bracket
NOTE
I
F YOU ARE INSTALLING THE
SHORT SPIT ROD
FOR USE ON THE RIGHT BURNER
,
PROCEED WITH
STEP 32.
I
F YOU ARE INSTALLING THE
LONG SPIT ROD
FOR
USE ON THE RIGHT BURNER AND LEFT BURNER
,
SKIP
TO
STEP 33.
32-A
Handle
Set Collar
Fork
Slip Collar
Fork
Short Spit Rod
NOTE:
Machined
Groove
Toward
Handle
32-A. Loosely assemble the Rotisserie parts as shown in
Figure 32-A. Do not tighten the thumbscrews until
properly positioned in the grill.
Ц Ц Install the Short Spit Rod into
the Firebox.
Step
32
32-B. Insert the Spit Rod into the Motor. Make sure
the machined groove is toward the handle.
Ц Ц Place Slip Collar on Firebox Wall. Make sure
the pointed tip of the Spit Rod stays in the
Motor.
Ц Ц Push Set Collar against the Slip Collar, provide
a small gap to allow the Spit Rod to freely turn.
Ц Ц Tighten the thumbscrews on the Set Collar
and the Forks to hold in place.
32-B
Set Collar
Slip Collar
Center
Firebox
Wall
Small Gap here
31
UO (x2)
DY (x2)
