Ц Ц Assemble Left Fryer
Assembly to the Grill
(continued).
Step
17
17-A
17-B
View of Grill from Rear
17-C
17-D

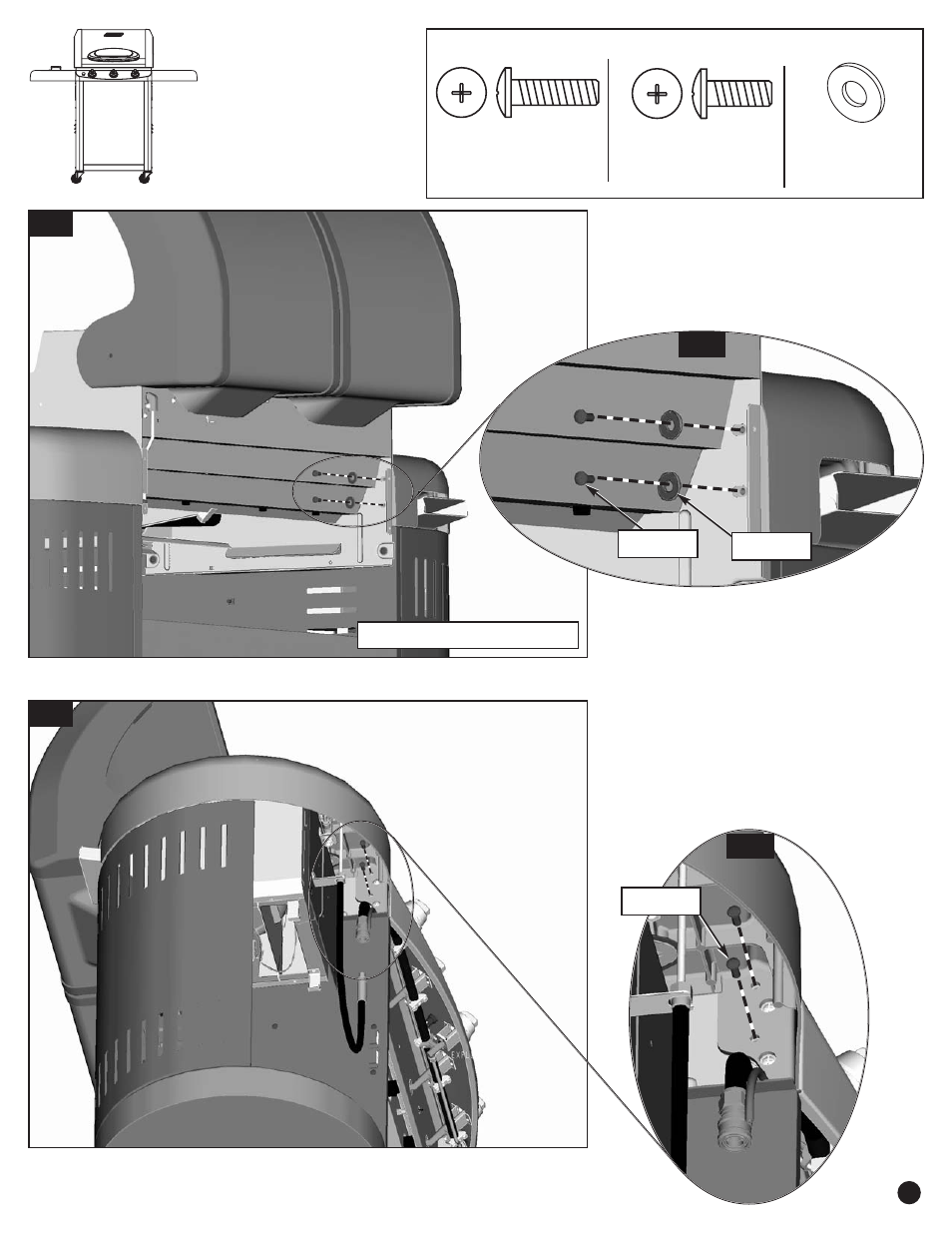

17-A. LOOSELY assemble two additional
Screws (TN) and two Flatwashers
(DY) through the Firebox into the Left
Fryer Assembly at the rear of the
grill.
17-C. Assemble two additional Screws (CS)
through the Left Fryer Assembly into
the Firebox at the front of the grill.
Ц Ц Tighten all fasteners.
CX (x2)
Hardware shown actual size
(TN)
M6 x 15mm Screw
(2) Qty.
(DY)
M6 Flat Washer
(2) Qty.
DY (x2) TN (x2)
(CX)
M6 x 20mm Screw
(2) Qty.
