Coleman 7700 LP Gas Series - Manual (Page 26)

24-A
Hardware shown actual size
(XR)
M5 x 15mm Flat Head Screw
(8) Qty.
Ц Ц Fasten both Left and Right
Doors to the Grill Cart.
Ц Ц Attach the Tool Hook to the
Right Door.

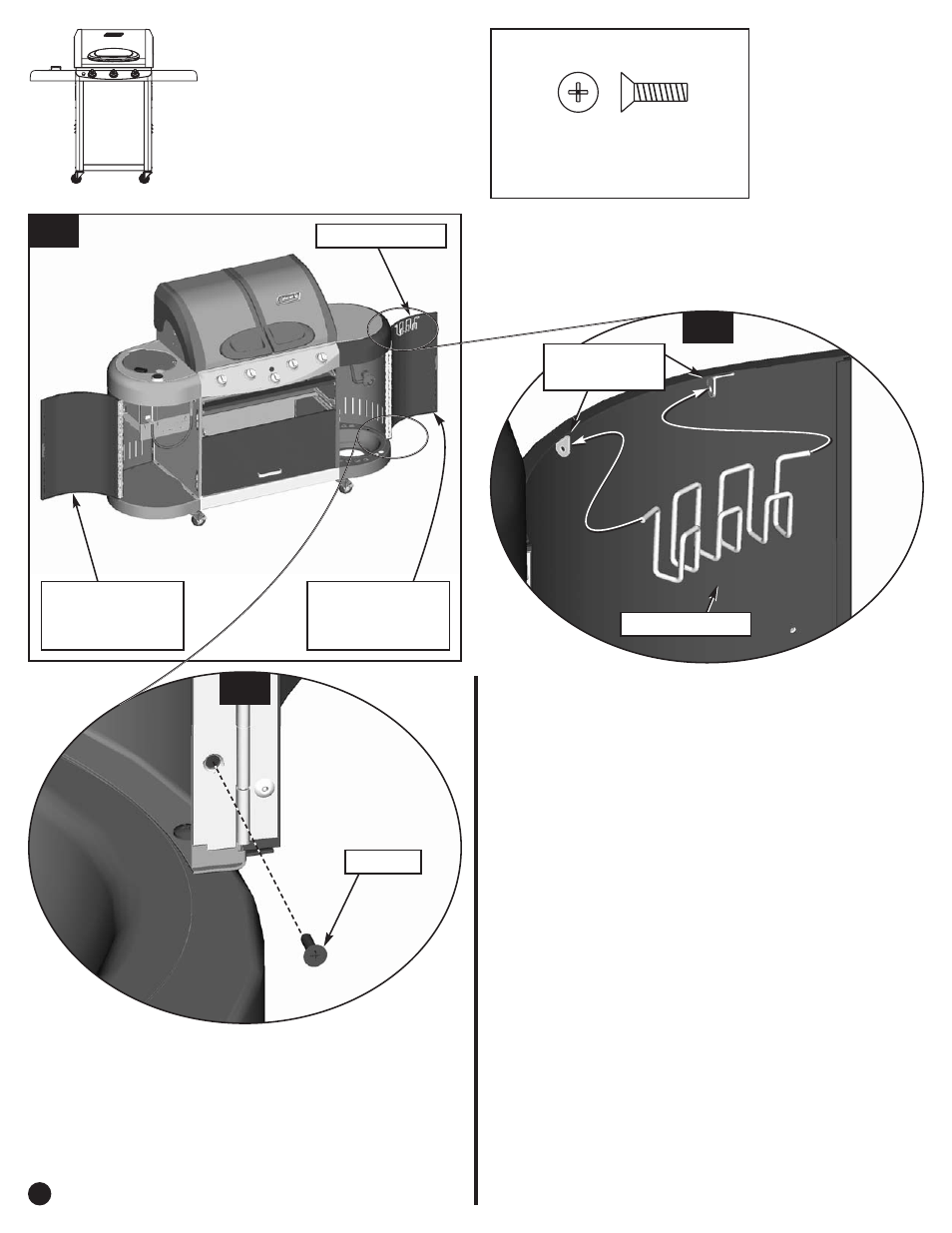

24-B. Fasten the Right Door to the Grill Cart with four Flat
Head Screws (XR).
Ц Ц NOTE: Right Door has Tool Hook Brackets. Left Door
does not have Tool Hook Brackets.
Ц Ц Repeat Step 24-B to attach the Left Door.
Ц Ц Tighten all fasteners.
24-C
Step
24
24-B
TOOL HOOK
TOOL HOOK
XR (x4)
24-C. Squeeze the Tool Hook to slip into the mounting
brackets.
26
RIGHT DOOR
(with Tool
Hook Brackets)
LEFT DOOR
(without Tool
Hook Brackets)
TOOL HOOK
Brackets
