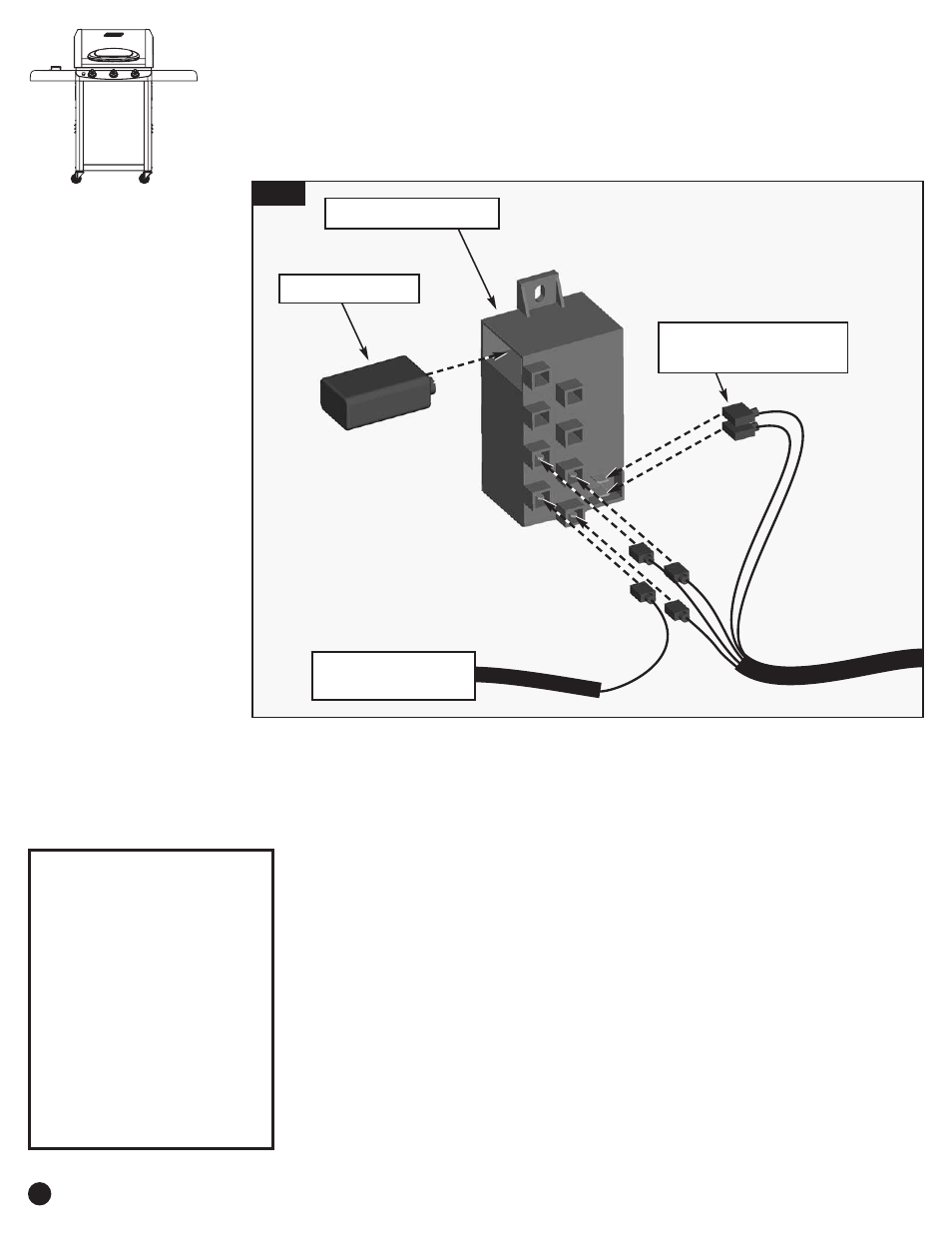

Ц Ц Assemble the Electrode
Wires and the Battery to
the Electrode Module.
Step
22
22-A
Electrode Module
Igniter Button Wires
(Note: Large Tabs)
9-Volt Battery
T
EST THE
I
GNITER
:
A SPARK SHOULD APPEAR AT
ELECTRODE TIP
.
I
F THE SPARK DOES NOT
APPEAR
:
-C
HECK THE WIRE
CONNECTIONS TO THE
MODULE
.
-C
HECK PROPER
ASSEMBLY OF FRESH
9-V
OLT BATTERY
.
Back Burner
Electrode Wire
22-A. Firmly push the Electrode Wires into the Electrode Module.
Ц Ц Assemble the 9-Volt Battery to the Electrode Module.
Ц Ц NOTE: The polarity is marked on the Electrode Module.
