Ц Ц Assemble Fryer Heat
Shield.
Step
20
20-A

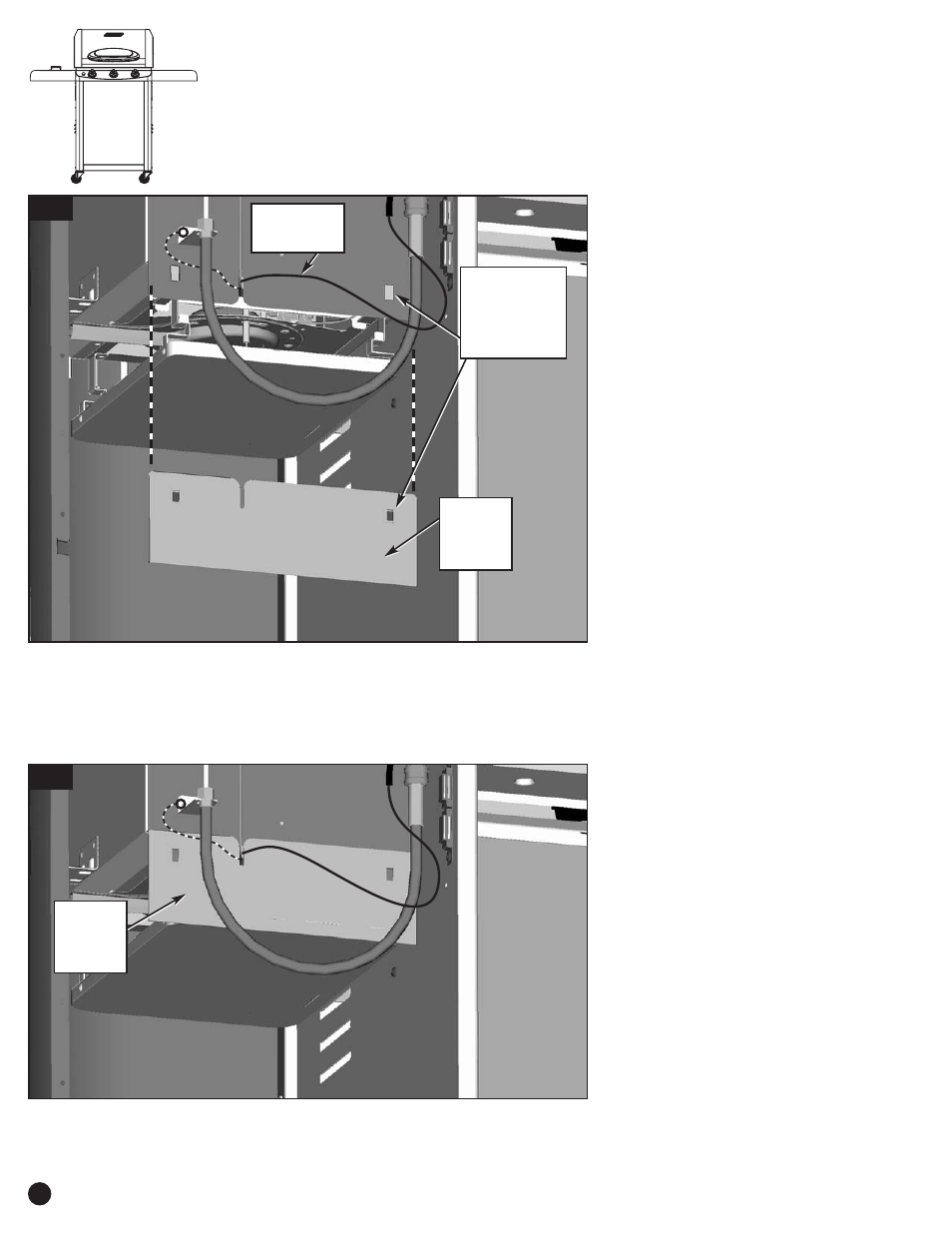

20-A. Assemble Fryer Heat Shield.
Ц Ц NOTE: Place the Fryer Heat Shield between the Fryer Panel and the Flexible Fuel
Hose. Do not pinch Electrode Wires.
Ц Ц Engage the two tabs on the Heat Shield downward into the rectangle holes.
20-B
20-B. View showing the Fryer Heat Shield properly installed.
Fryer
Heat
Shield
22
Engage
Tabs into
Rectangle
Holes
Fryer
Heat
Shield
Electrode
Wire
