32

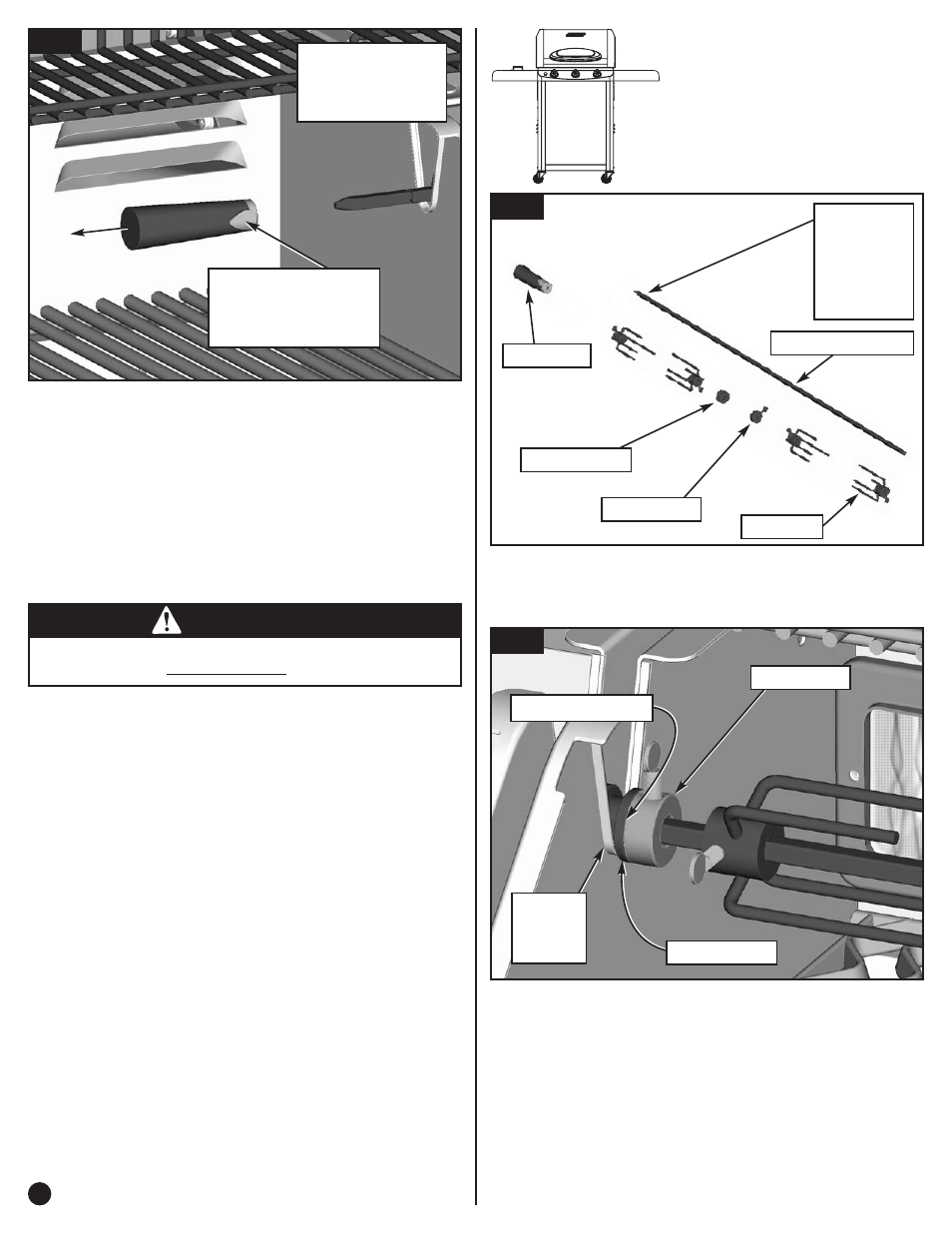

32-C
Push Button to
Remove
Rotisserie Handle
32-C. When using the SHORT SPIT ROD, remove Handle
immediately after placing Rotisserie into the Firebox.
Since the handle is inside the Firebox, damage will occur
if the Handle is not removed prior to cooking.
CAUTION
• DO NOT OPERATE THE GRILL WITH THE ROTISSERIE
HANDLE ON THE SHORT SPIT ROD.
Follow this step
with Short Spit
Rod only!
Ц Ц Install the Long Spit Rod into
the Firebox.
Step
33
33-A
Handle
Set Collar
Fork(x4)
Long Spit Rod
NOTE:
Machined
Groove
Toward
Handle
Slip Collar
33-A. Loosely assemble the Rotisserie parts as shown in
Figure 33-A. Do not tighten the thumbscrews until
properly positioned in the grill.
33-B. Insert the Spit Rod into the Motor. Make sure
the machined groove is toward the handle.
Ц Ц Place Slip Collar on Firebox Wall. Make sure
the pointed tip of the Spit Rod stays in the
Motor.
Ц Ц Push Set Collar against the Slip Collar, provide
a small gap to allow the Spit Rod to freely turn.
Ц Ц Tighten the thumbscrews on the Set Collar
and the Forks to hold in place.
33-B
Set Collar
Slip Collar
Center
Firebox
Wall
Small Gap here
