21

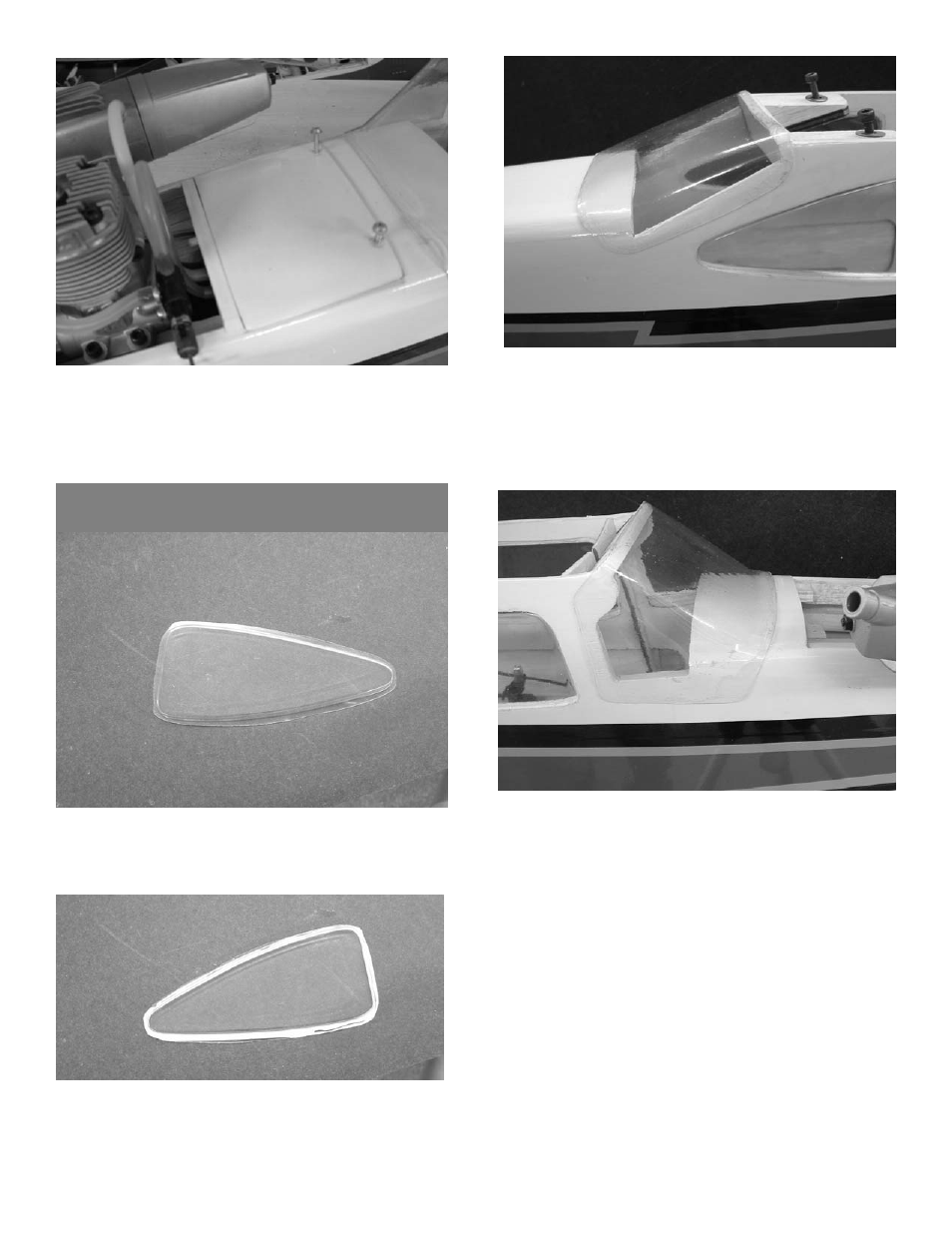

2. Fit the hatch in place with the dowels in front
and secure using two 2mm screws at the
rear.
WINDSHIELD& WINDOW INSTALLATION
1. Trim the side windows leaving a 1/8” flange
all around.
2. Apply a bead of Zap canopy glue around the
1/8” flange and push the window into place
from the inside of the cockpit area. Hold with
tape till dry.
3. Trim the rear window to fit flush with the rear
of the wing saddle and overhanging the
sides 1/4” to 3/8”. Glue in place using
canopy glue and masking tape to hold in
place till the glue dries.
4. Trim the windshield to fit flush with the front
of the wing saddle and overhanging the post
1/4”. Glue in place with canopy glue and
masking tape.
