19

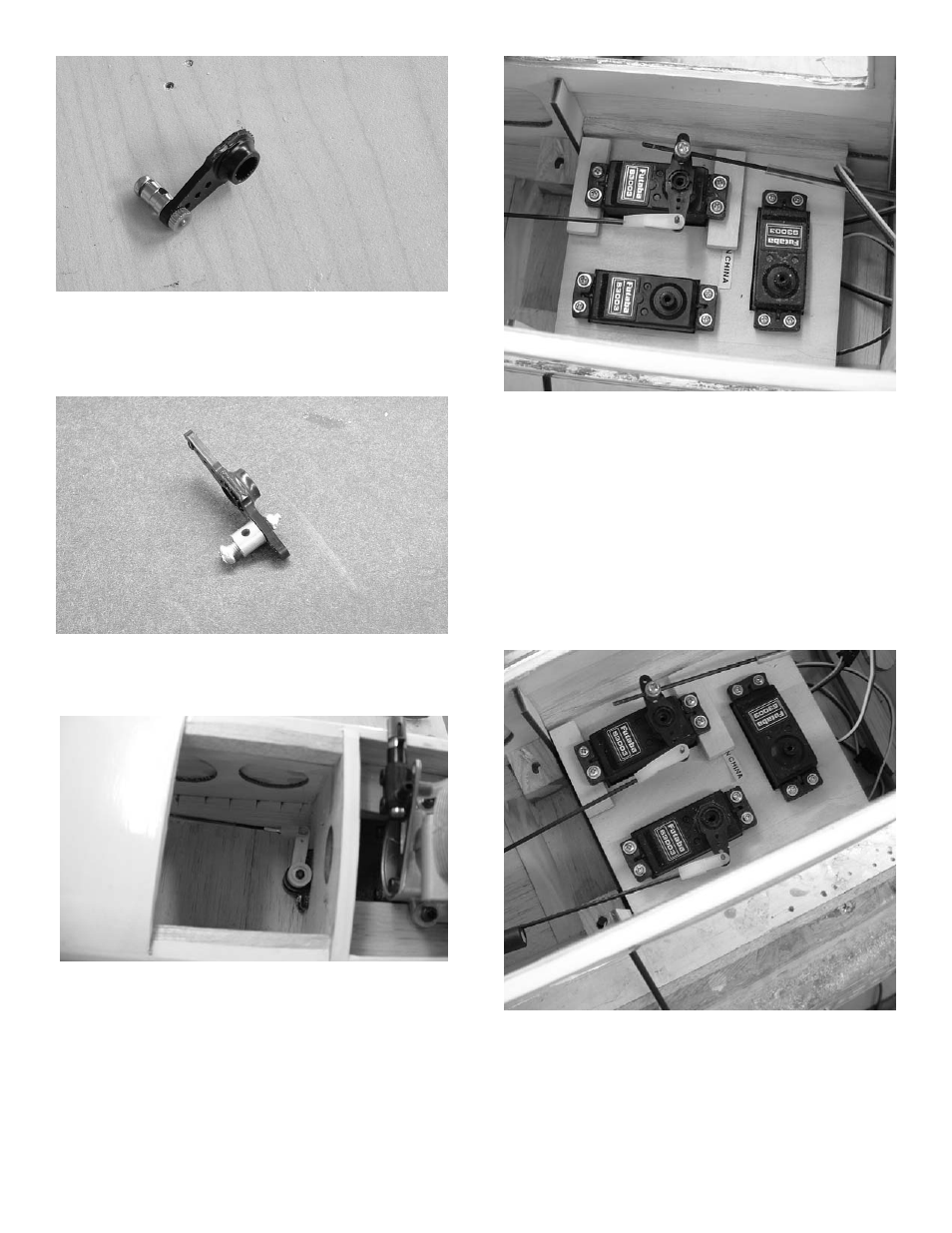

3. Attach one of the pushrod connectors to the
throttle servo arm.
4. Connect the other pushrod connector to the
inner hole on a double output servo arm.
5. Connect one of the2mm x 30cm pushrod
with a clevis and silicone keeper to the nose
gear steering arm. Install one of the 5mm
nylon tubes on the rod.
5. Attach the rudder output arm to the servo
and center the servo with the radio. Make
sure the rudder is centered and mark the
pushrod and bend at a 90 degree angle as
we did with the ailerons Attach to the output
arm with one of the swing in keepers.
Insert the nose gear steering rod into the
servo connector on the rudder servo, and
adjust the nose wheel till straight. Tighten
the set screw.
6. Center the elevator servo with the radio and
attach an output arm. Center the elevator
and mark the point where the pushrod
crosses the output arm and bend at a 90
degree angle. Cut off at 3/8” and attach to
the output arm using one of the nylon swing
in keepers.
