15

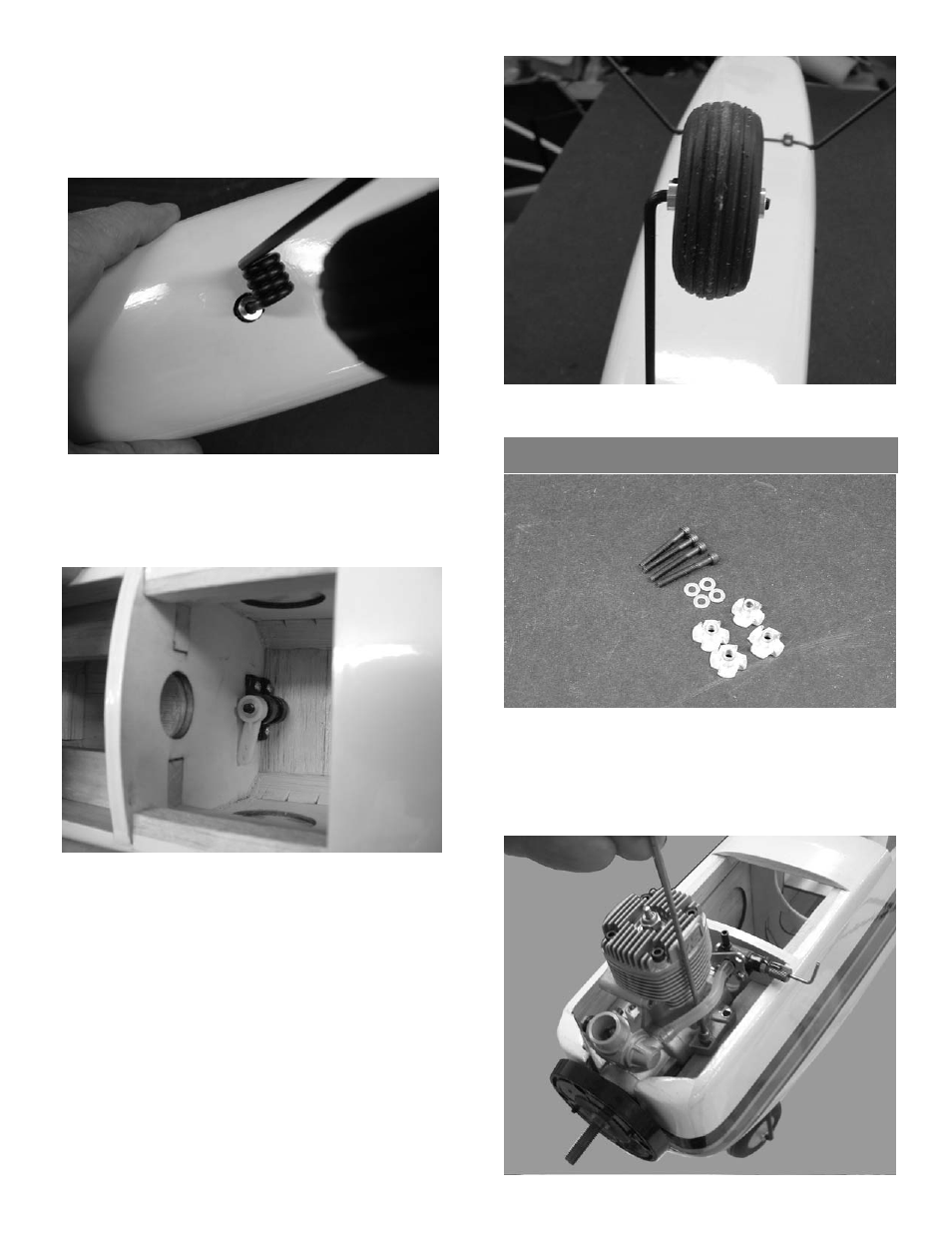

ENGINE INSTALLATION

1.

In addition to the engine collect the follow-

ing items:

(4) 4mm blind nut

(4) 4mm x 30mm" socket head bolt

(4) 4mm flat washers

5.

Install a wheel collar on the nose gear and

insert into the hole in the bottom of the fuse-

lage. Adjust the wheel collar so the gear

wire is flush with the top of the steering arm

inside the fuselage

6.

Install the steering arm with the set screw on

the side next to the firewall. This means you

will have to rotate the nose gear 180

degrees, tighten the set screw, then rotate

the nose gear back into position.This is

done to give you more throw on the steering

arm before it hits the firewall. Position the

steering arm to give you enough throw and

tighten the set screw.

4.

Install a wheel collar on the axle followed by

the wheel, then the other wheel collar. File a

flat spot on the axle where the outer wheel

collar set screw fit to make sure it does not

come off.

7.

Install the nose wheel with a wheel collar on

both sides
