PROGRAMMING

USER SETTINGS

cont.

Programming Instructions–7 DAY, Residential Mode (continued)
2. If you wish to program each day individually, press the DAY/TIME button to select each day.
3. Press the or button to change the time to the desired hour in one hour increments. Press the PROG button.
The minute portion of the set point time will begin flashing.
4. Press the or button to change the time to the desired minute in 10-minute increments. Press the PROG
button. The SET temperature will begin flashing.
5. Press the or button to change the set point temperature to the desired setting in 1˚ F increments
(0.5˚ C). Press the

PROG button. The FAN mode will begin flashing.

NOTE:

The fan option is not available or displayed if the Fan LOCK was enabled during Installer Setup (see section 4 of the

Installer Guide).

6. Press the or button to select AUTO or ON. Changing the FAN mode to ON will cause the fan to run during
the entire programmed time period. Press the

PROG button. The thermostat will now display the DAY set

point time and temperature. You will see the hour portion of the set point time and the

AM/PM indicator

will be flashing.
7. Follow steps 3 through 6 to set the set point times and temperatures and fan mode for the DAY, EVE and

NIGHT for the HEAT mode.

8. Press the SYSTEM button to select COOL to set cooling times and temperatures. The display will show COOL.
Follow steps 3 through 7 to set the set point times and temperatures and fan mode for the

COOL mode.

NOTE:

Press the SYSTEM button to select COOL to set program.

9. Press the RETURN button to return to the normal mode, or wait 30 seconds for the thermostat to
return automatically.

PROGRAMMING

USER SETTINGS

Entering Your Program–7 DAY, Commercial Mode
1. Press the PROG button to enter the Program setting mode.
Press the

SYSTEM button to select HEAT to set heating times

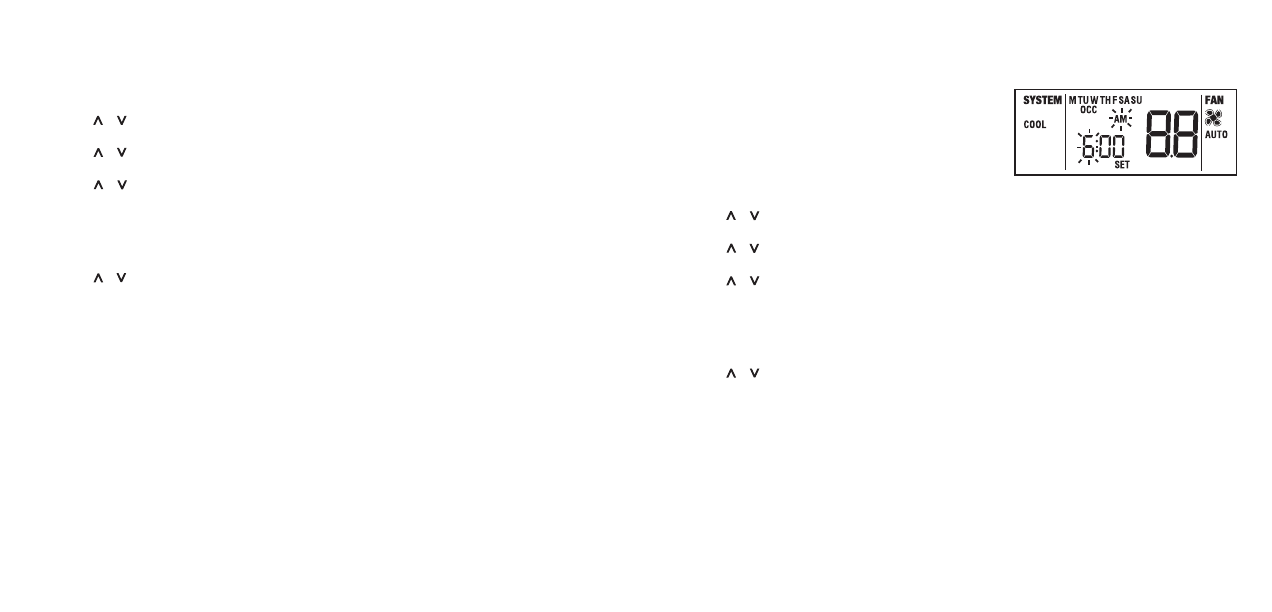

and temperatures. OCC (occupied) set point of the “Whole Week”
will be displayed. The display will show

M, TU, W, TH, F, SA, SU to

indicate the whole week is being programmed. The hour portion
of the set point time and the

AM/PM indicator will be flashing.

2. If you wish to program each day individually press the DAY/TIME button to select each day.
3. Press the or button to change the time to the desired hour in one hour increments. Press the PROG button.
The minute portion of the set point time will begin flashing.
4. Press the or button to change the time to the desired minute in 10-minute increments. Press the PROG

button. The

SET temperature will begin flashing.

5. Press the or button to change the set point temperature to the desired setting in 1º F increments (0.5º C).
Press the

PROG button.The FAN mode will begin flashing.

NOTE:

The fan option is not available or displayed if the Fan LOCK was enabled during Installer Setup. (see the

Installer Guide).

6. Press the or button to select AUTO or ON. Press the PROG button. The thermostat will now display the
DAY set point time and temperature. Again, you will see the hour portion of the set point time and the AM/PM
indicator will be flashing.
7. Follow steps 3 through 6 to set the set point times and temperatures and fan mode for UNOCC (unoccupied) for
the

HEAT mode.

COOL mode.

9. Press the RETURN button to return to the normal mode, or wait 30 seconds for the thermostat to
return automatically.
