Braeburn 5200 - Manual (Page 11)

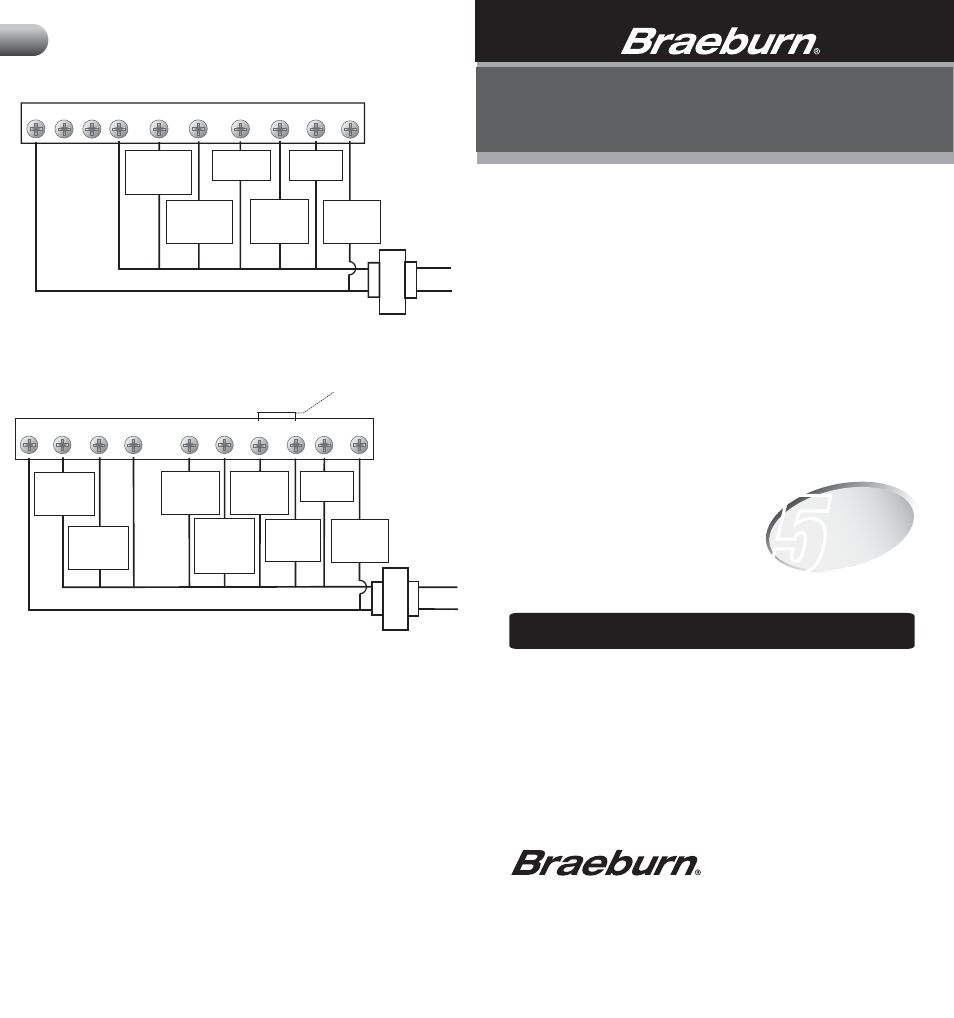

Wiring Diagrams 11
R Y1 Y2 W2 G O B C E/W1
Conventional Systems
(See NOTE 1)
Transformer Common Required
1st Stage
Compressor
Contact
2nd Stage
Compressor
Contact
Auxiliary
Heat Relay
(Stage 2)
Fan Relay
1st Stage
Heat Relay
Neutral
120 VAC
Hot
24 VAC
R Y1 Y2 W2 E/W1 G O B L C
Changeover
Relay-Cool
(See NOTE 4)
24 VAC
Neutral
120 VAC
Hot
Transformer Common Required (See NOTE 1)
Heat Pump Systems
L
System
Monitor (if
equipped)
Changeover
Relay-Heat
(See NOTE 4)
1st Stage
Compressor
Contact
2nd Stage
Compressor
Contact
(See NOTE 3)
Emergency
Heat Relay
(if equipped)
Auxiliary
Heat Relay
(stage 2)
System
Monitor (if
equipped)
Fan Relay
See
NOTE 2
NOTE:
1. Transformer Common connection not required for battery-only operation of
thermostat. 2. Eliminate connection to Y2 for units with single stage cooling.
NOTE:
1. Transformer Common connection not required for battery-only operation of
thermostat. 2. User installed jumper is required to use auxiliary heat for both second stage
and emergency heat on units without separate emergency heat and auxiliary terminals.
DO NOT install jumper if both terminals are present. 3. Eliminate connection to Y2 for
units with single stage cooling. 4. For units requiring reversing valve to be energized
during heating, connect reversing valve to B terminal. For units requiring reversing valve
to be energized during cooling, connect reversing valve to O terminal.
