VX Matrix Switching System—User Manual
4
1.0 Matrix System Overview
1.0.1 VX Matrix System
The VX Matrix switcher is a high performance switching equipment for video frequency. It
is used for input/output cross switching of multi-video frequency signals. It provides separate
video jacks for separate transmission of each video frequency component signal, thereby
minimizing signal attenuation and ensuring high definition graphics output.
The VX Matrix is used mainly in TV broadcasting projects, multi-media conference halls,
large display projects, TV teaching and command control centers. It boasts features of power
interruption protection during power surge and LCD display. Its RS-232 and RS-485
communication ports enable convenient communication with remote control equipment. This
manual describes using of the VX-2088 model. Refer to VX-2088 User Manual for using of
other models of matrix systems.

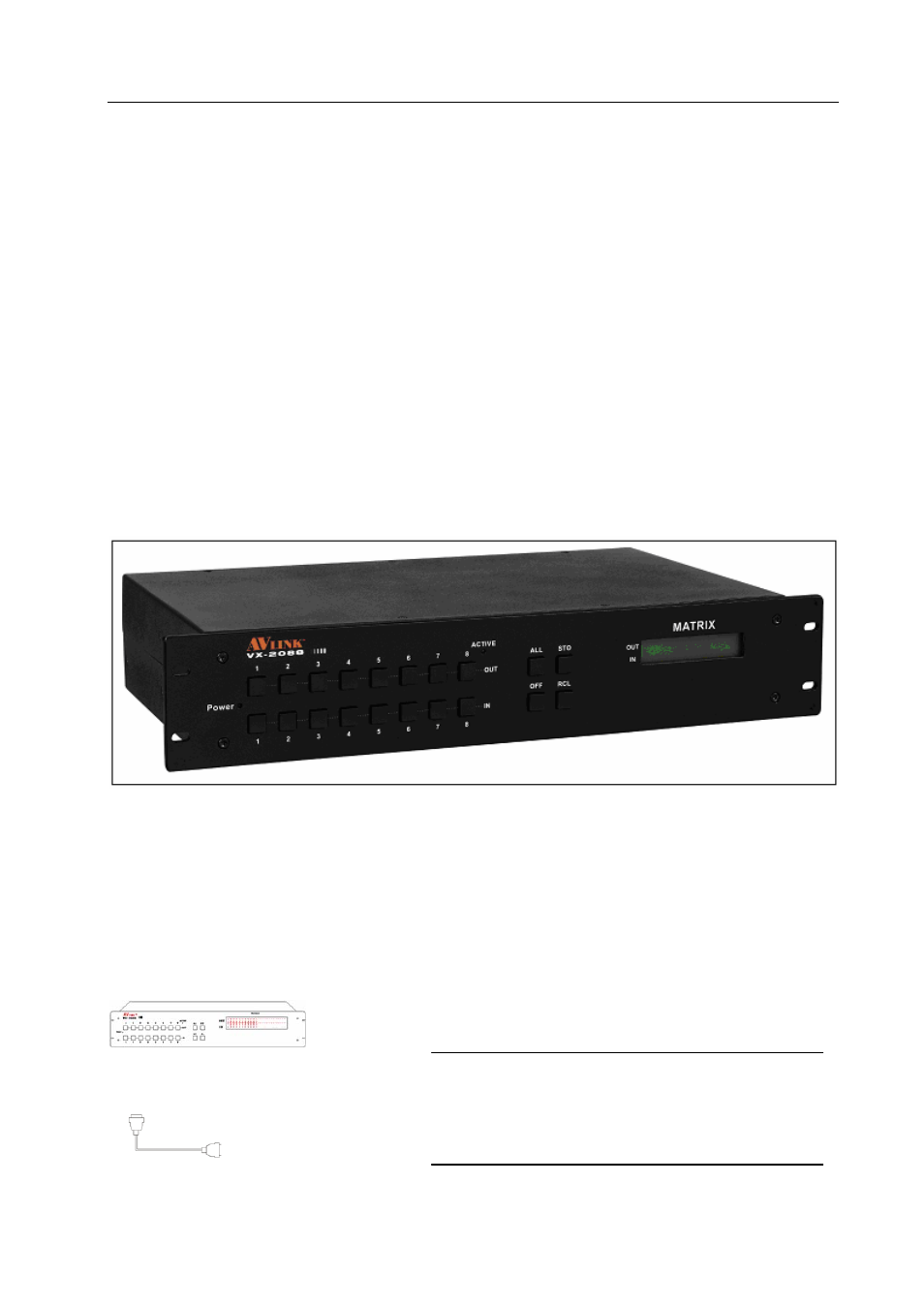

Figure 1-1 VX-2088 Matrix
1.0.2 VX Matrix System Packing
VX Matrix Host
RS-232 Communication Connecting Cable
