VX Matrix Switching System—User Manual
18

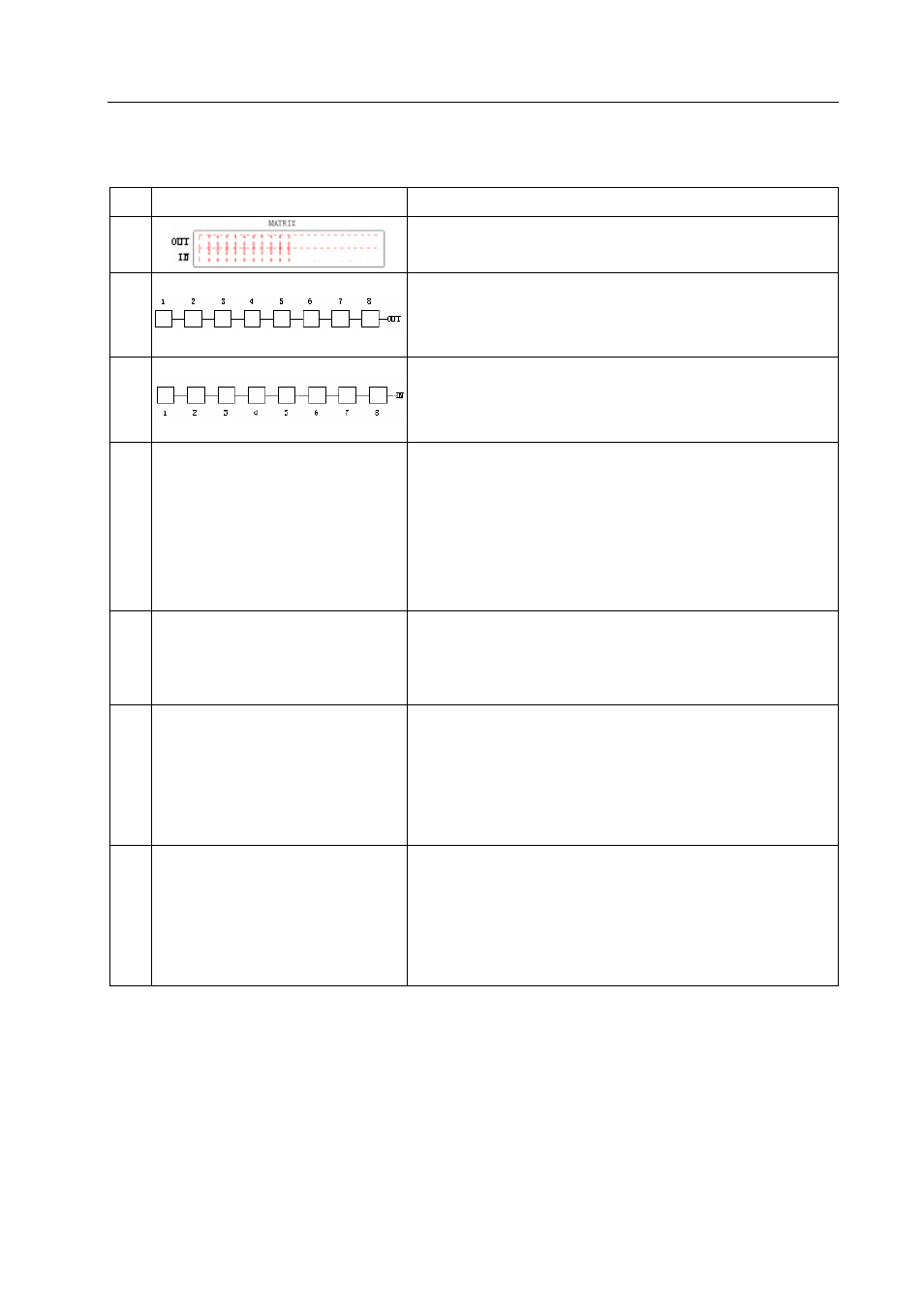

6.0.2 Front Panel Key Functions
Part Function Key Functions
1
LCD display shows current VX matrix status and
operation hints.
2
Output channel selection keys used for setting video
output channels or for selection of Status Retrieve or
Stored Number.
3
Input channel selection keys used for setting video input
channels or for selection of Status Retrieve or Stored
Number.
4 ALL
Implement all output selection keys via certain input
route.
---Example: First press the “ALL” key, then select the
input channel to output to all output channels; first press
the “ALL”key, then press the “OFF” key to close all the
presently displayed swtitching status.
5 OFF
Close output channel key.
---First press to close the output channels, then press the
“OFF” key to close the specified output channel.
6 STO
The “Store Key” saves all current input/output
corresponding relations.
---Example: Press the “STO”key, then press the output
channel key which you want to save all currently
displayed input/output corresponding relations.
7 RCL
The “Retrieve Key” retrieves the saved input/output
corresponding relations.
---Example: First press the “RCL” key, then press the
previously saved output channel key to retrieve the saved
input/output status and implement this status switching.
