VX Matrix Switching System—User Manual
21

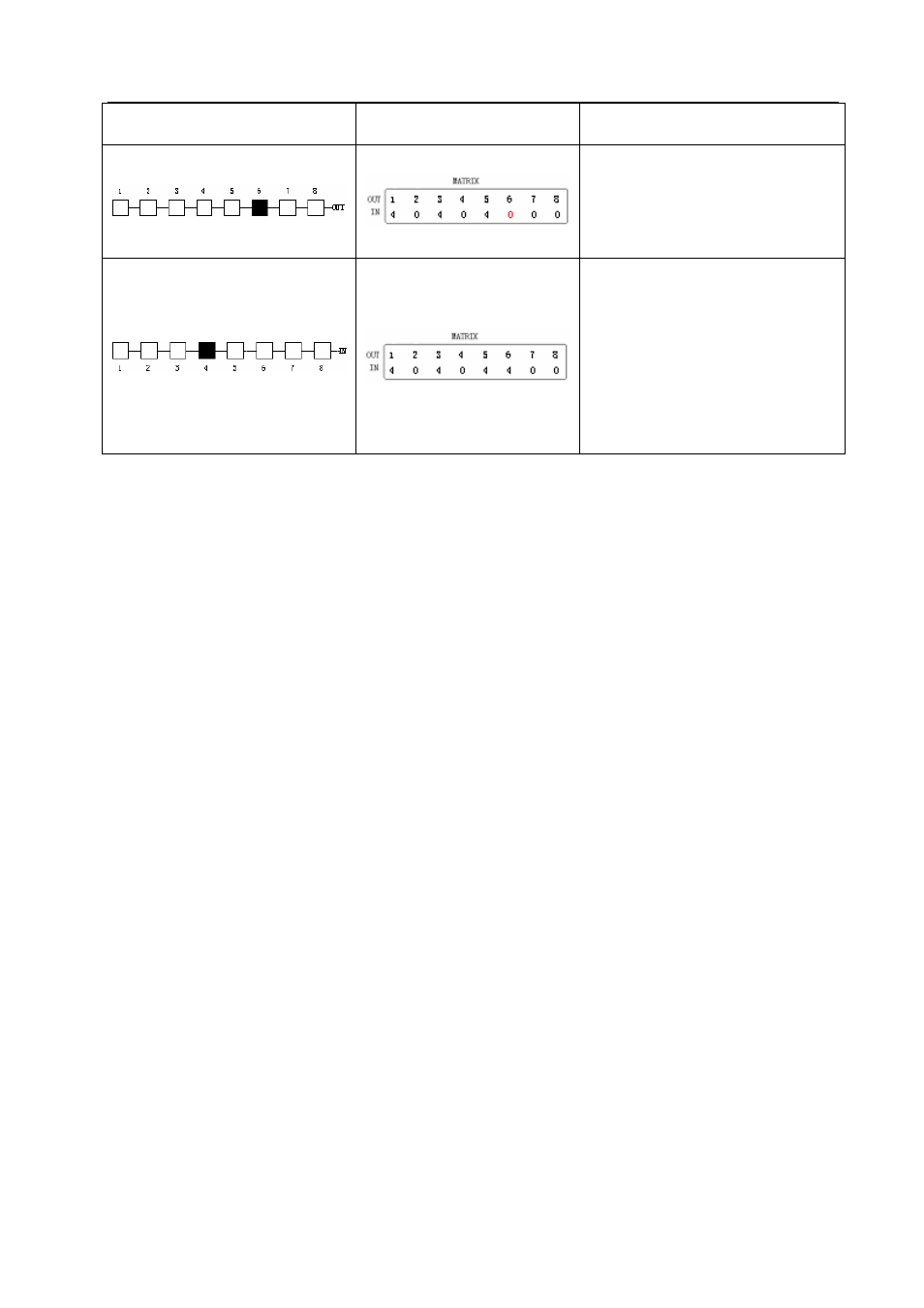

Key LCD Display
Operation
7. Press the NO.6 key of the
output channel for 2 seconds and
enter the input channel when the
red 0 on LCD flickers.
8. Press the NO.4 key of the
input channel for 2 seconds to
select the operation of input from
NO.4 channel and output from
NO.1, 3, 5 and 6 channels. IN
row shows “4” at NO.1,3, 5 and
6 channels on LCD.
7.0 Matrix Application Software
7.0.1 Software Introduction
The 《AV Matrix》 Matrix control software applies to different input/output matrixes.
7.0.1.1 Software Description
The《AV Matrix》 matrix testing software is an application tool developed for matrix testing
and application. The software operation environment is as follows:
Window98/2000/NT/XP operatng systems
32M interal memory or above
10M hard disk space or above
CD-ROM
At least one serial communicatin port
7.0.1.2 Software Activation
First, you must turn off power both to the VX matrix and to the computer. Then, connect the
matrix RS-232 port to the PC RS-232 port using the bundled communication cable. (Refer to the
previous section “VX Matrix and Control Computer Connection.”;
Turn on power to the VX matrix and the computer:
Activate the AV Matrix.exe on the bundled CD-ROM in the control computer to enter the
control software interface.
7.0.2 Software Features
The software controls signal connection between the corresponding input port and output port
as required. The main operation window is shown in Figure 7-1 below:
