VX Matrix Switching System—User Manual
15
5.0.3.4 VX Matrix System and Control System Connection

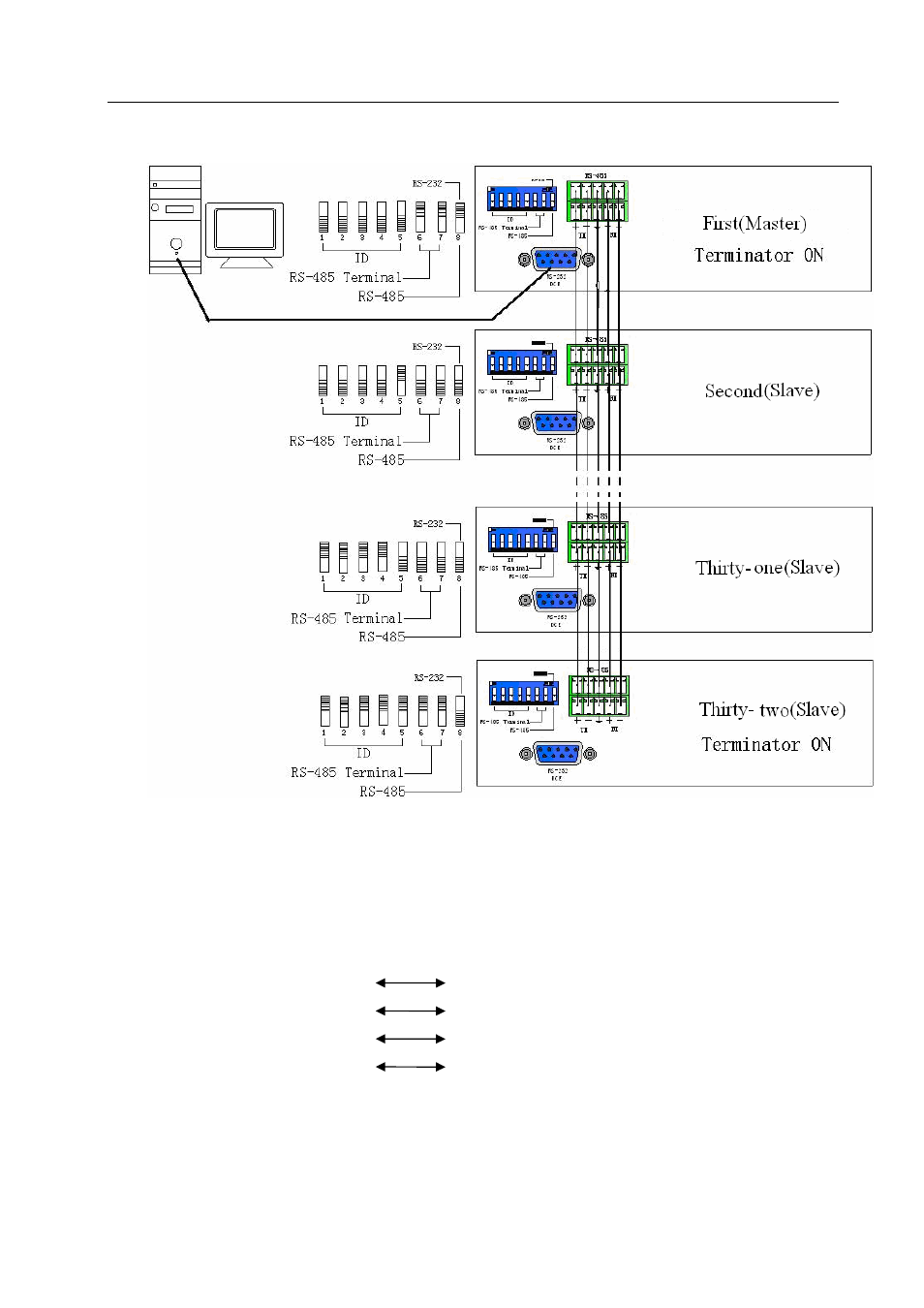

A. If PC provides RS-232，connection is as in Figure 5-9 below:
Figure 5-9
NOTE: 1. For RS-232 connection refer to previous Figure for operation；
2. RS-232 and RS-485 baud rates: 9600bps, no odd or even calibration address, 8bit data
transmission address, 1bit stop address（96,N,8,1）
；
3. Serial connection between Matrix RS-485 as follows:
TX（+） TX（+）
TX（-） TX（-）
RX（+） RX（+）
RX（-） RX（-）
4. Each DIP sw1-5 address must not set to same ID address.
