VX Matrix Switching System—User Manual
19
6.0.3 Operation Examples
Examle 1: Synchronously switch the NO. 1 video signals to the NO. 3 and 4 output
channels.

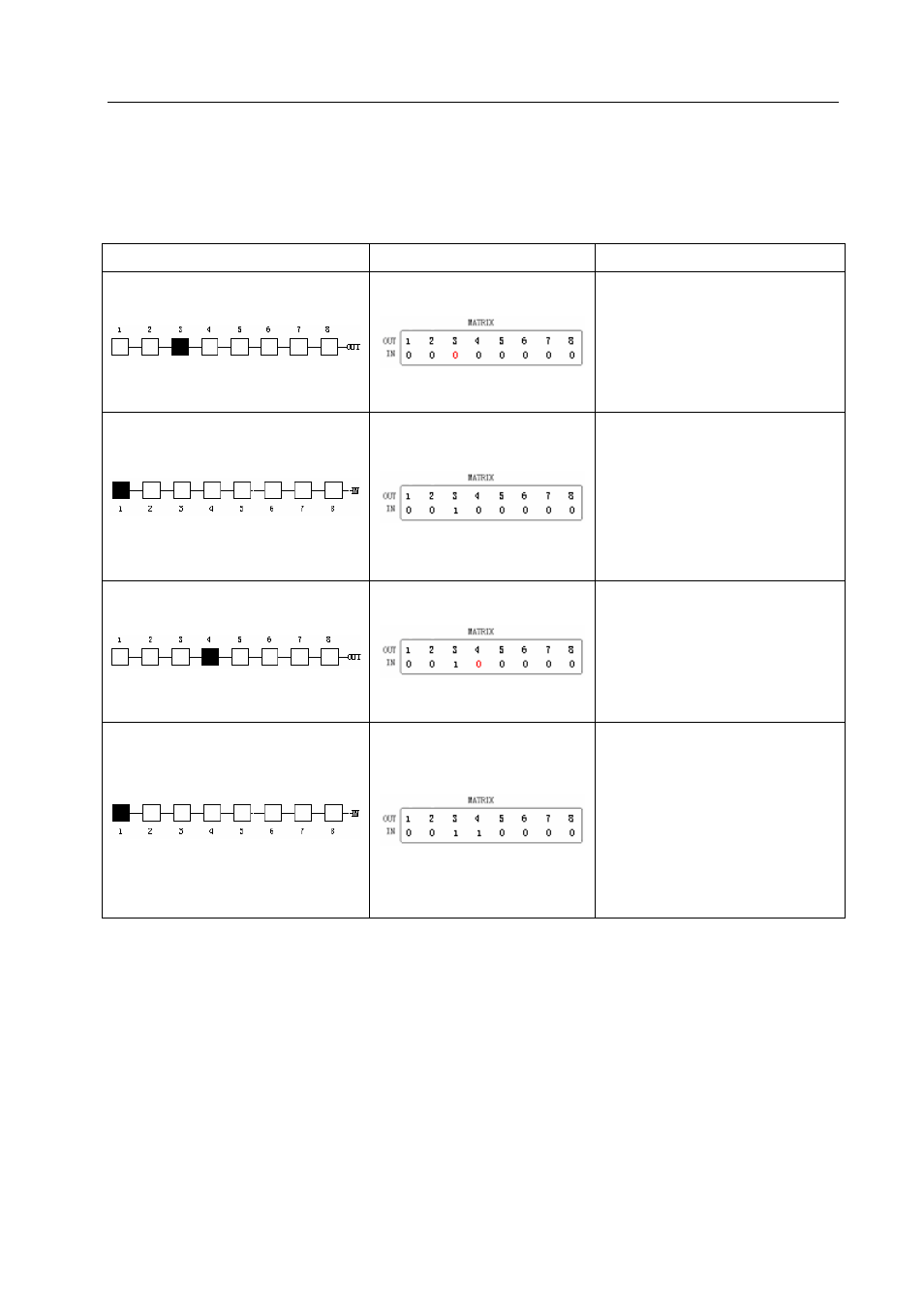

Key LCD Display Operation
1. Press the NO. 3 key of the
output channel for 2 seconds,
then enter the input channel
when the red 0 on LCD begins
to flicker.
2.Press the NO.1 key of the
Input channel for 2 seconds for
selection of NO.1 channel for
input into NO.3 channel
for output. The LCD shows 1
at channel NO.3 of IN row.
3. Press the NO.4 key of the
output channel for 2 seconds
and then enter the input
channel when the red 0 on
LCD flickers.
4.Press the NO.1 key of the
input channel for 2 seconds for
selection of NO.1 channel for
input and NO.3 and NO.4
channels for output. NO.3 and
NO.4 channels on LCD show
“1”at IN row.
